Home
>>
Ford
>>
1994
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

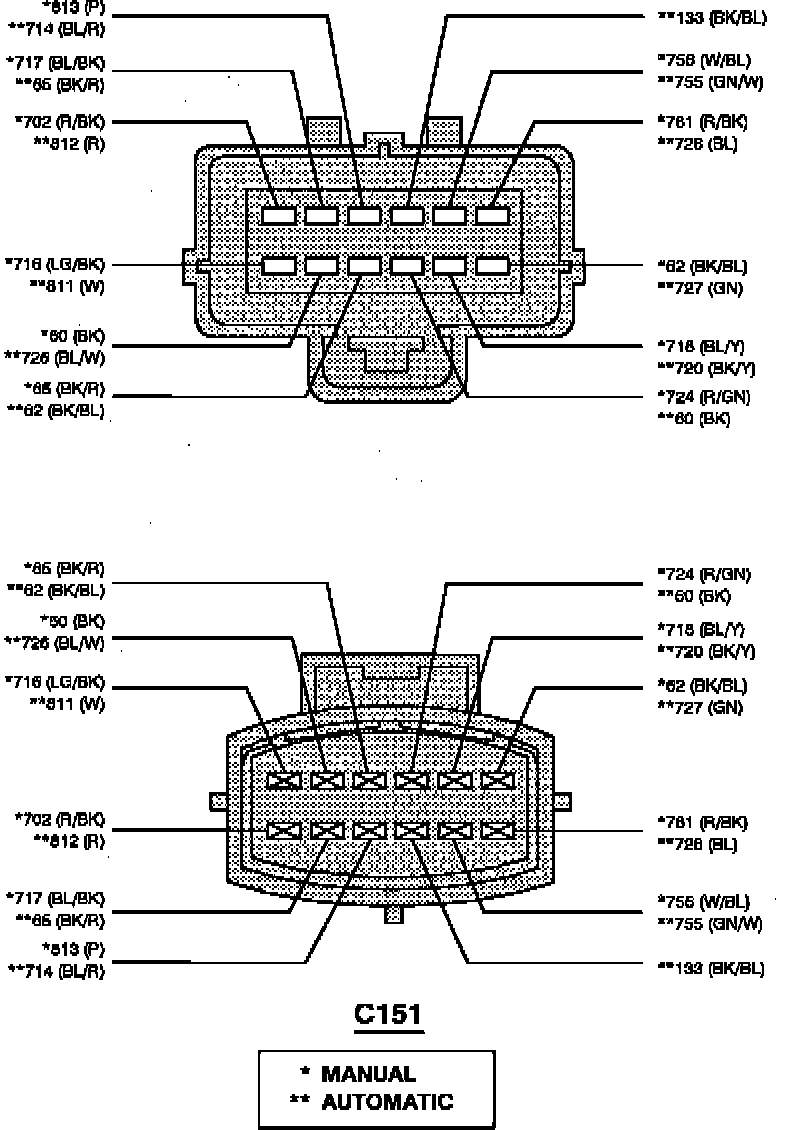

Multiple Junction Connector
>>
C151
C151
Connector Face Identification:
