Home
>>
Ford
>>
1994
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

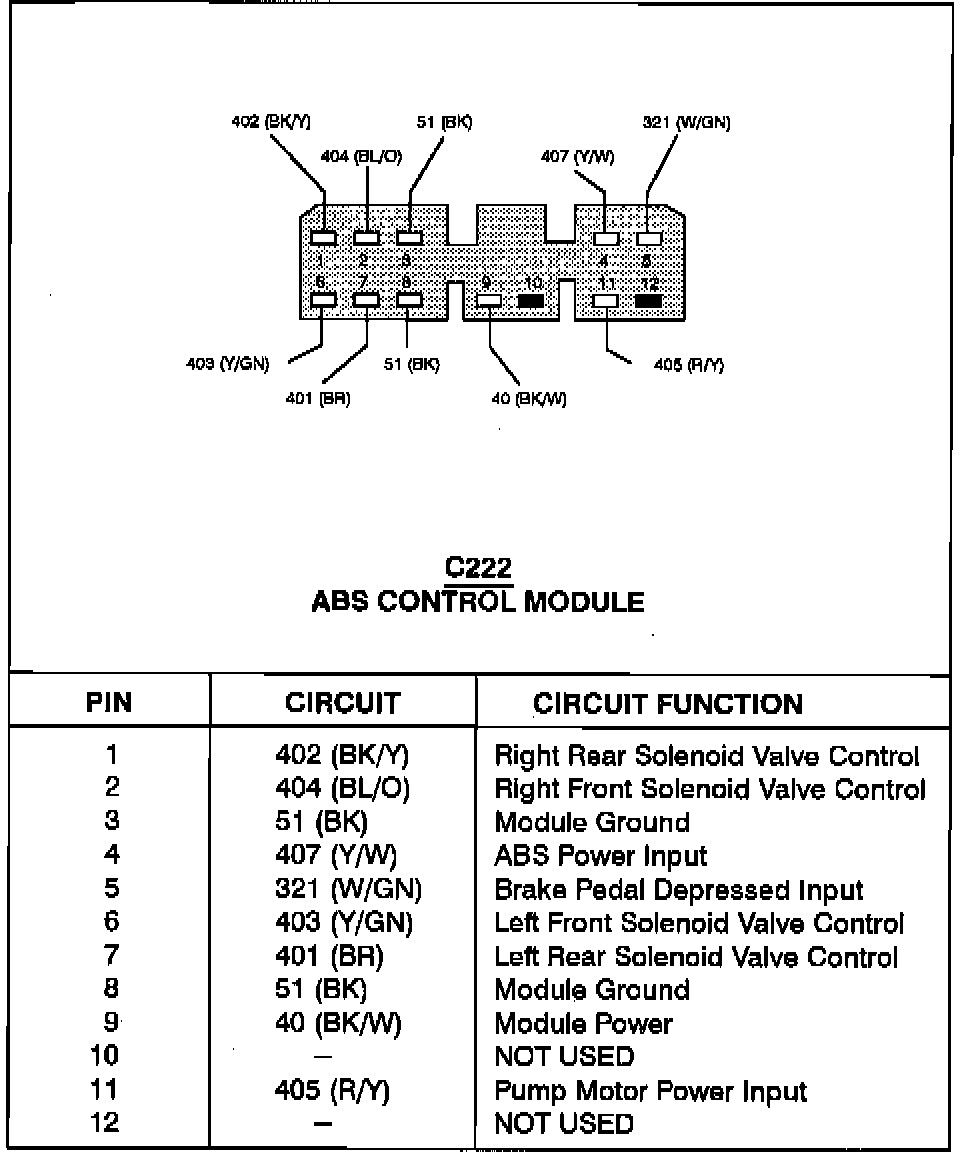

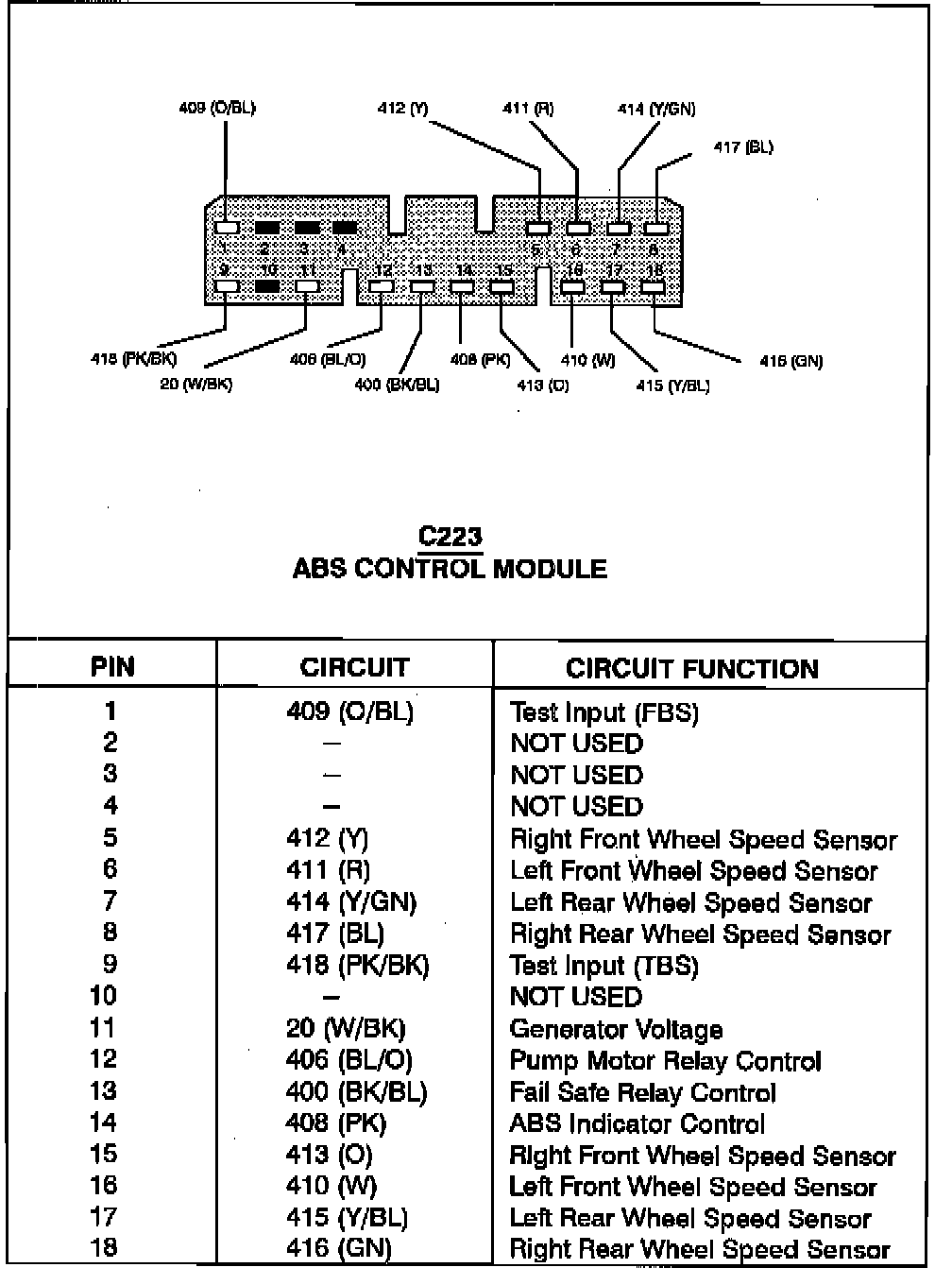

Anti-lock Brake System Control Module:
Anti-lock Brake System Control Module:
