Heater Control Assembly
Heater Control Assembly

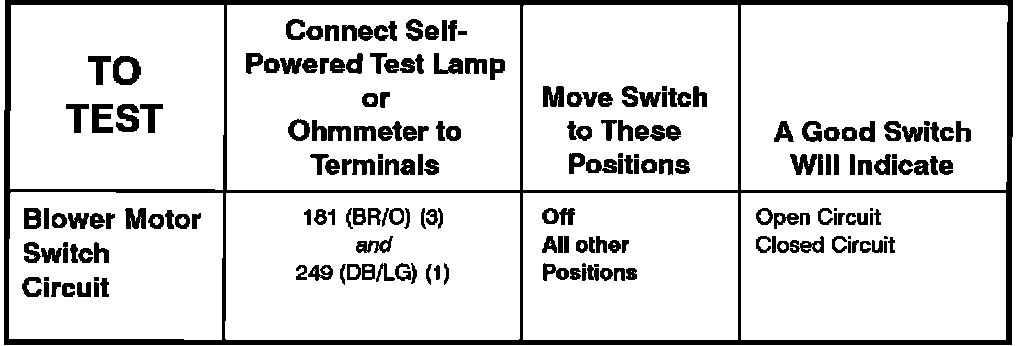

Component Testing Procedure:

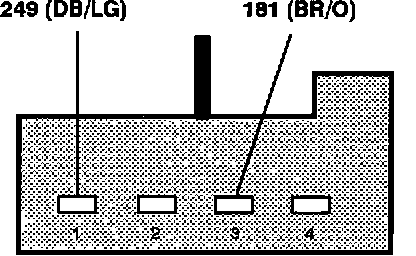

Terminal ID:

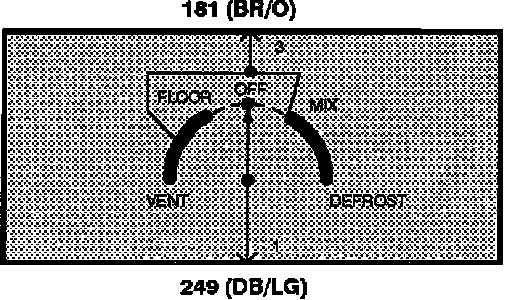

Schematic:
