Ford
>>
1994
>>
Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Diagrams
>>
With Automatic Transaxle
With Automatic Transaxle

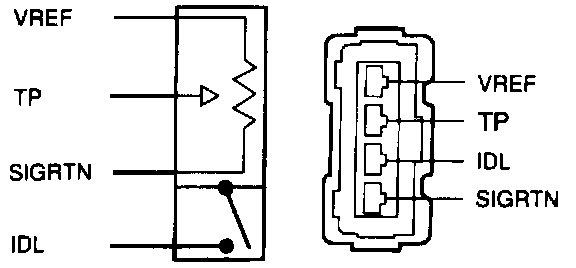

Throttle Position Sensor Connector:
