Engine Compartment Fuse Box

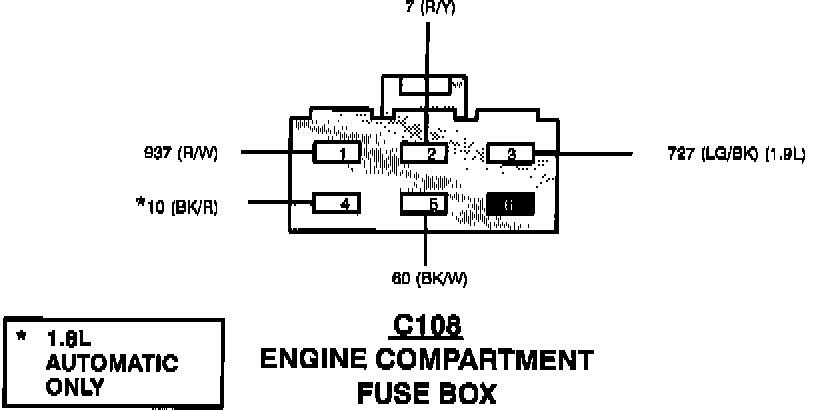

Engine Compartment Fuse Box:

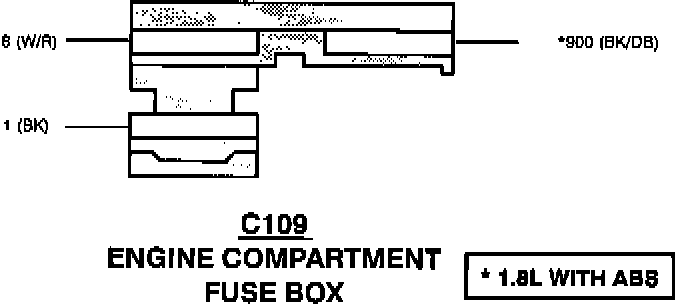

Engine Compartment Fuse Box:

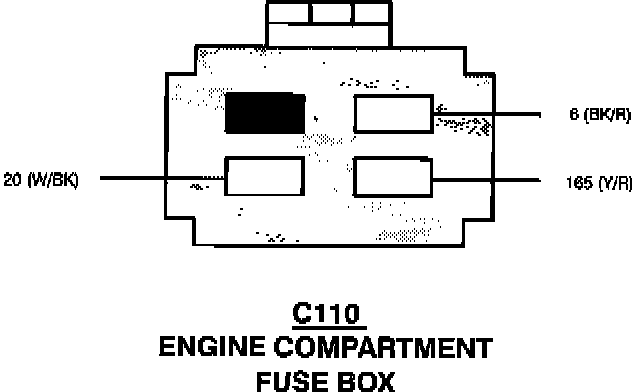

Engine Compartment Fuse Box:

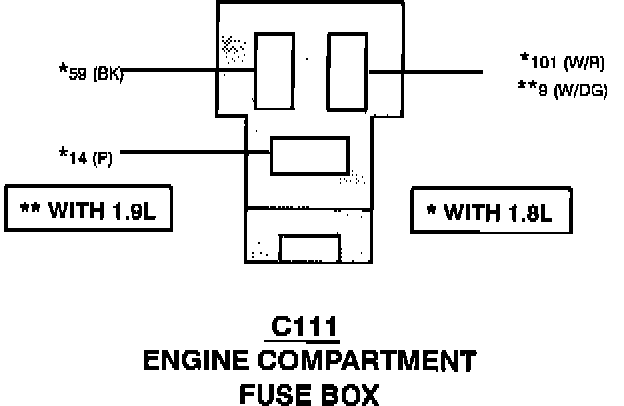

Engine Compartment Fuse Box:

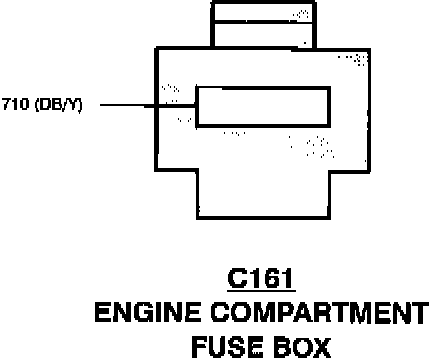

Engine Compartment Fuse Box:
