Home
>>
Ford
>>
1993
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

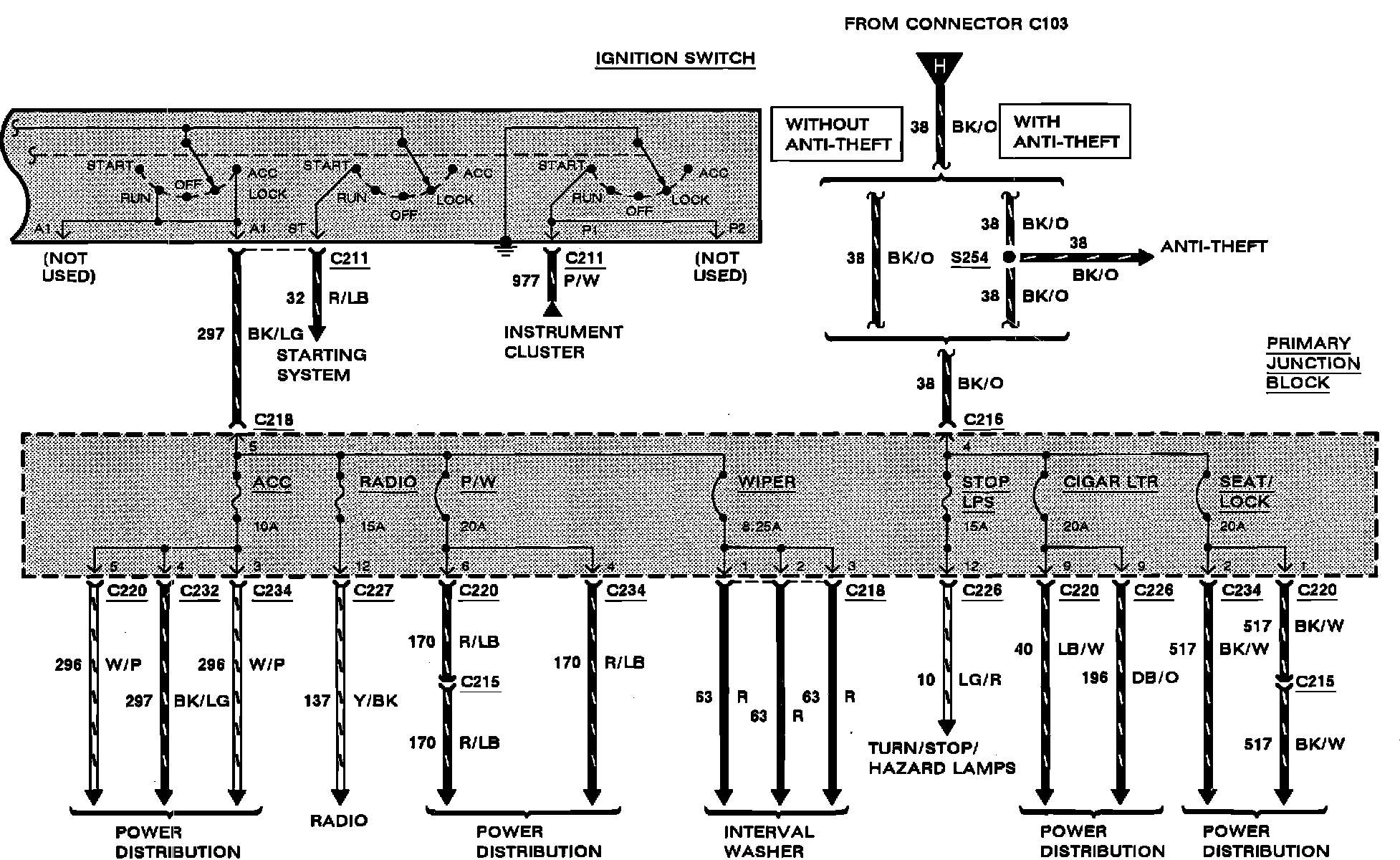

Power Distribution
>>
Fuse Circuits
>>
ACC
ACC
Power Distribution:
