Starting System
>>
System Diagram
System Diagram

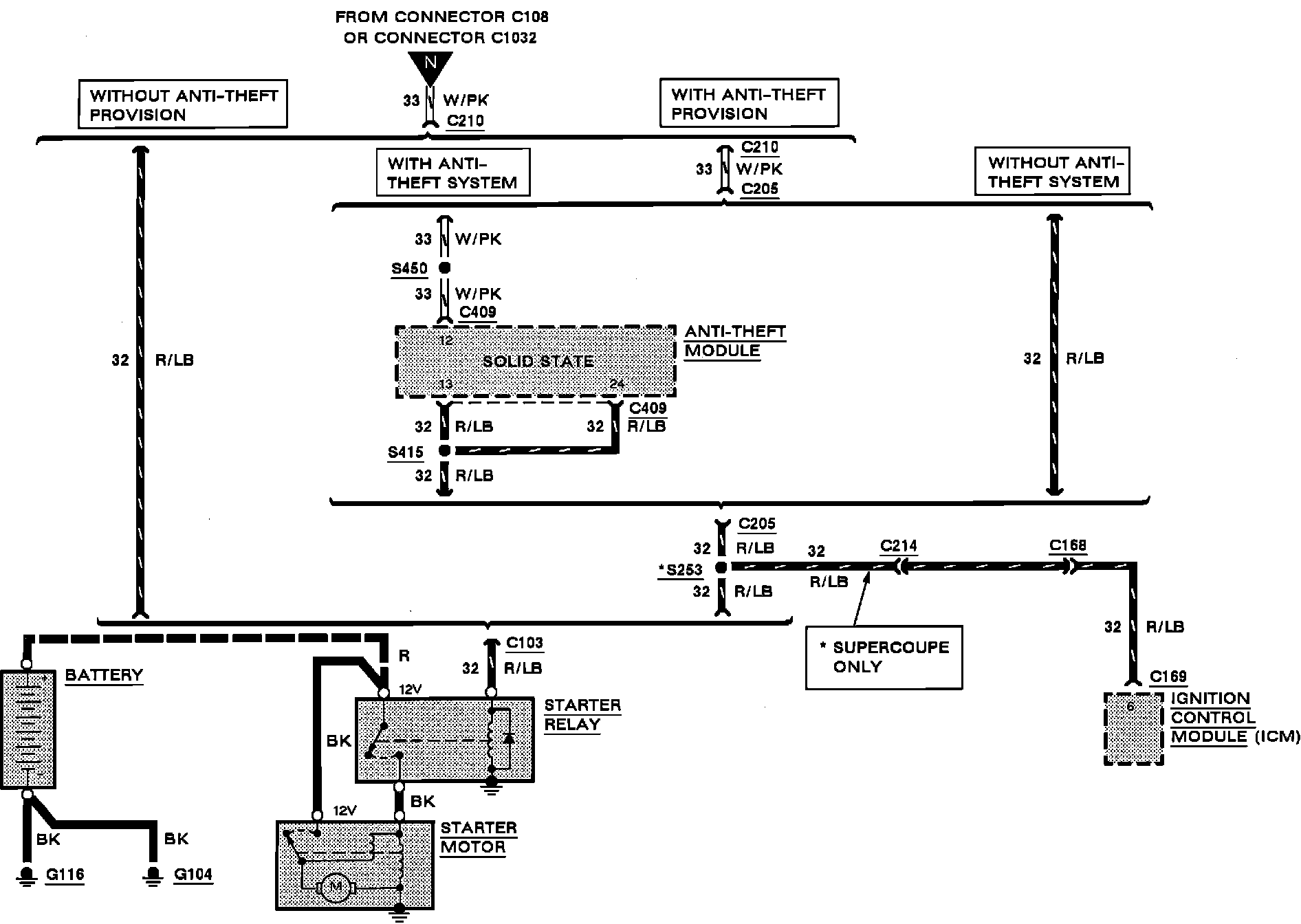

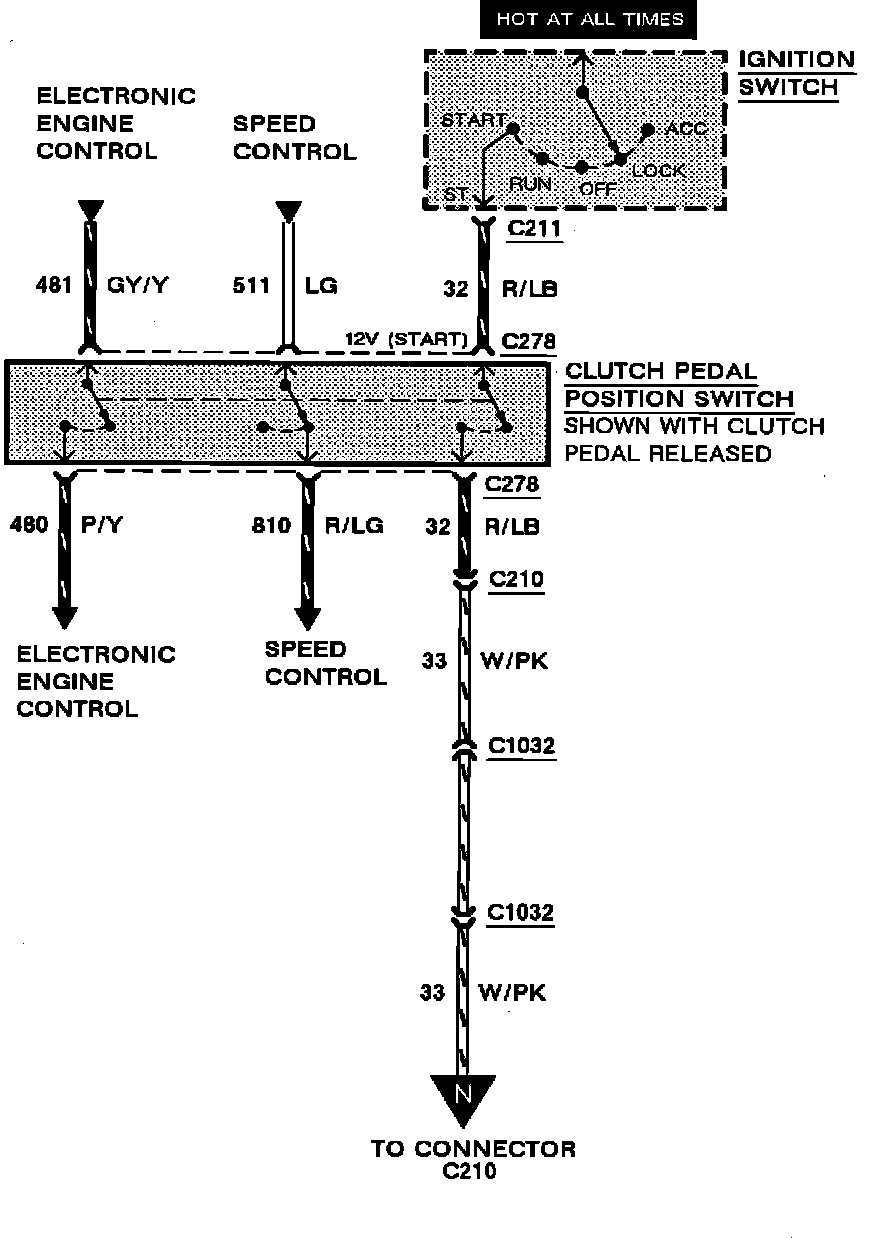

Starting System (Manual Transmission):

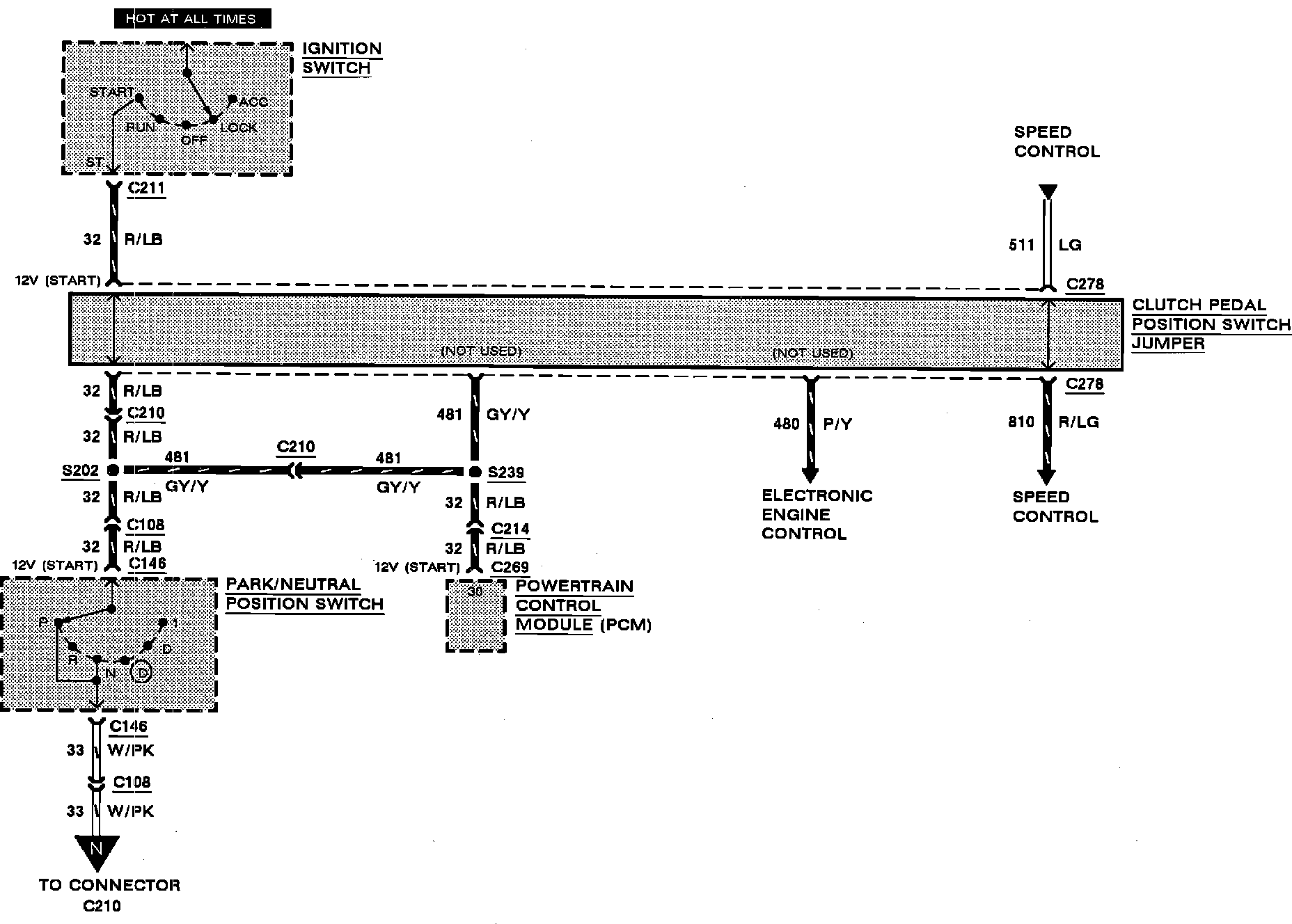

Starting System (Automatic Transmission):
Starting System (Manual Transmission):
