Home
>>
Ford
>>
1993
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Fuse Circuits
>>

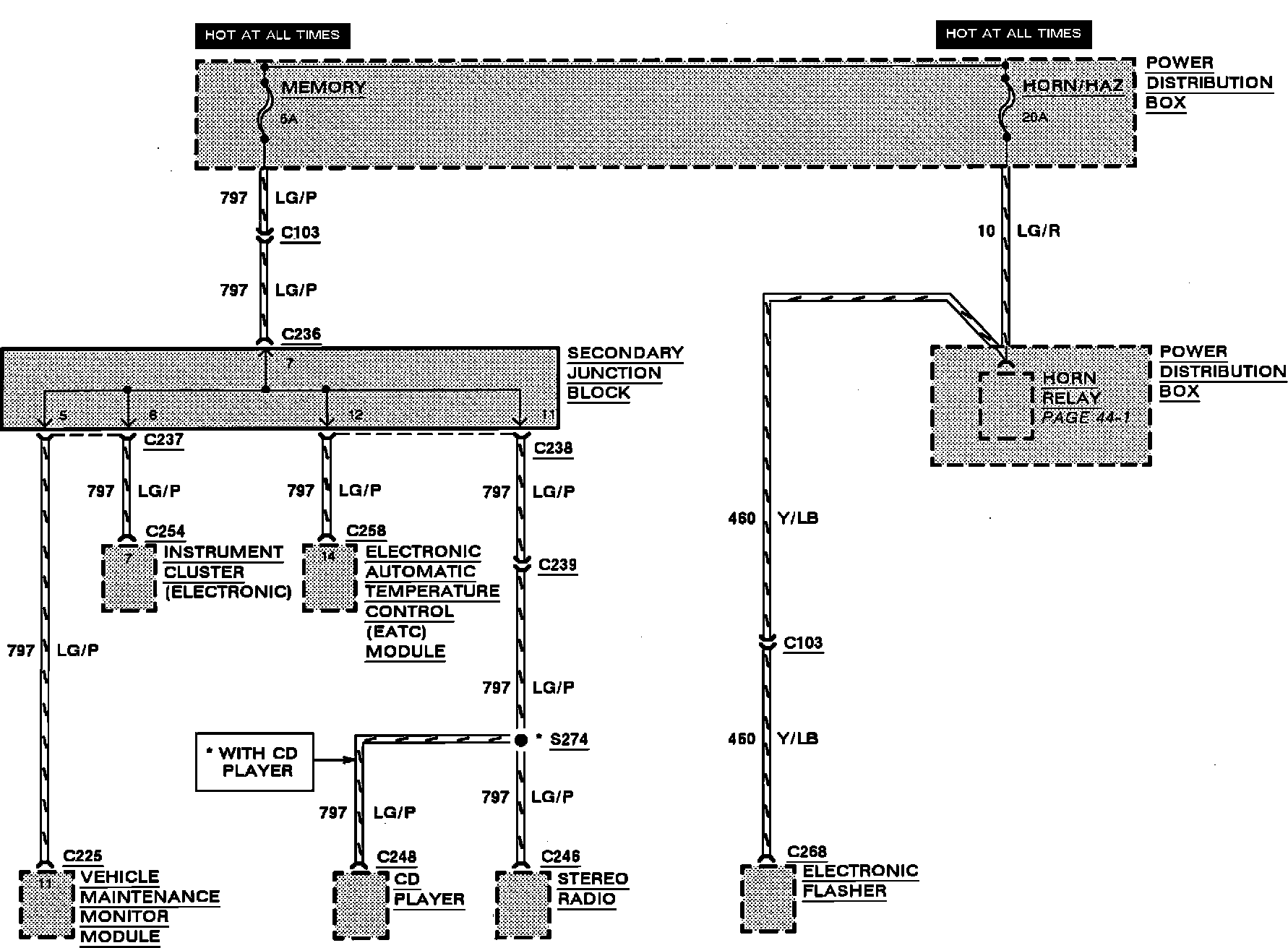

Memory
Memory

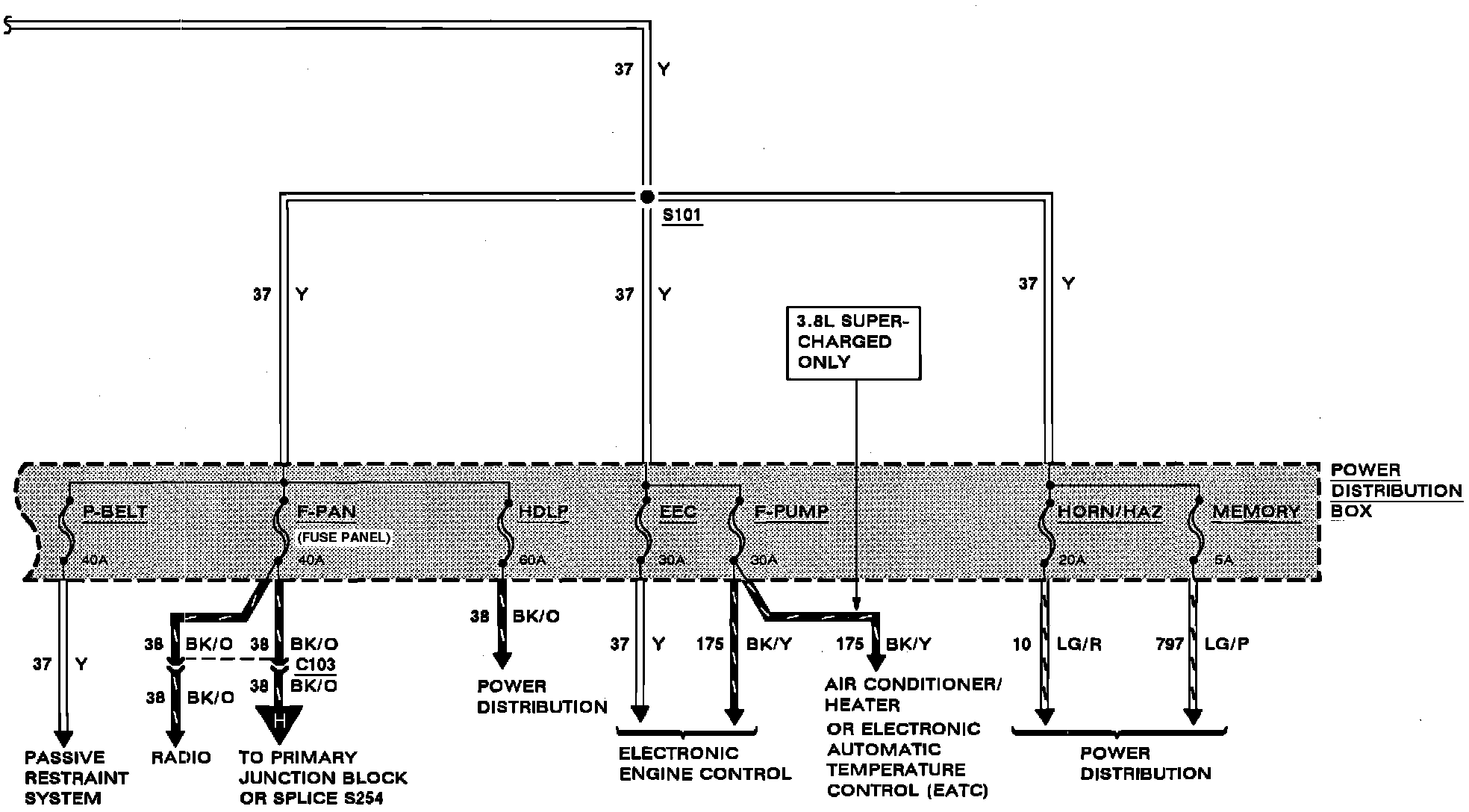

Power Distribution:
Power Distribution:
