Home
>>
Ford
>>
1993
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Function Selector Switch
>>
Harness Side
Harness Side

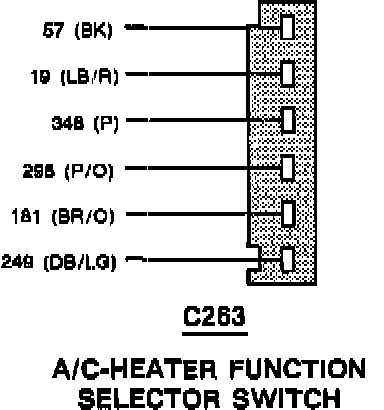

A/C-Heater Function Selector Switch:
