Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
1993
>>
Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

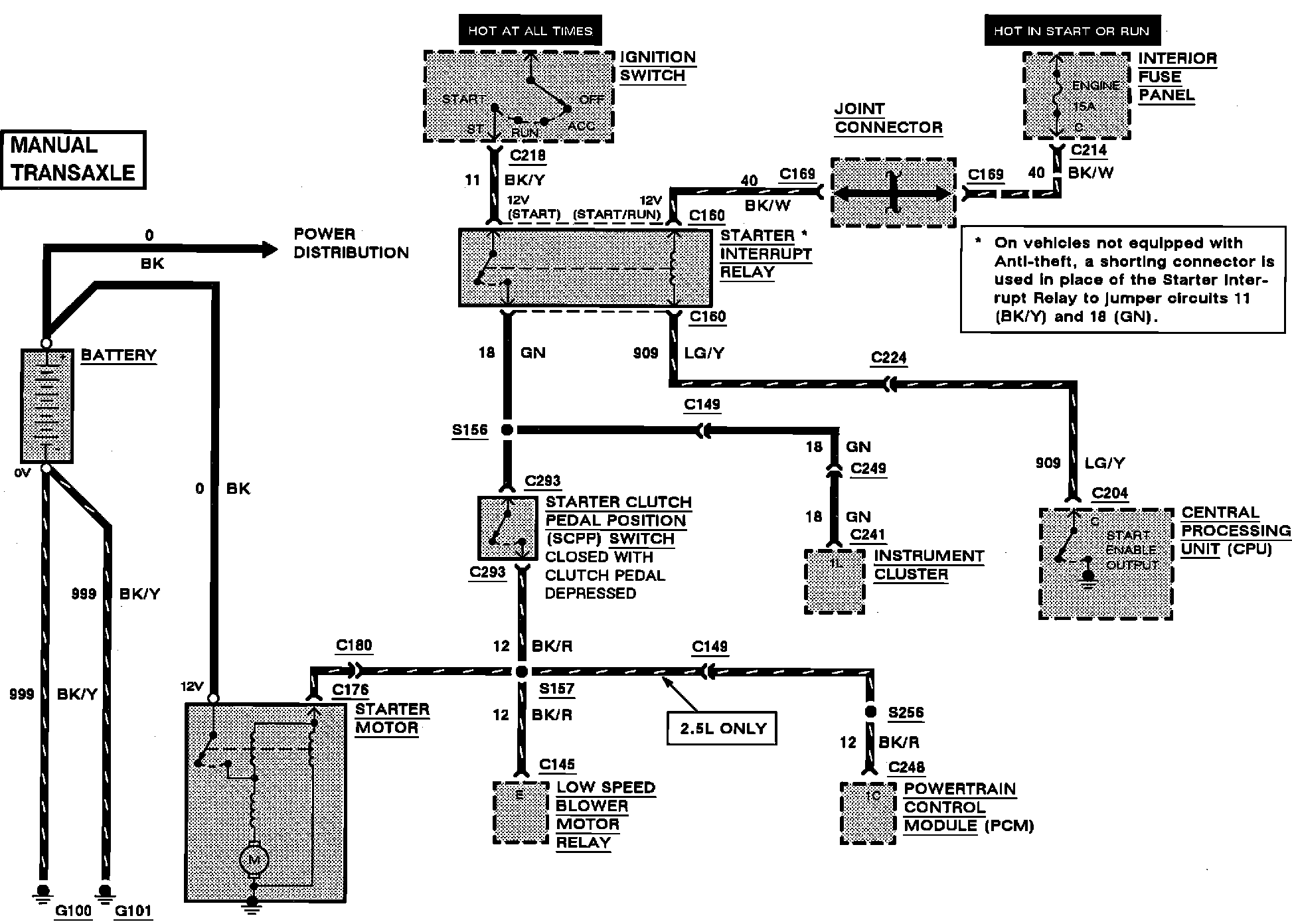

Manual Transaxle:

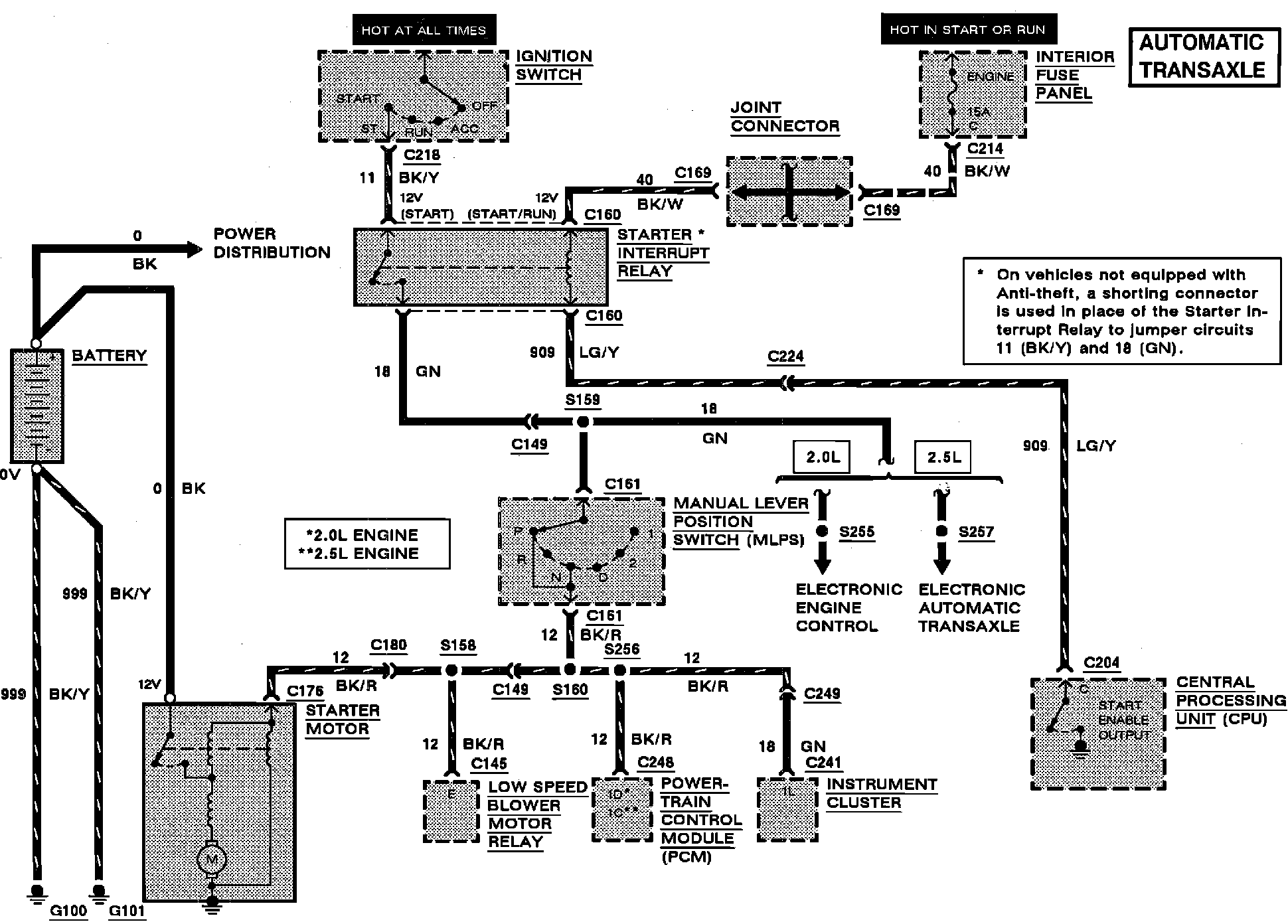

Automatic Transaxle:
