Home
>>
Ford
>>
1993
>>
Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Door Lock Control Module
>>

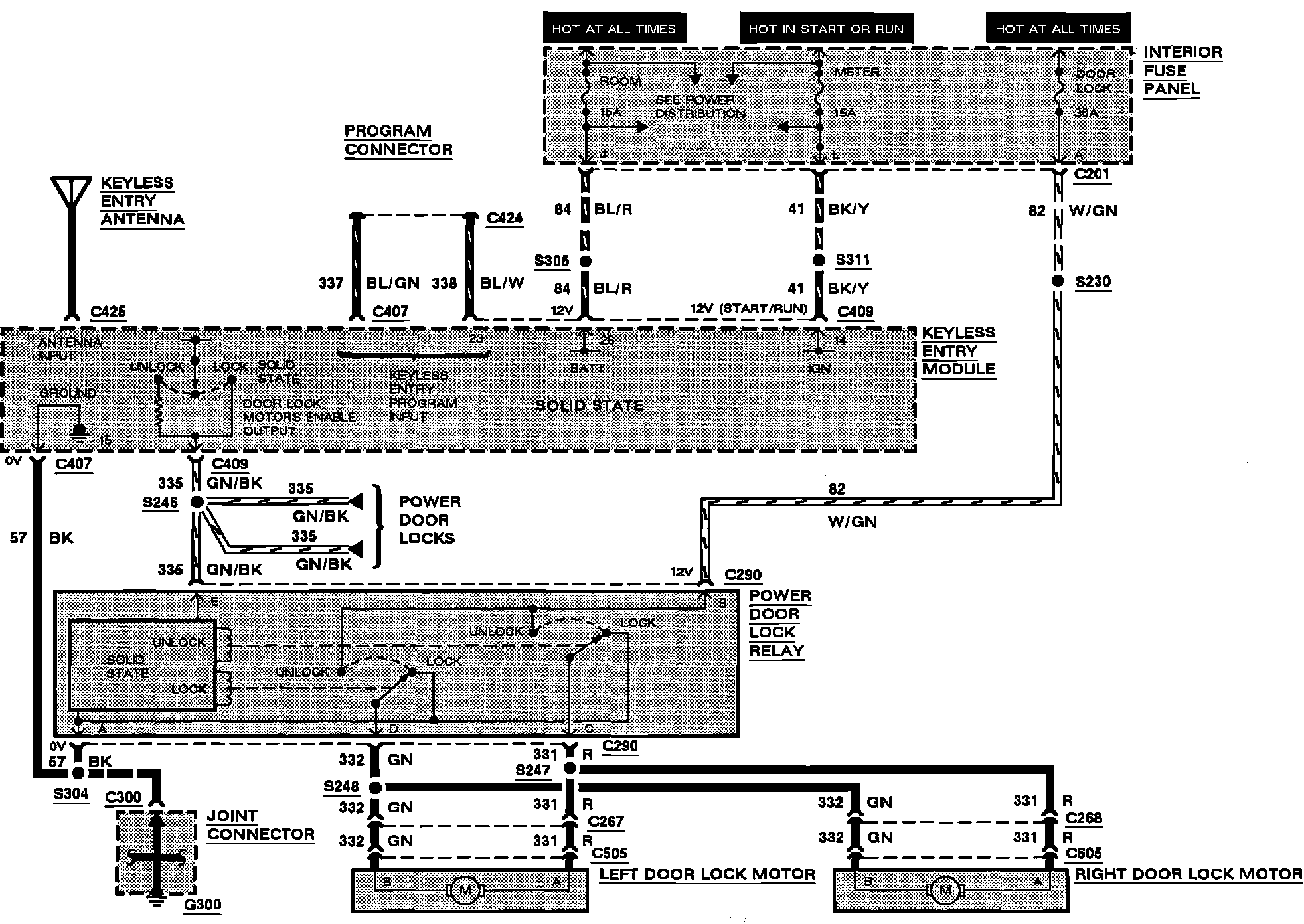

With Keyless Entry
With Keyless Entry

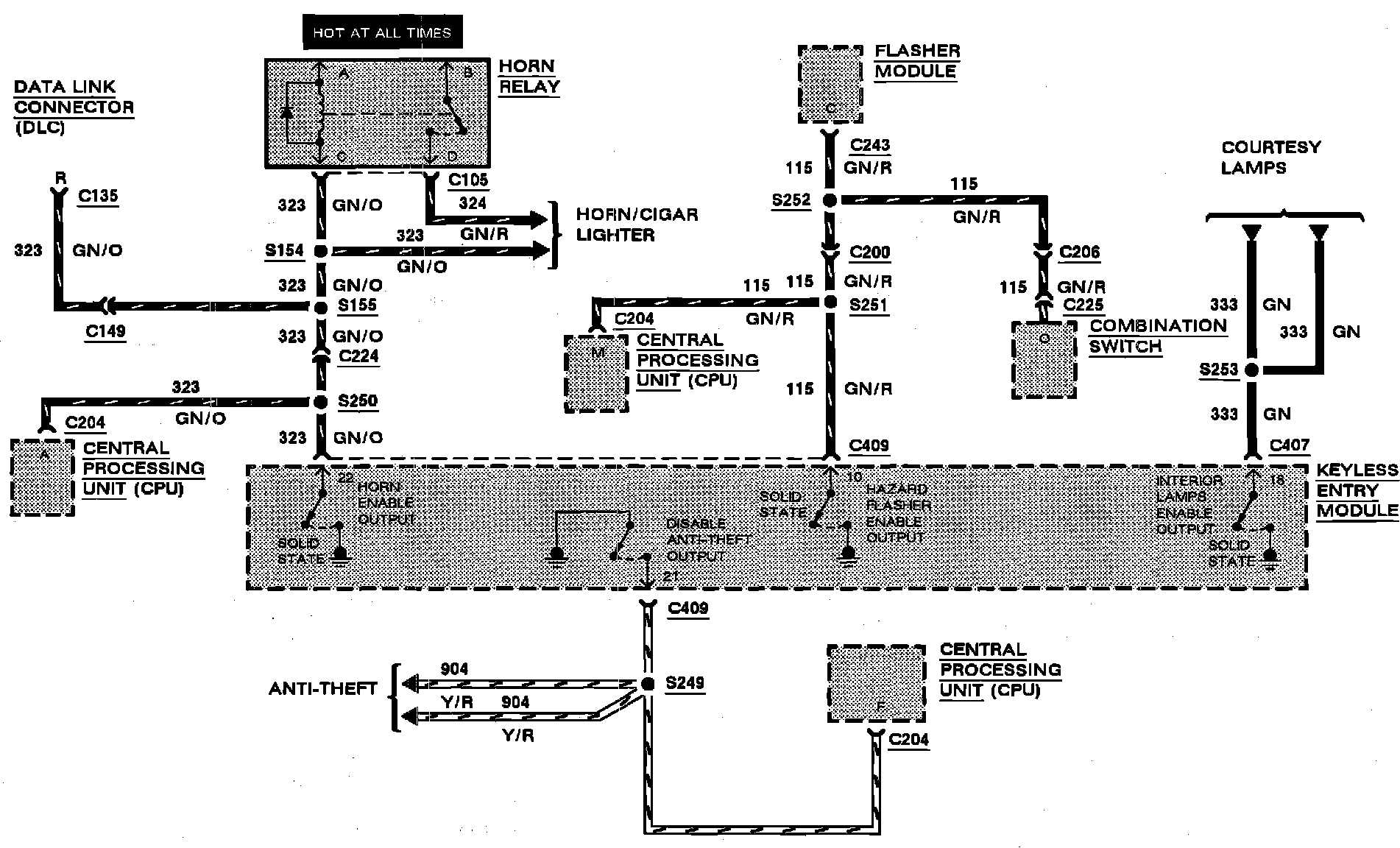

Remote Keyless Entry:
Remote Keyless Entry:
