Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Base Model

Base Model

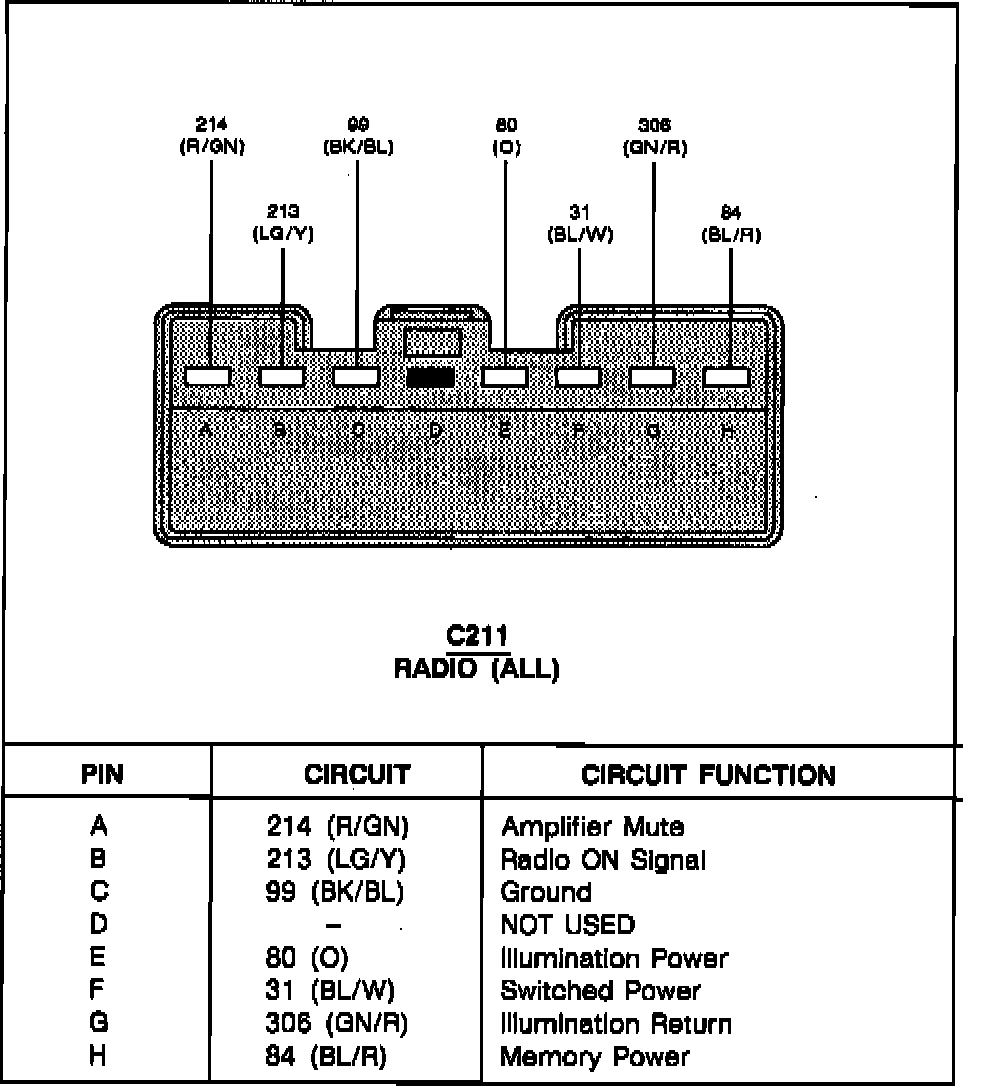

Radio (All):

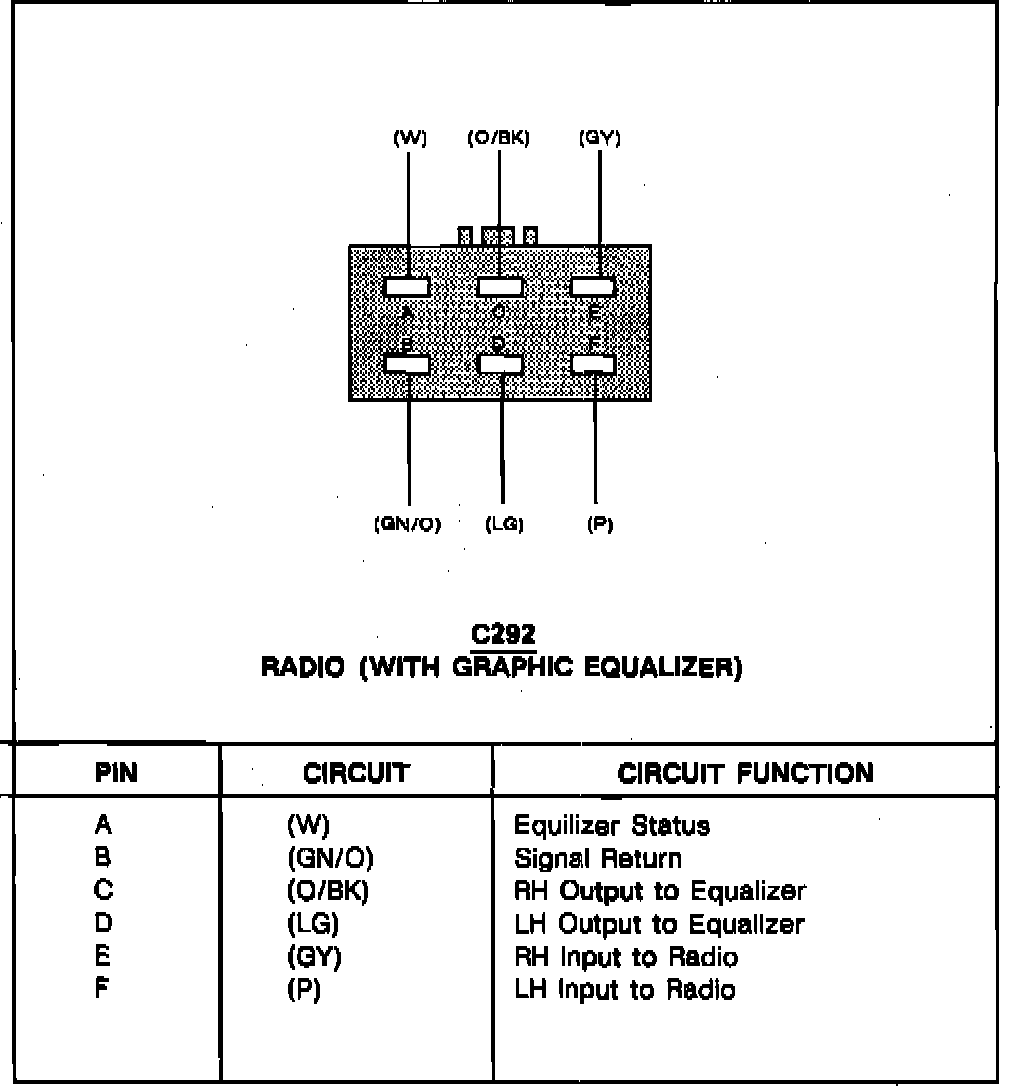

Radio (With Graphic Equalizer:
