KP - Octane Adjust
>>

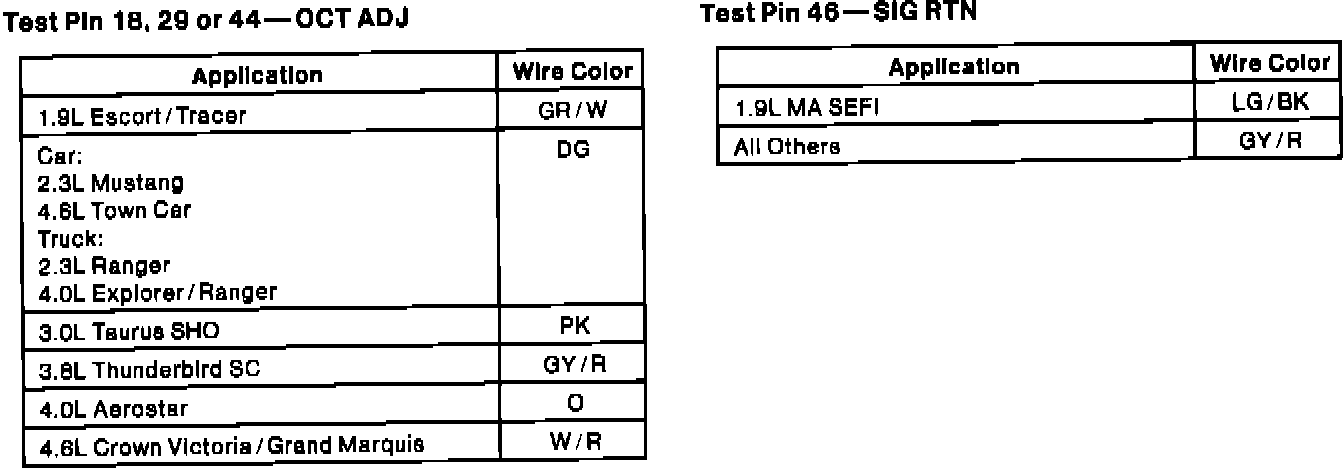

KP - Testing Schematic
KP - Testing Schematic

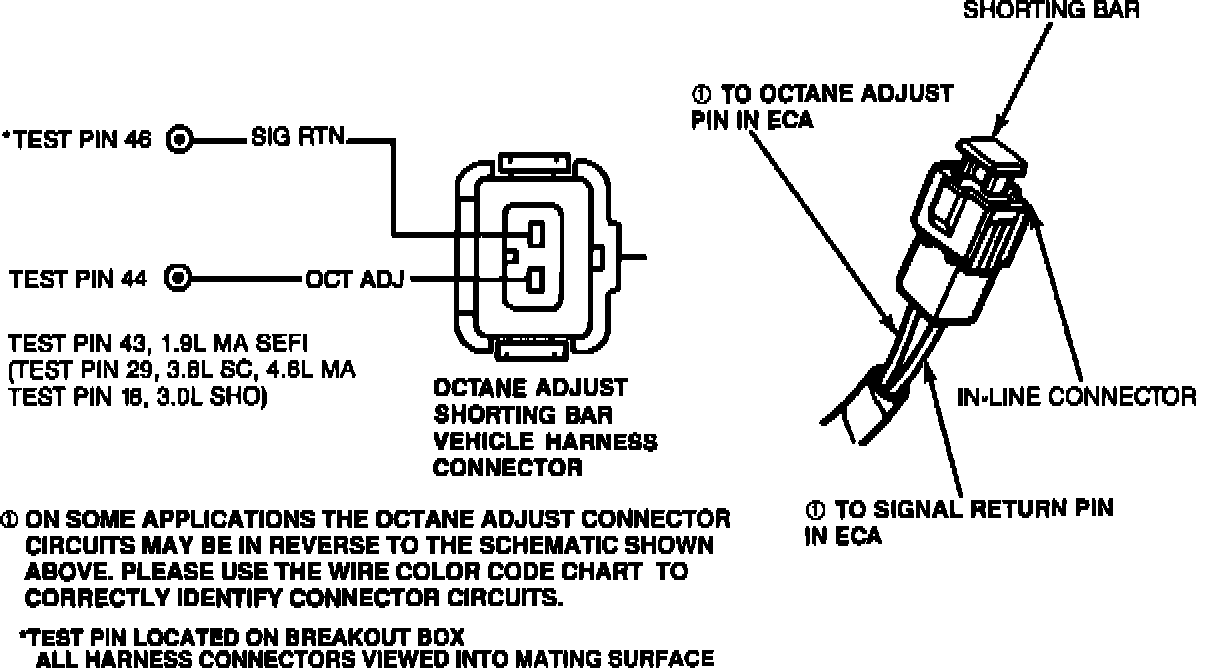

Octane Adjust Shorting Bar:
Octane Adjust Shorting Bar:
