Home
>>
Ford
>>
1992
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
AB - EEC-IV No Start (DIS)
>>

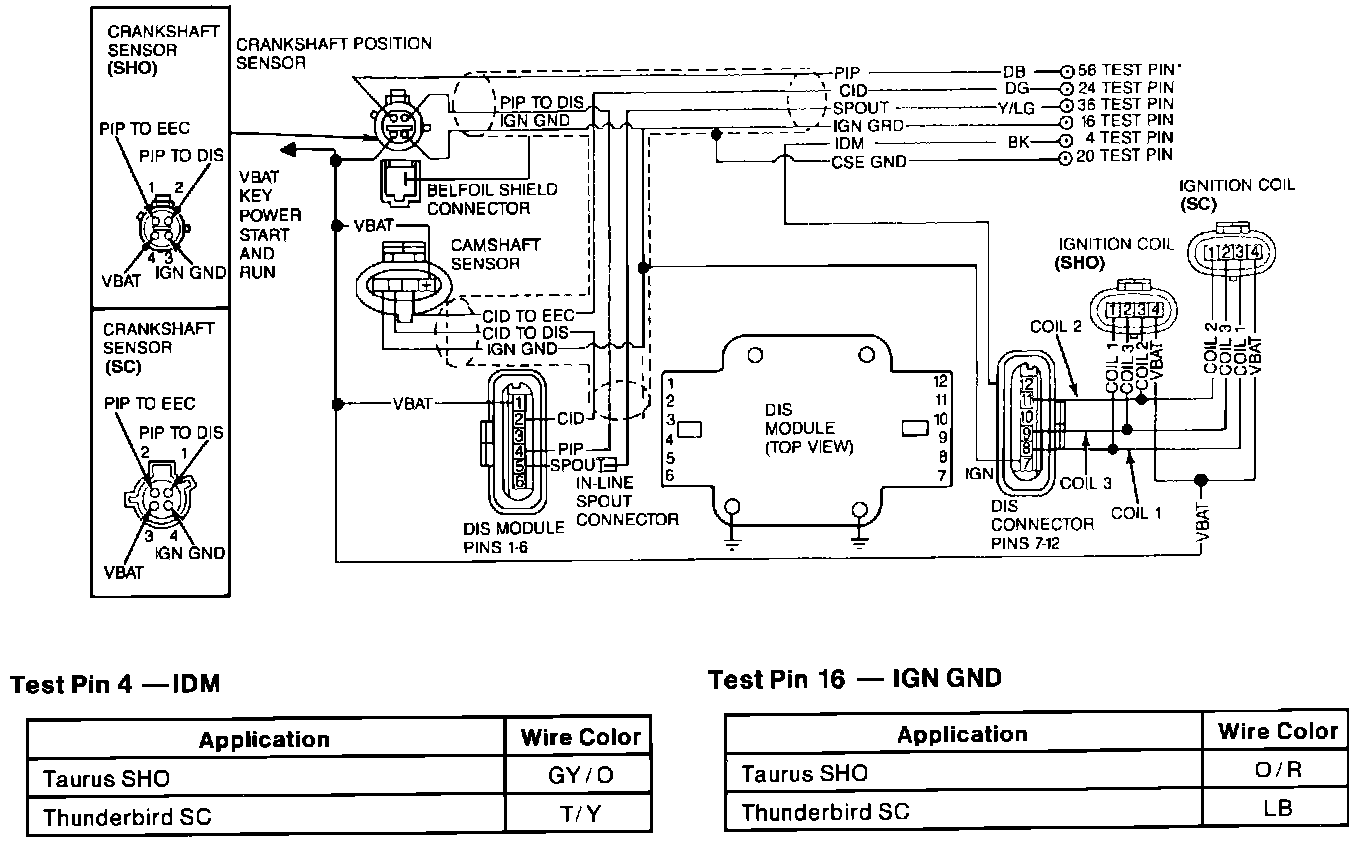

AB - Testing Schematic
AB - Testing Schematic
Schematic Diagram:
