Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Relay

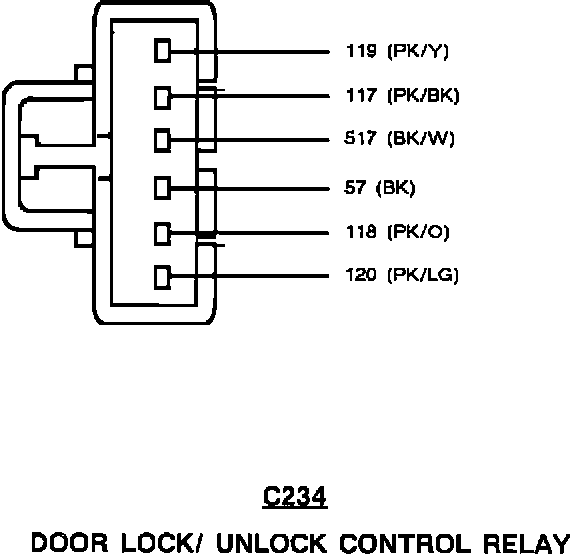

Power Door Lock Relay
Connector Faces/Pinout Charts:
