Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Right Rear Window Switch

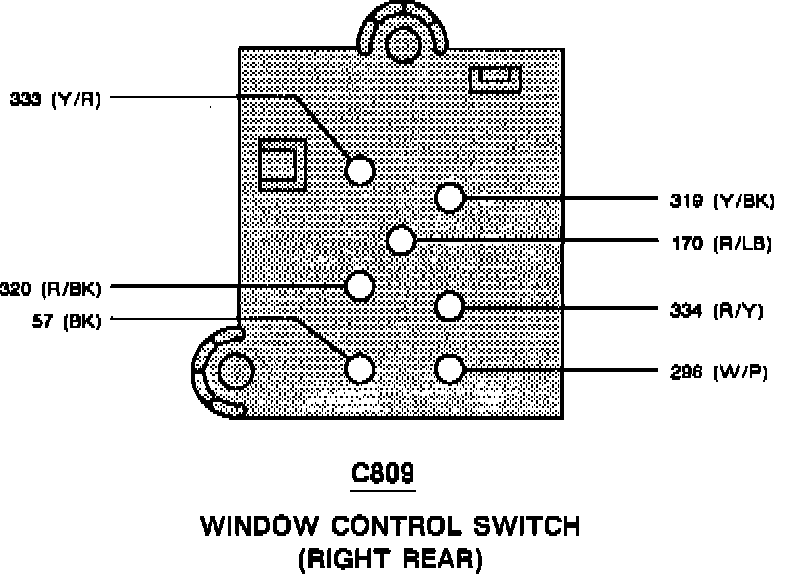

Right Rear Window Switch
Connector Faces/Pinout Charts:
