Power Window Switch
>>

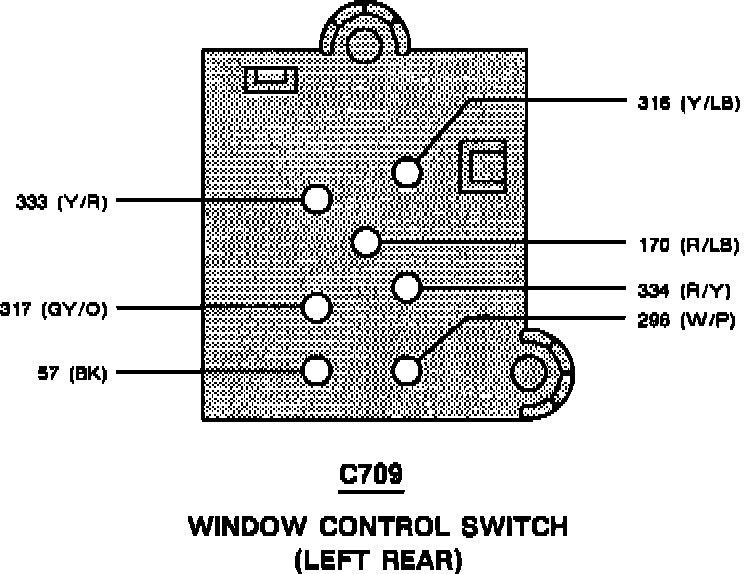

Left Rear Window Switch
Left Rear Window Switch
Connector Faces/Pinout Charts:
