Electronic Brake Control Module
Electronic Brake Control Module

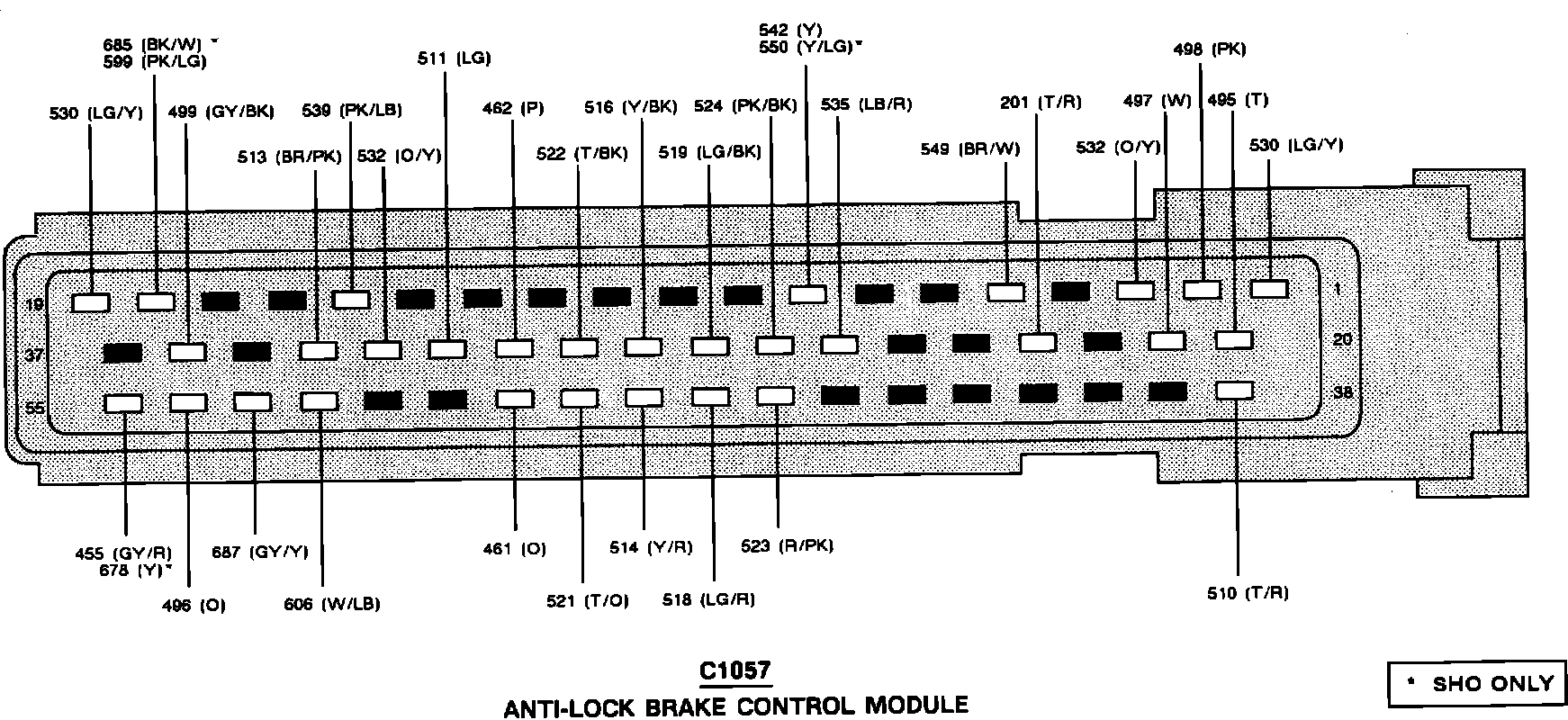

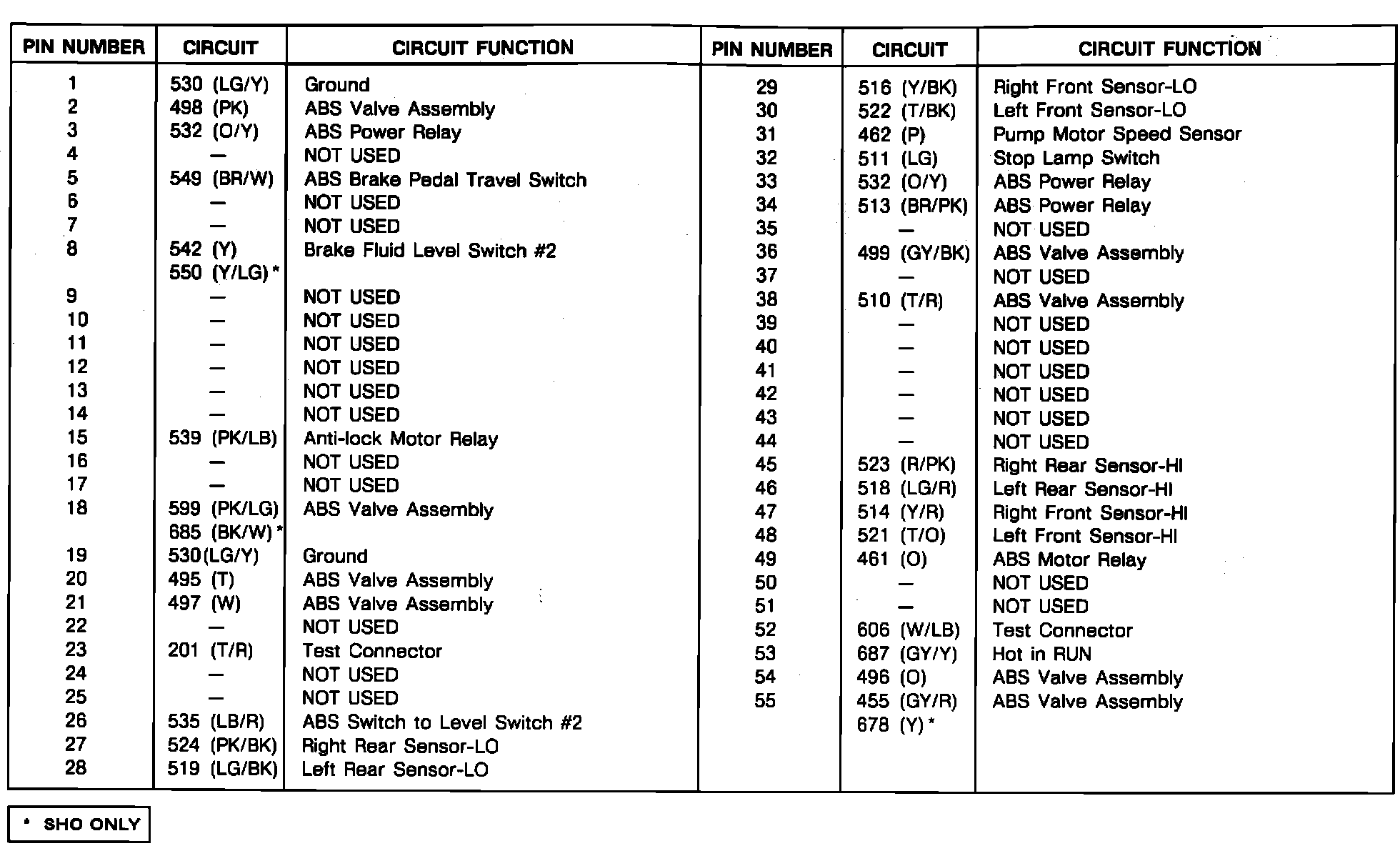

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
