Home
>>
Ford
>>
1992
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
JBL Audio System
JBL Audio System

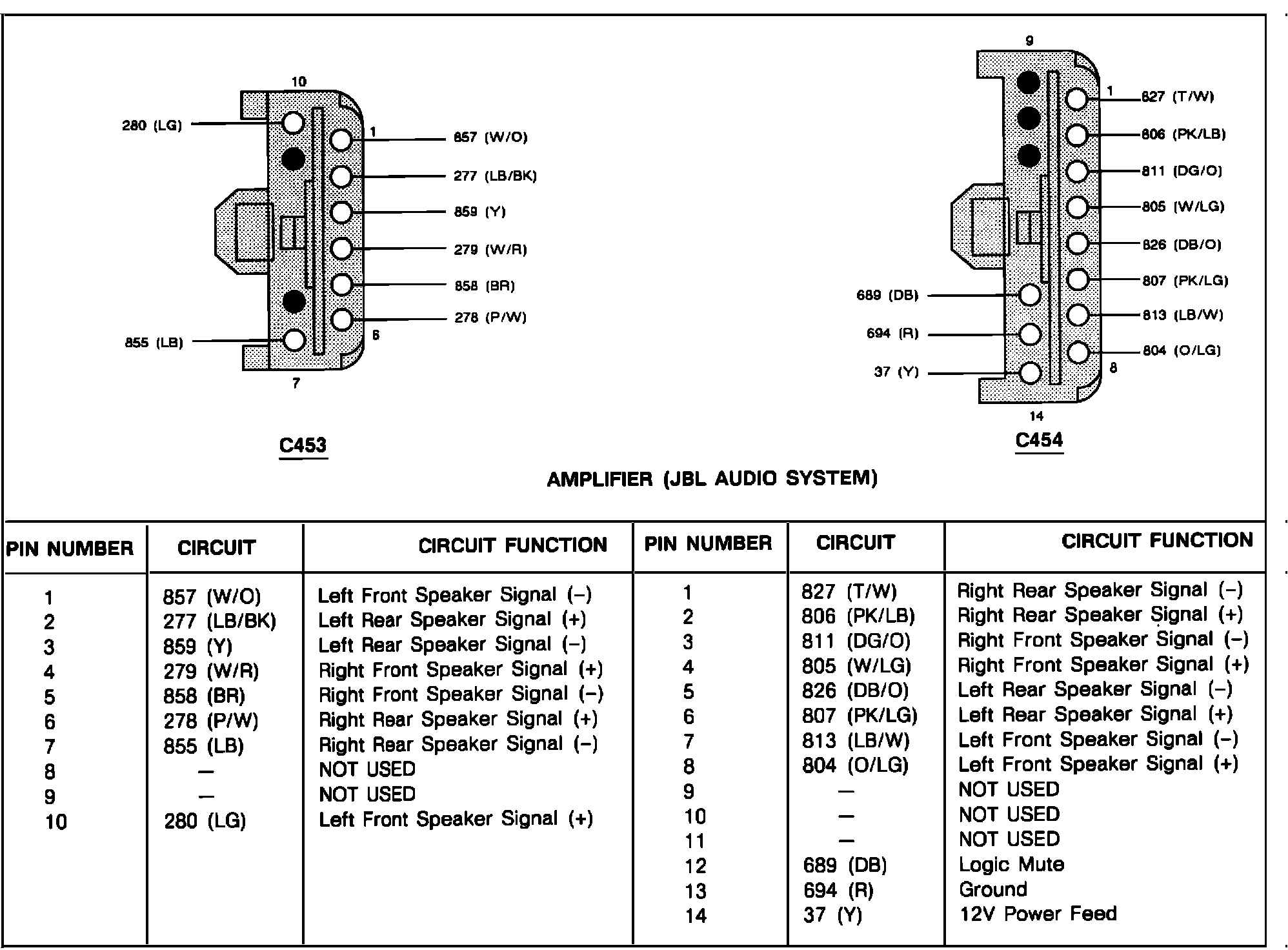

Connector Faces/Pinout Charts:
