Home >> Ford >> 1992 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Engine Compartment Fuse Box

Engine Compartment Fuse Box

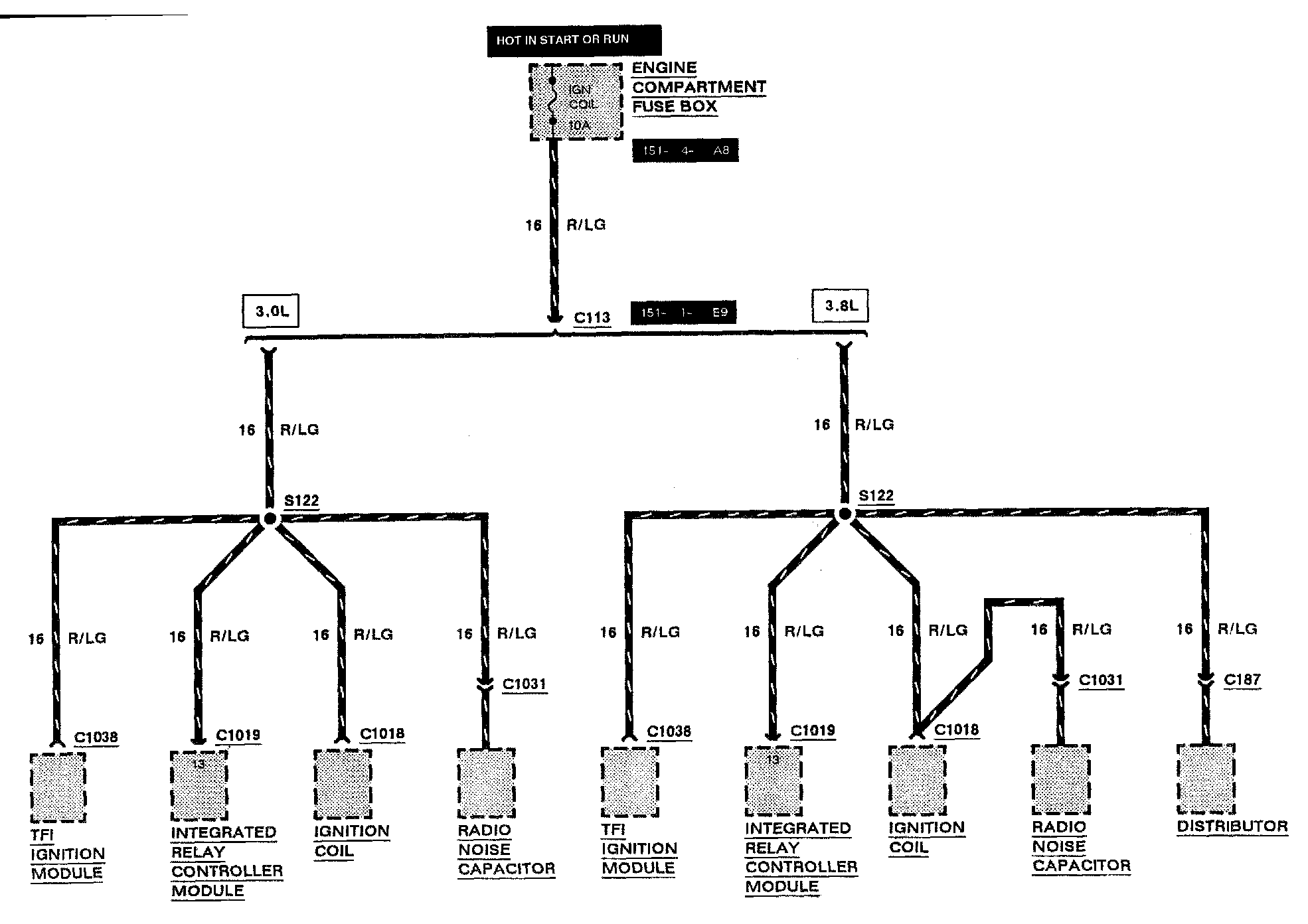

Taurus SHO Engine Only:

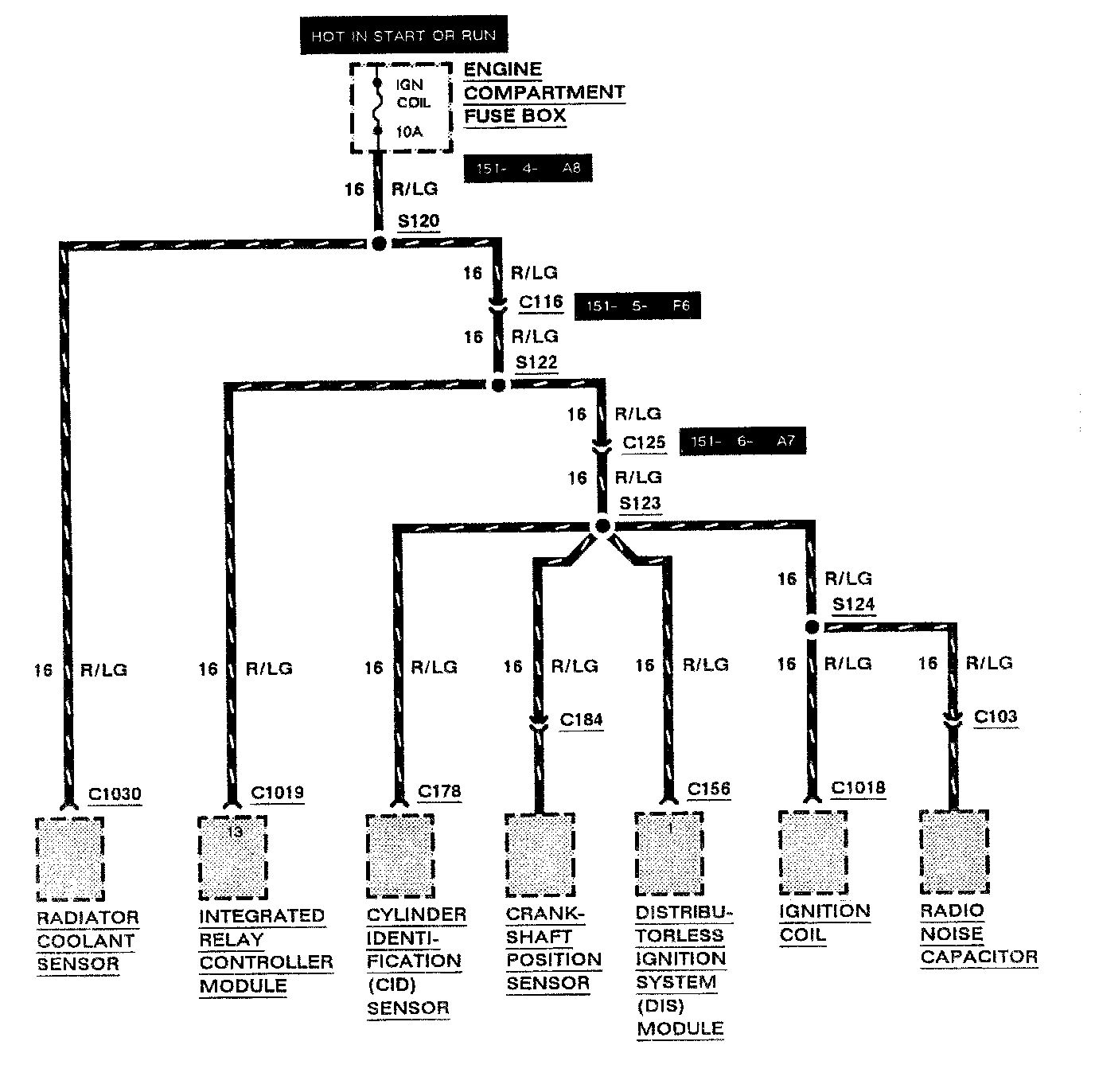

3.0L/3.8L:
