Ford
>>
1992
>>
Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>

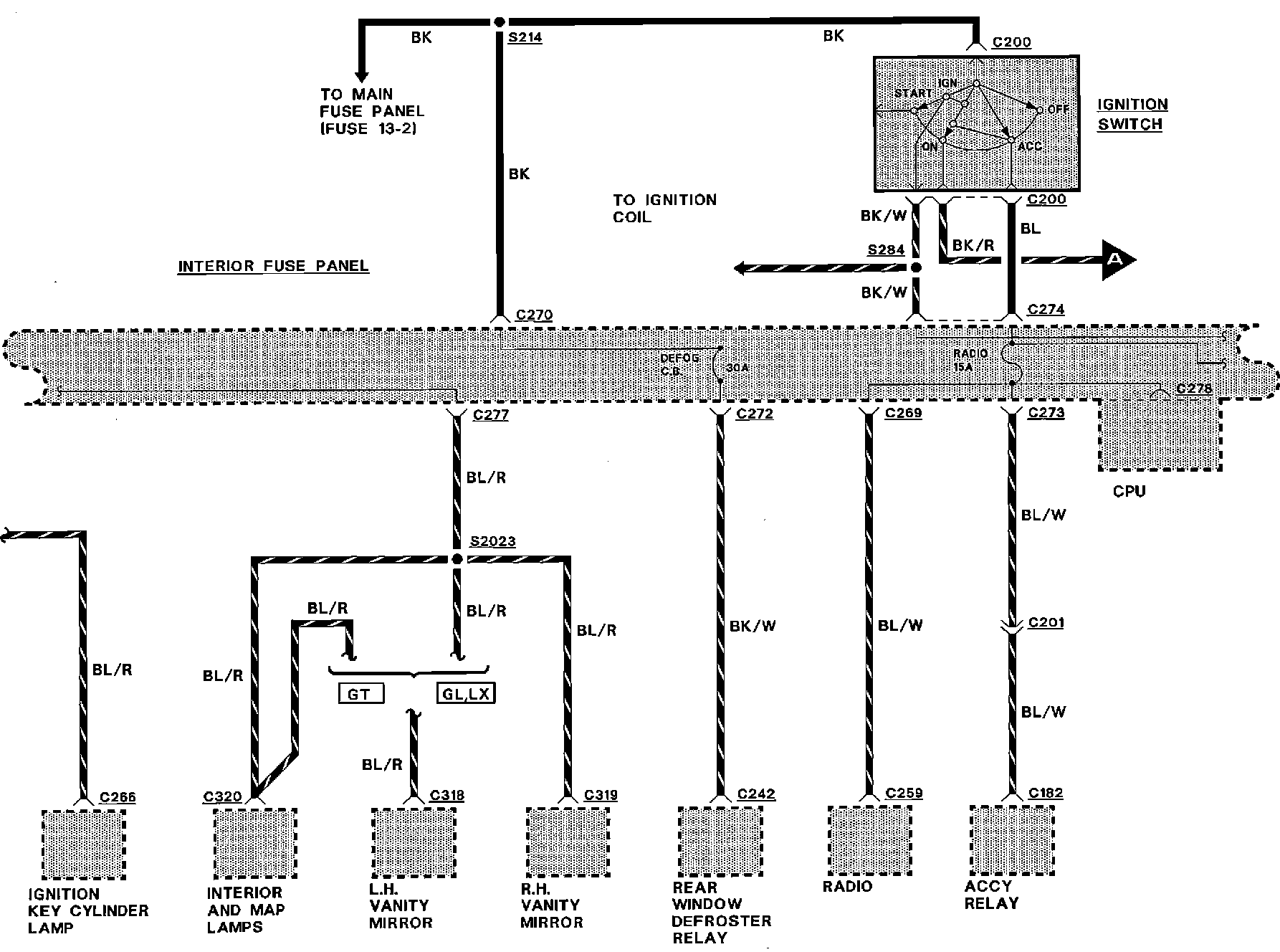

Interior Fuse Panel
>>
Defog
Defog
Power Distribution:
