TS22 - Check Combination Air Control Valve Operation
TS22 - Check Combination Air Control Valve Operation

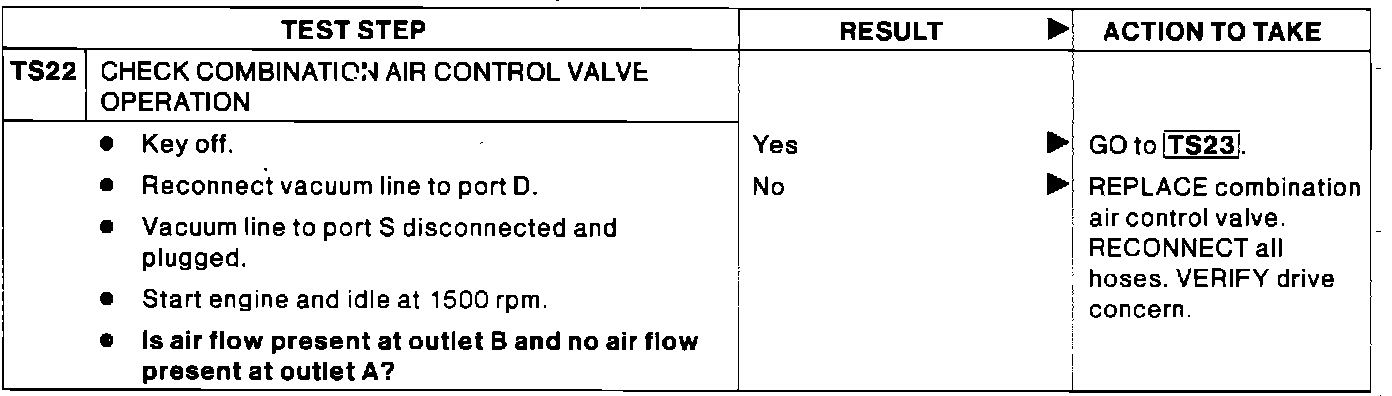

Diagnostic Test TS22:
Combination Air Bypass/Air Control Valve:
