Home
>>
Ford
>>
1992
>>
Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

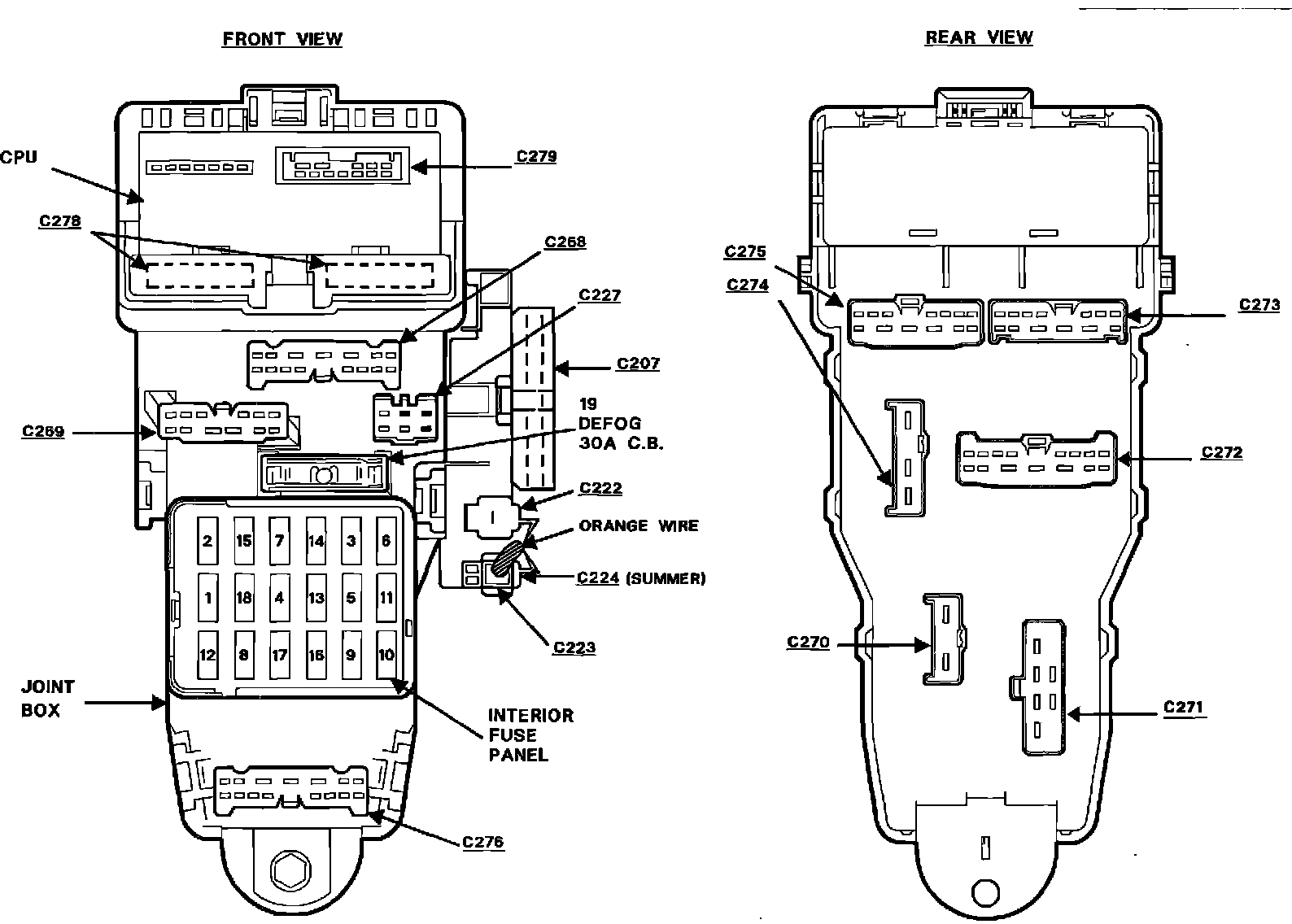

Interior Fuse Panel
Interior Fuse Panel
Circuit Protector:

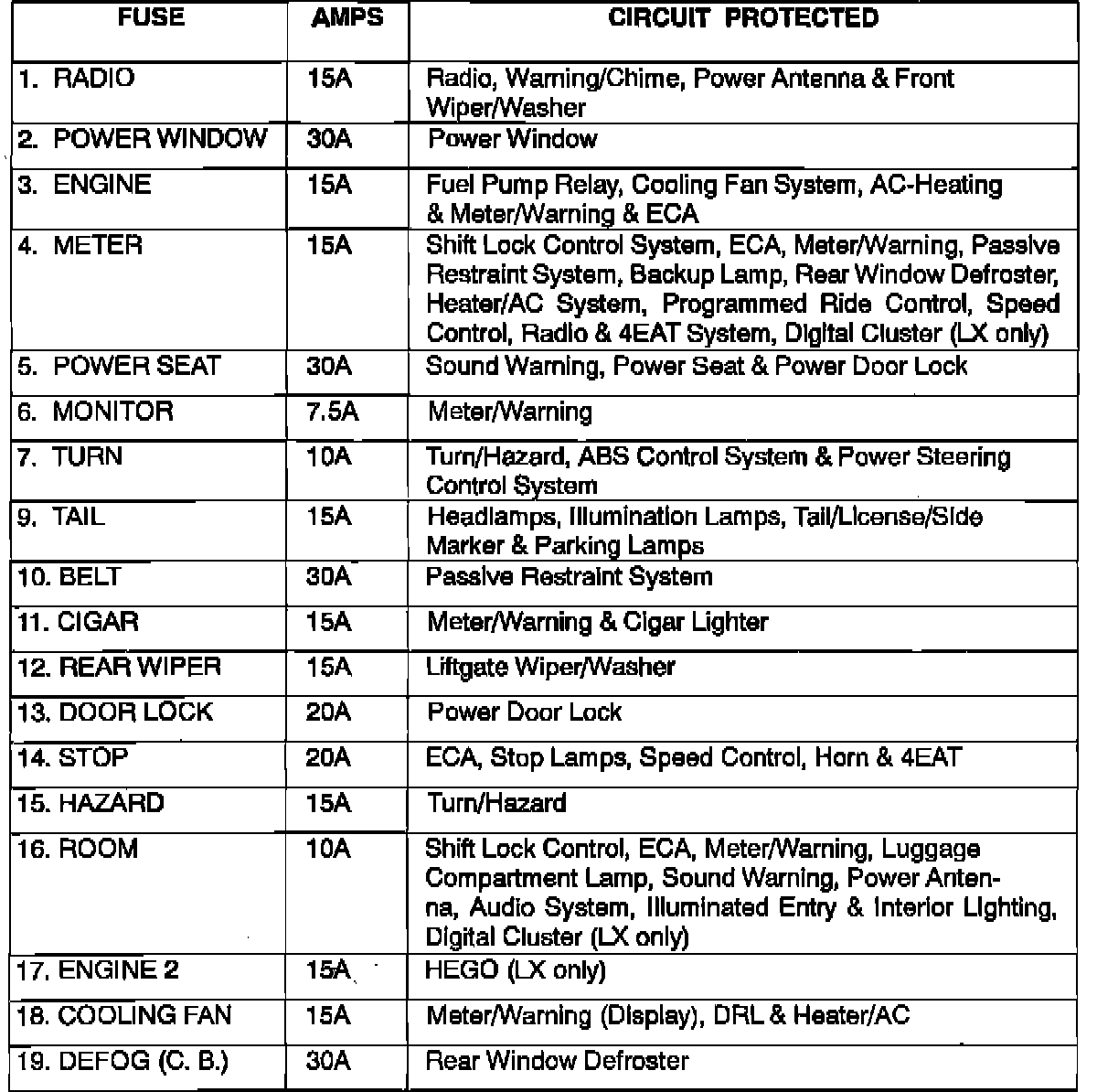

Fuse Panel:
