Electronic Spark Control Module
Electronic Spark Control Module

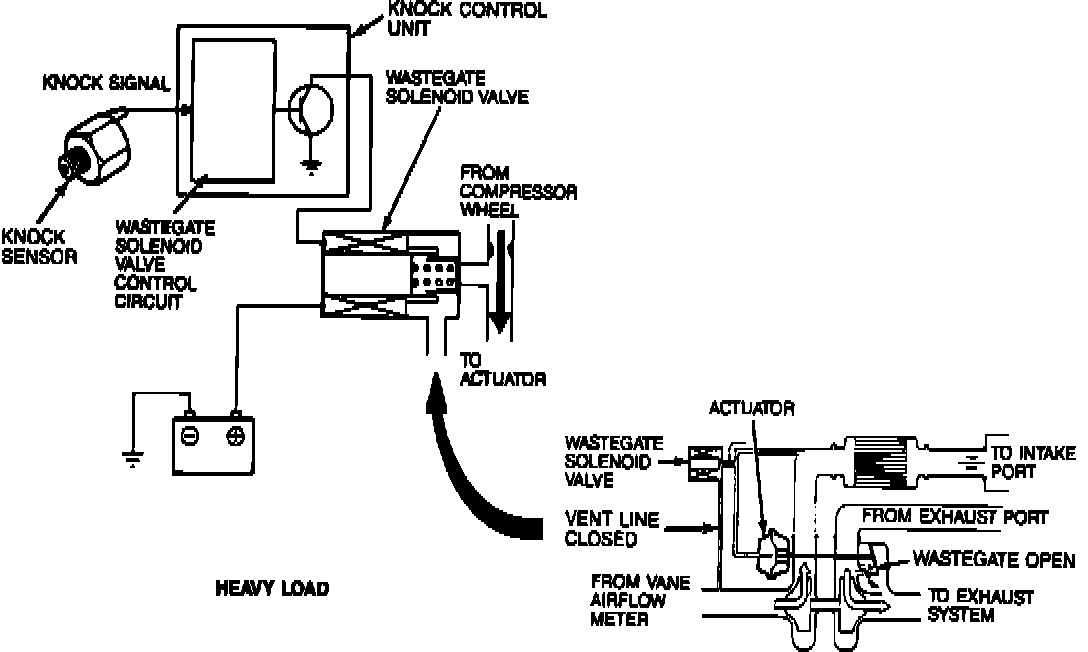

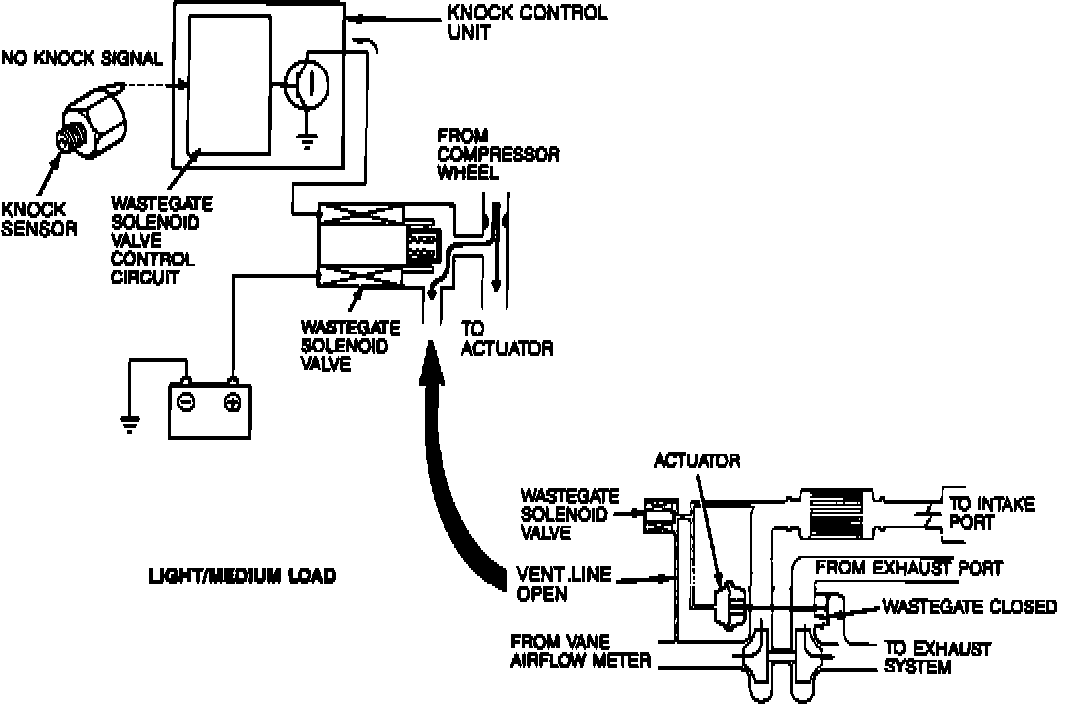

Turbo Control System:
Turbo Control System:
