Home >> Ford >> 1991 >> Thunderbird V6-232 3.8L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Intake Manifold

Intake Manifold

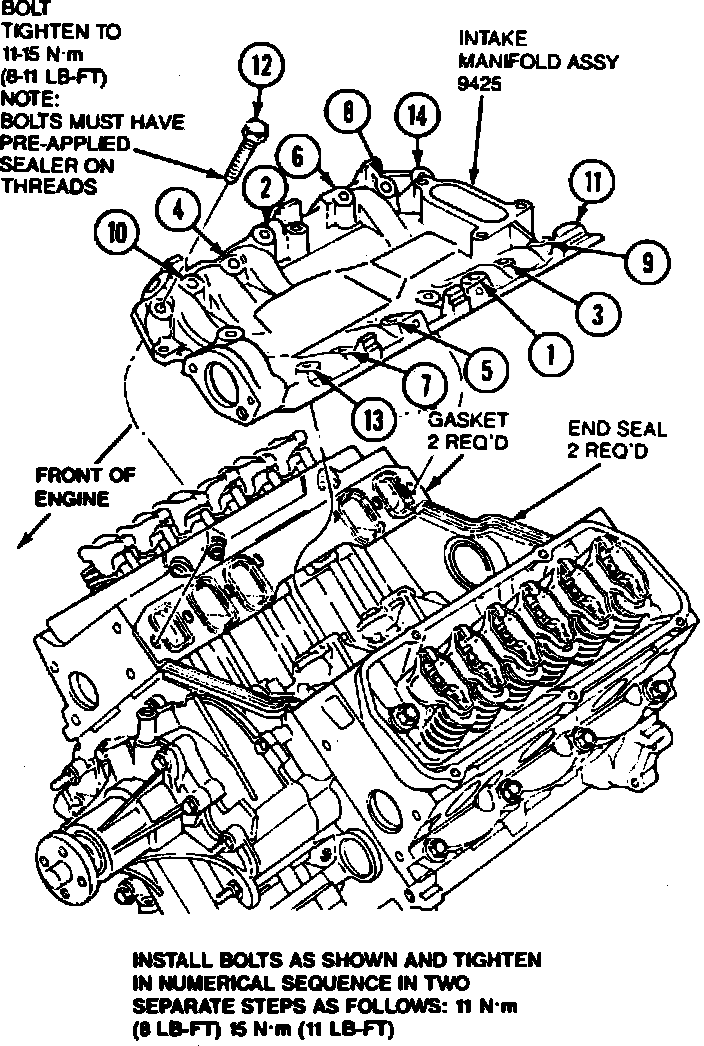

Fig. 4 Intake Manifold Tightening Sequence. Supercharged Engines:
