X - Integrated Relay Control Module
>>
X - Testing Schematic
>>
With Supercharger
With Supercharger

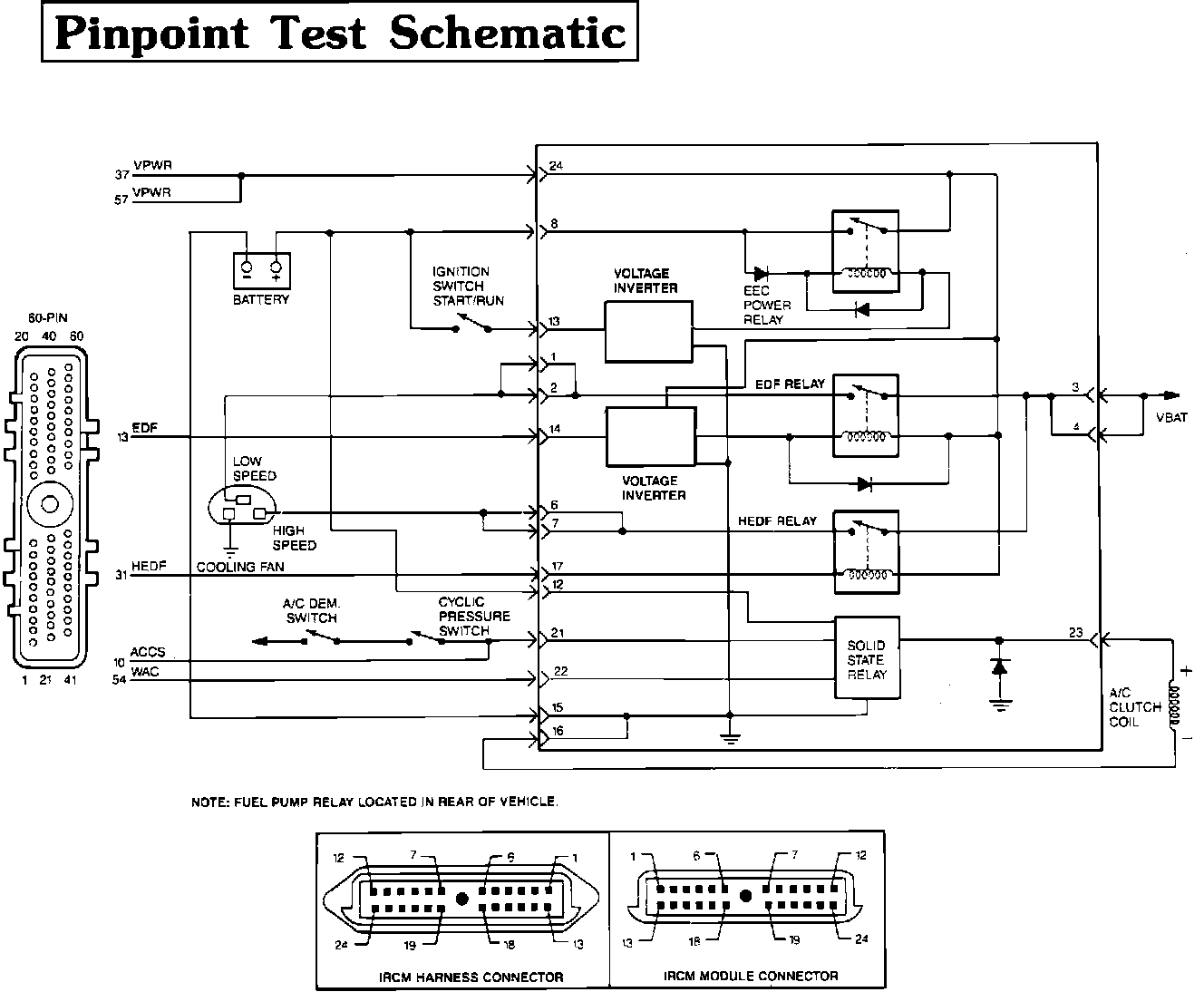

Pinpoint Test Schematic:
