PB - Spark Timing Check - DIS
>>
PB - Testing Schematic
PB - Testing Schematic

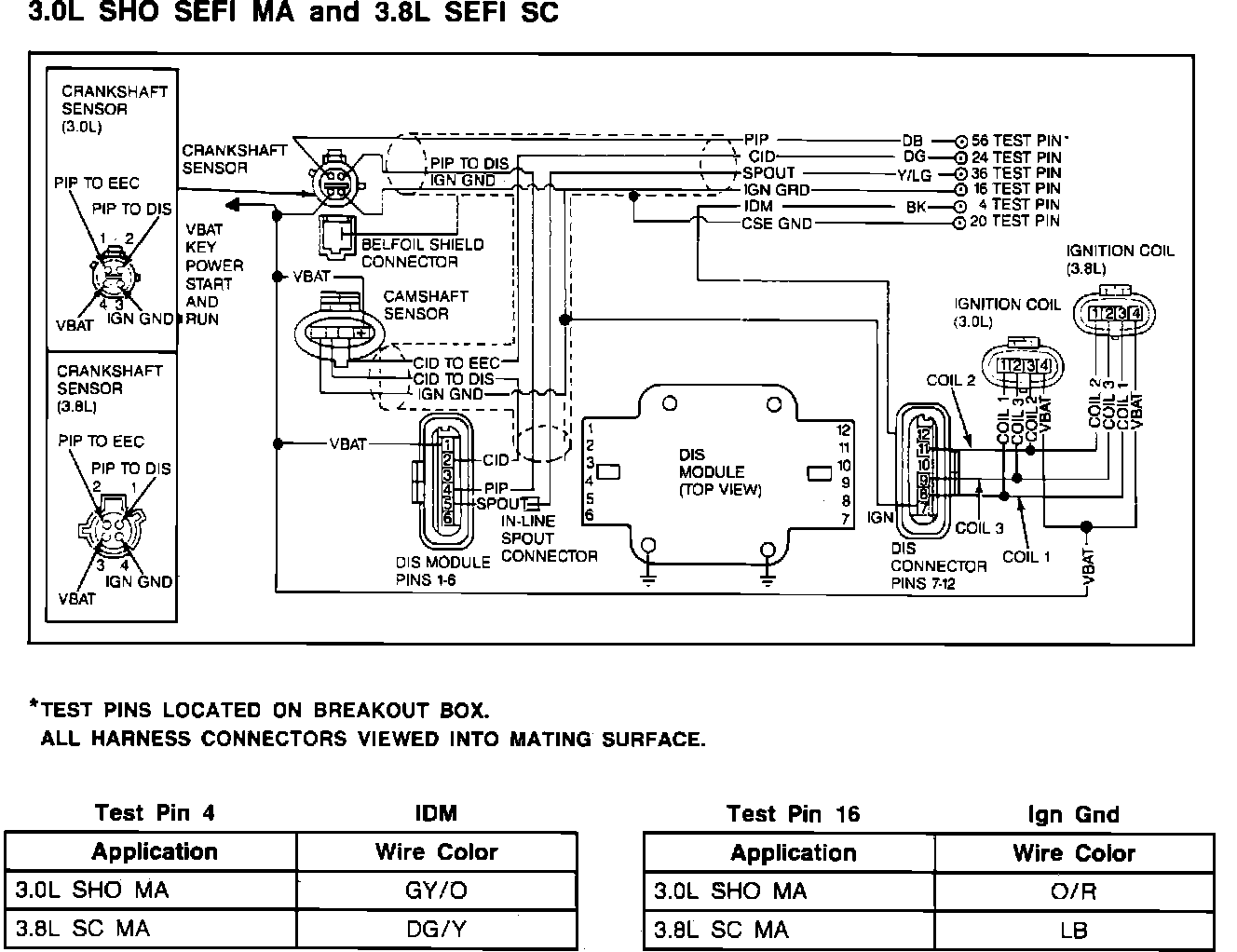

Pinpoint Test Schematic:
