Electronic Climate Control

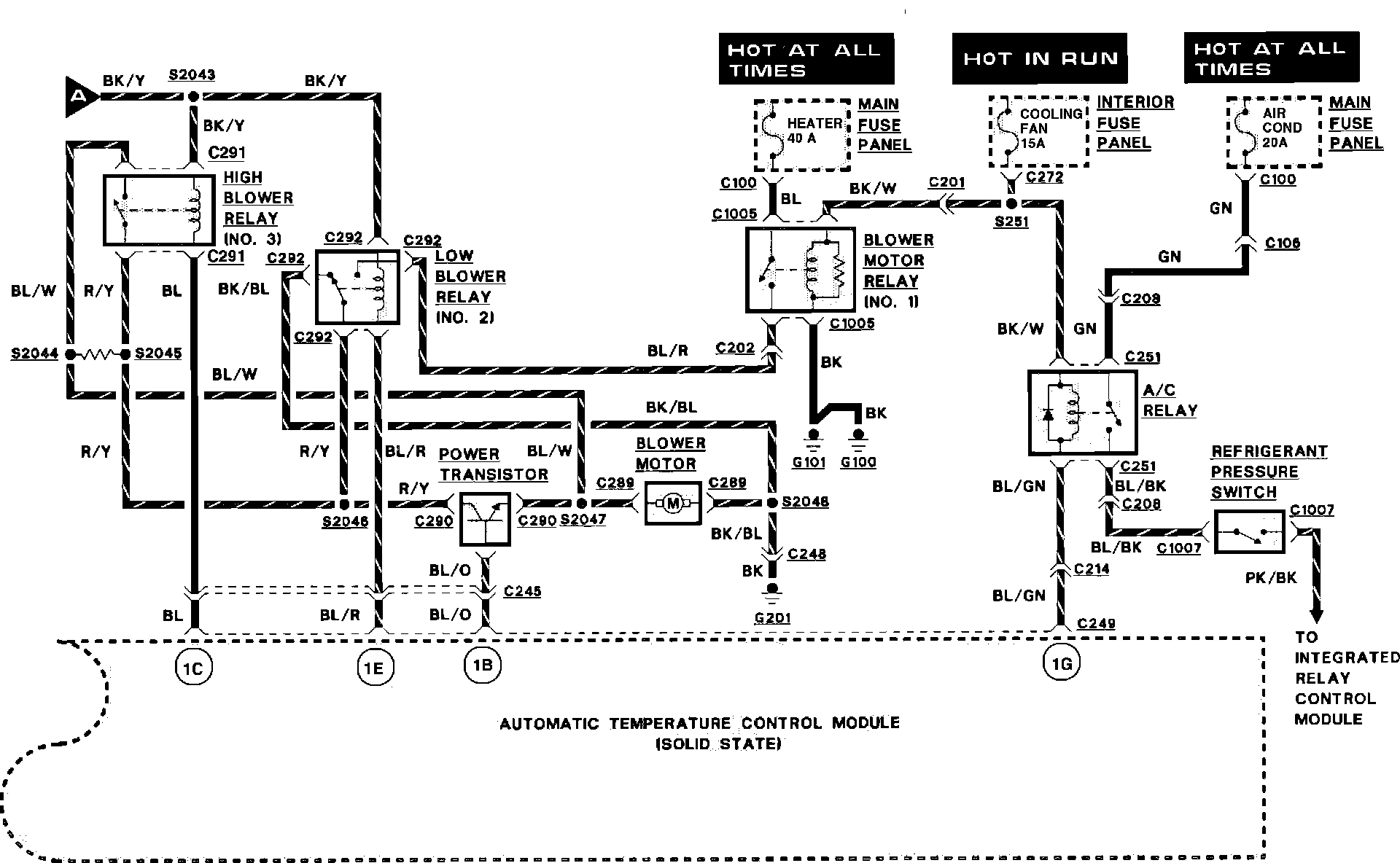

Air Conditioning & Heater Wiring Circuit. ATCS:

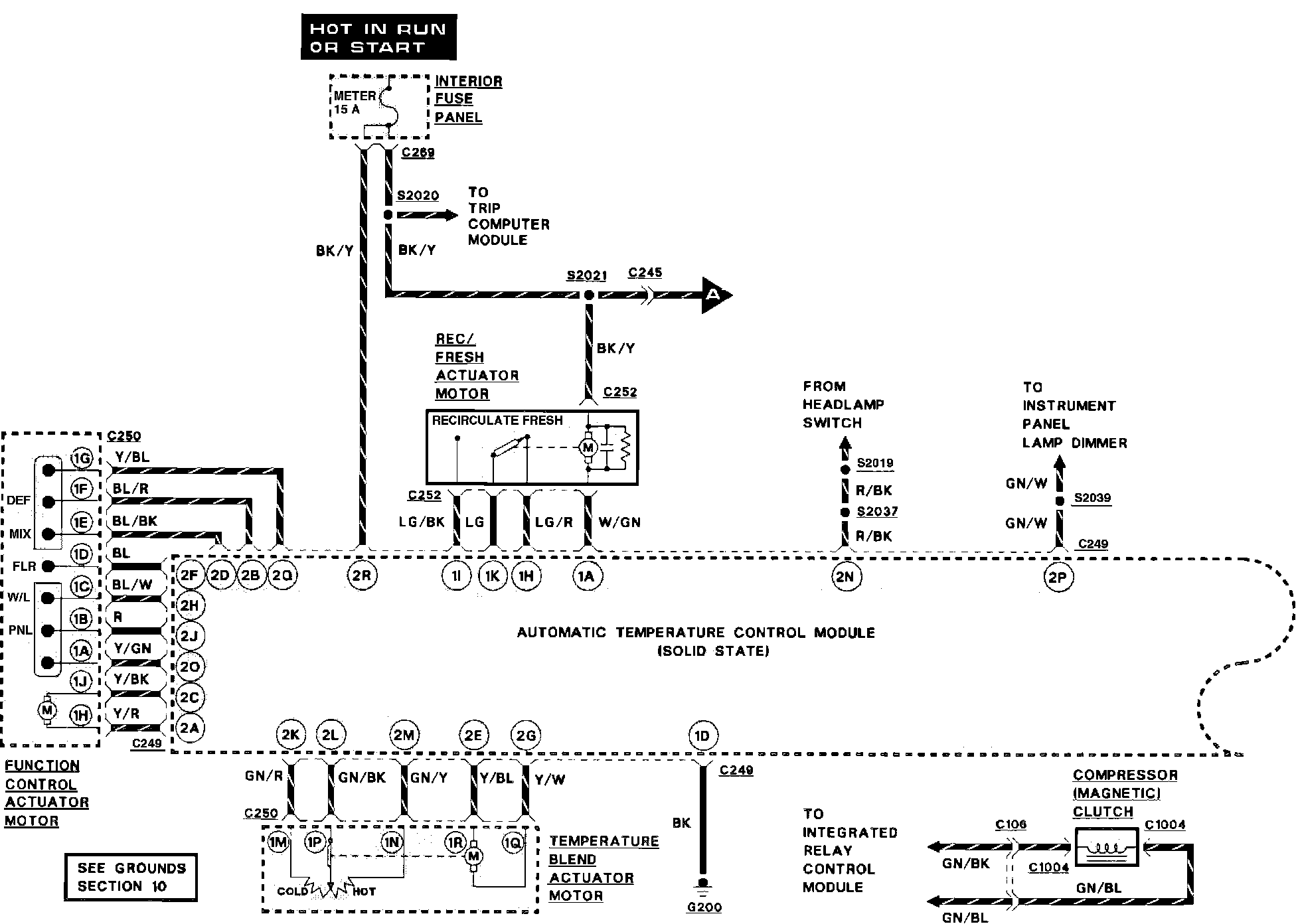

Air Conditioning & Heater Wiring Circuit. ATCS:
