Engine Controls
>>
Manual
Manual

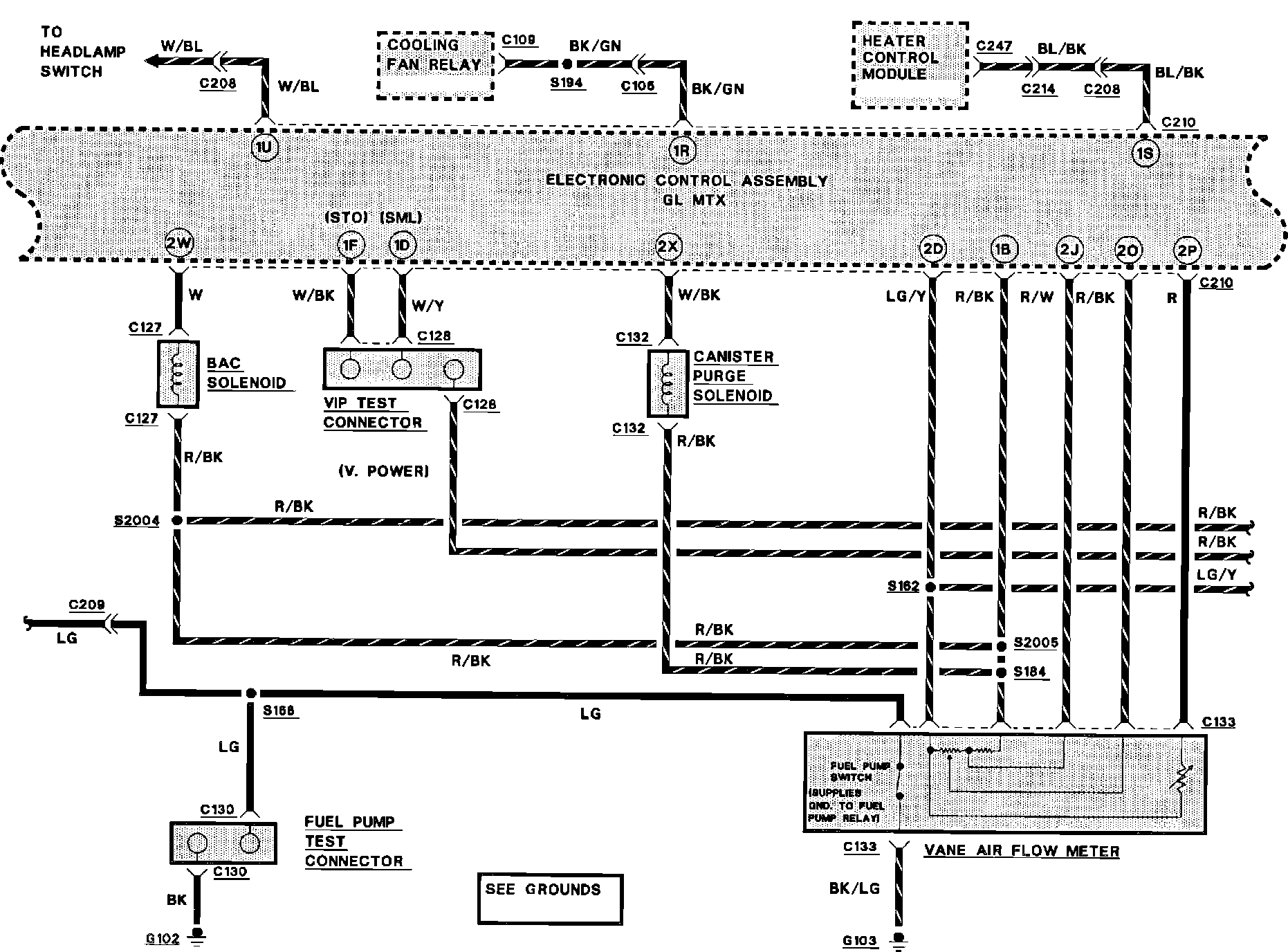

Engine Controls (GL, MTX):

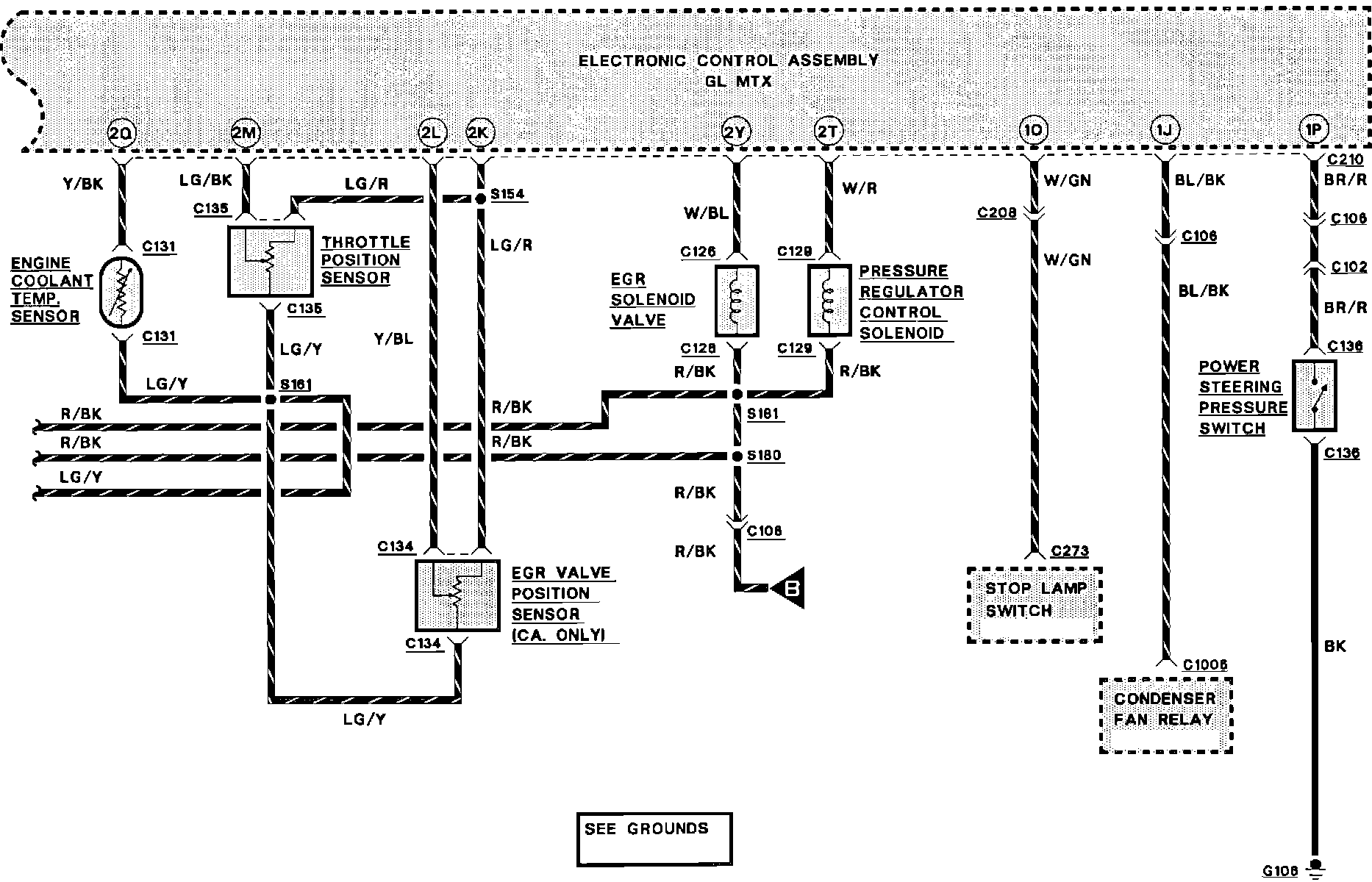

Engine Controls (GL, MTX):

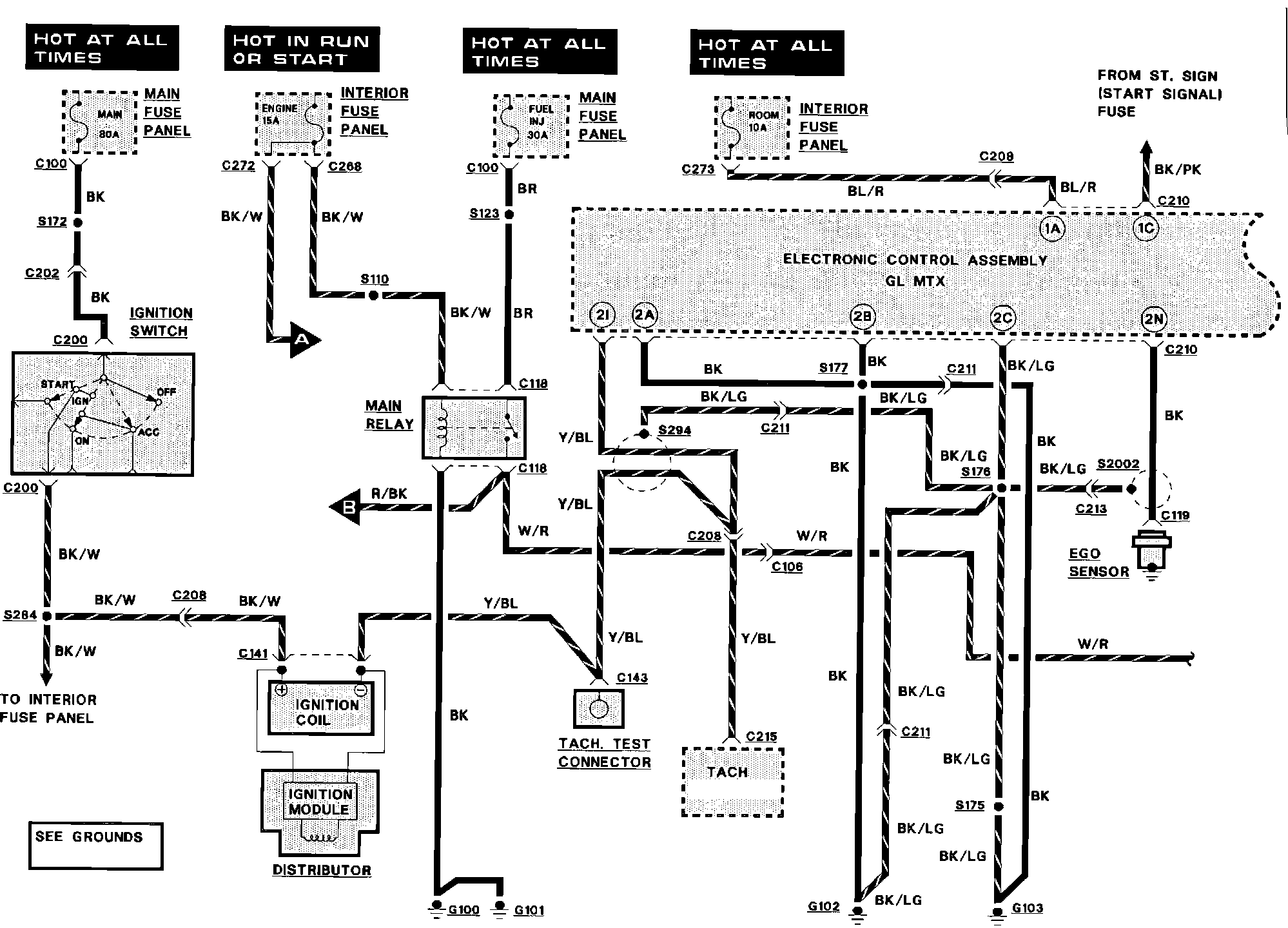

Engine Controls (GL, MTX):

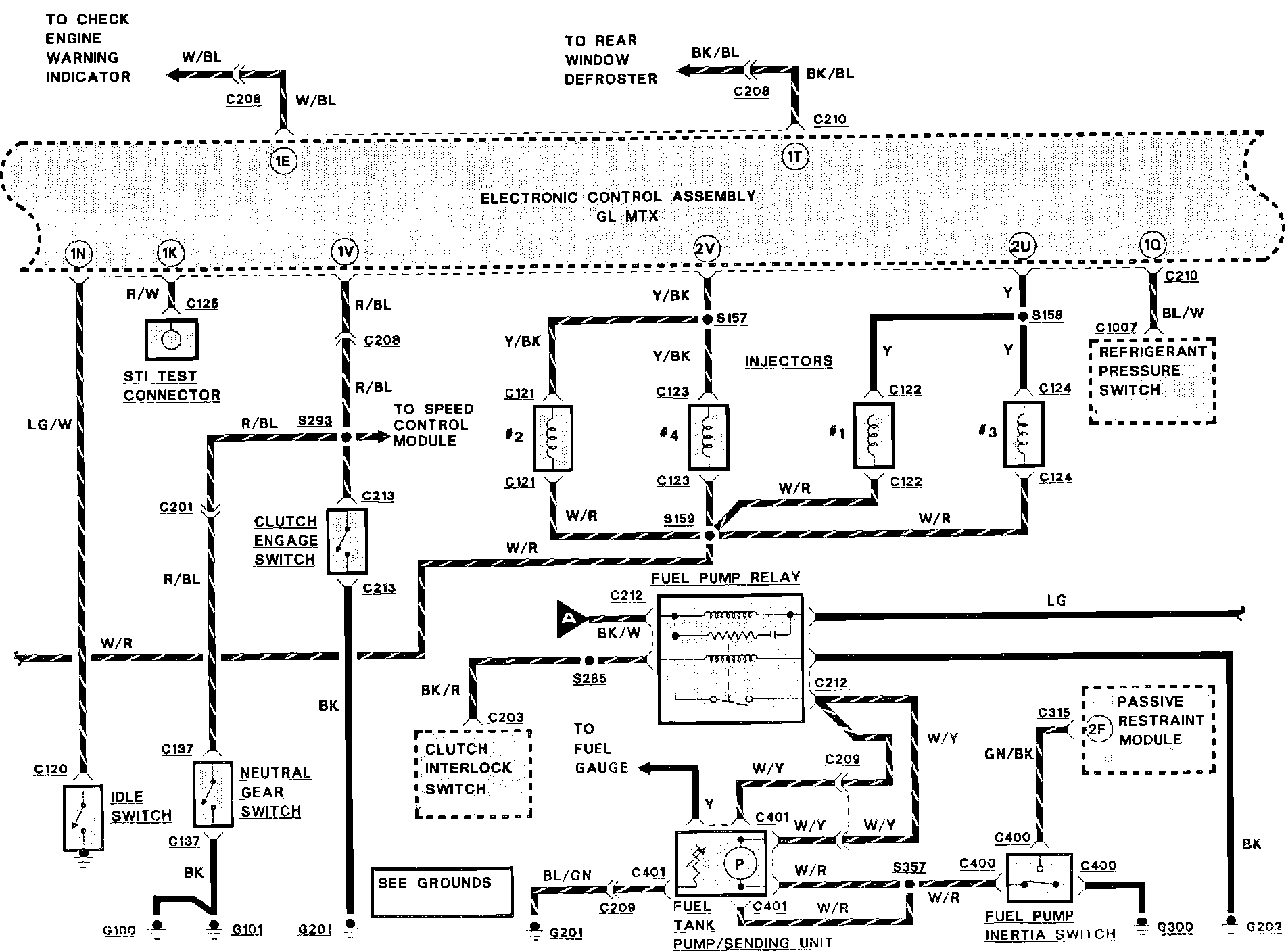

Engine Controls (GL, MTX):
