Automatic

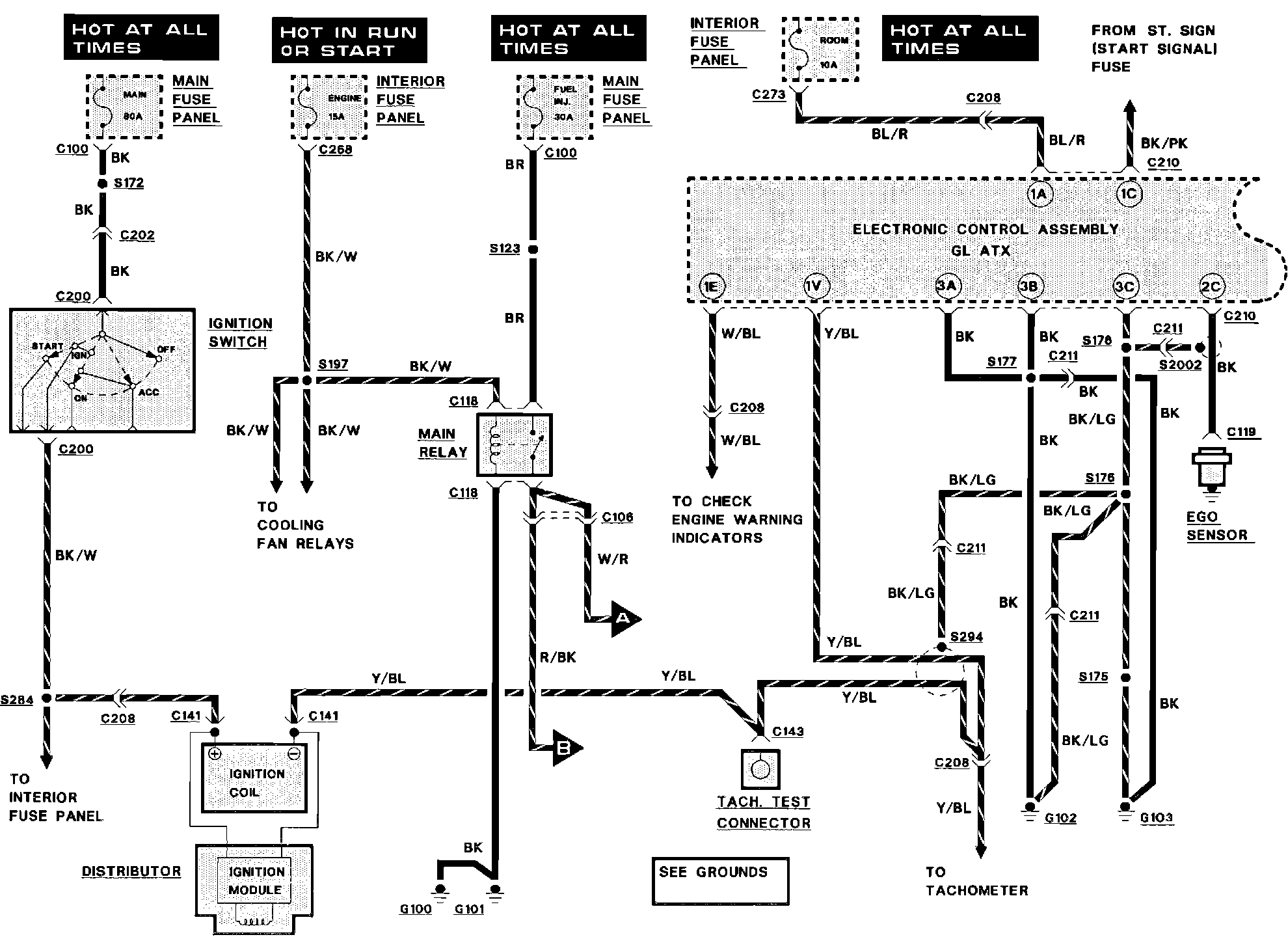

Engine Controls (GL, ATX):

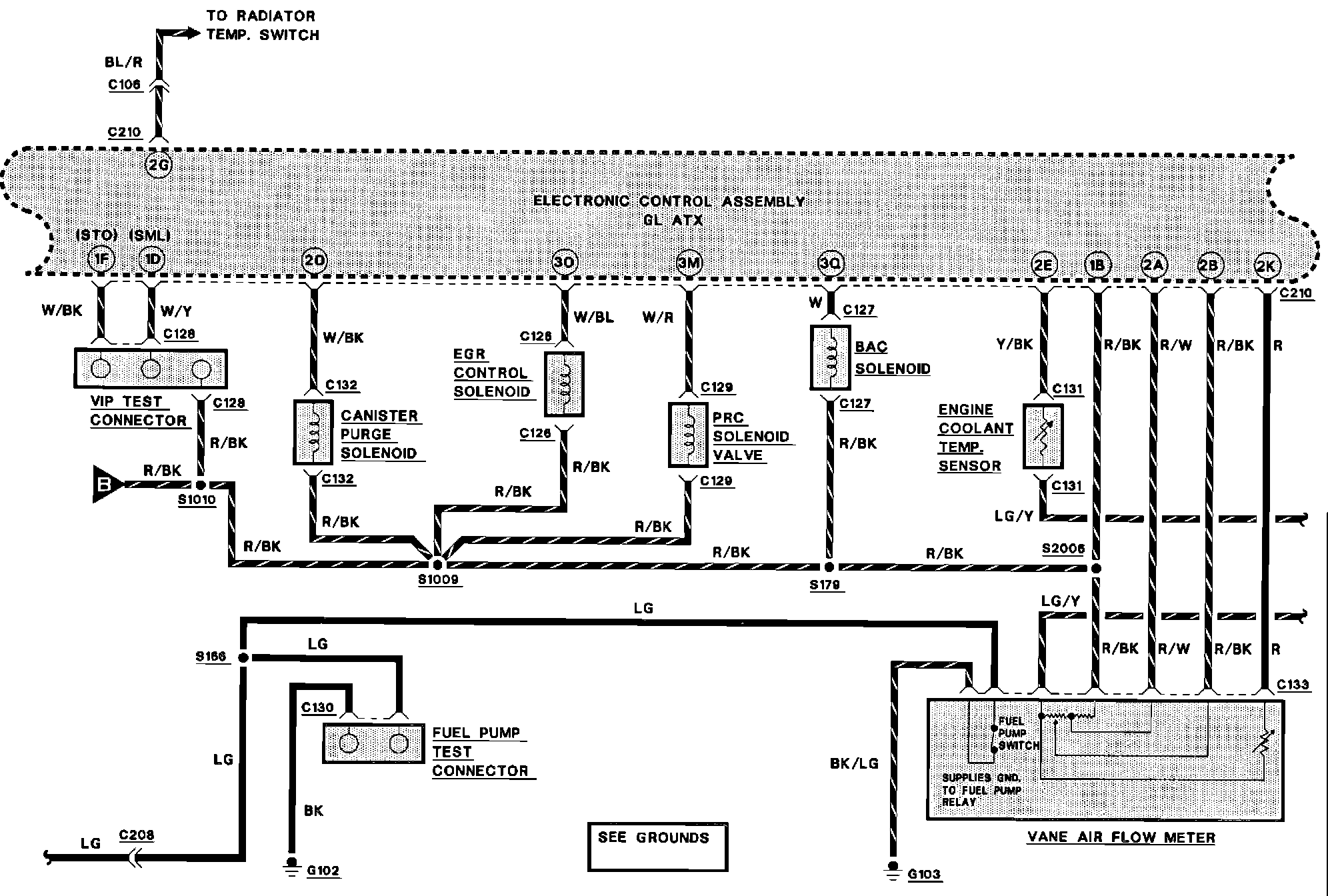

Engine Controls (GL, ATX):

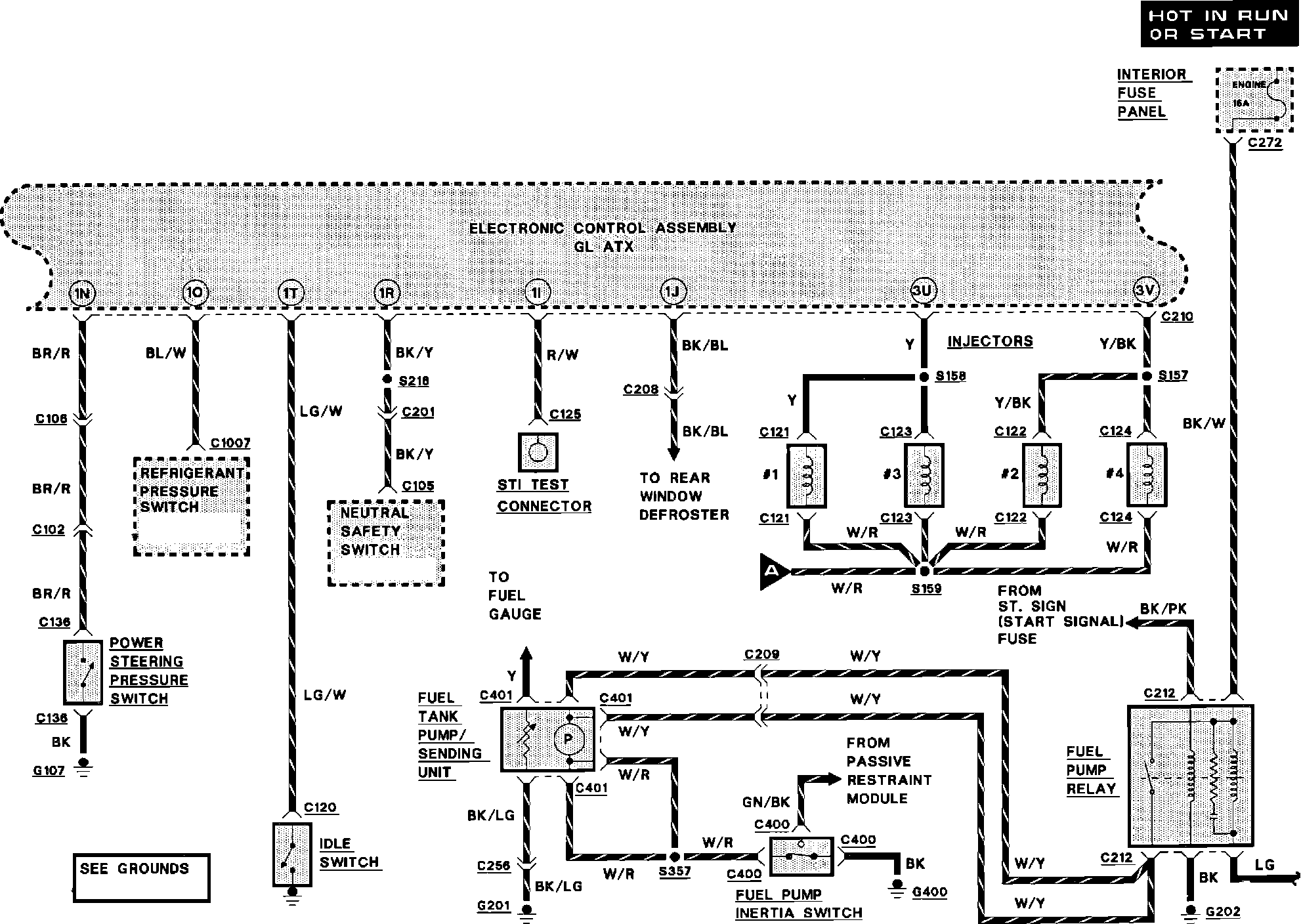

Engine Controls (GL, ATX):

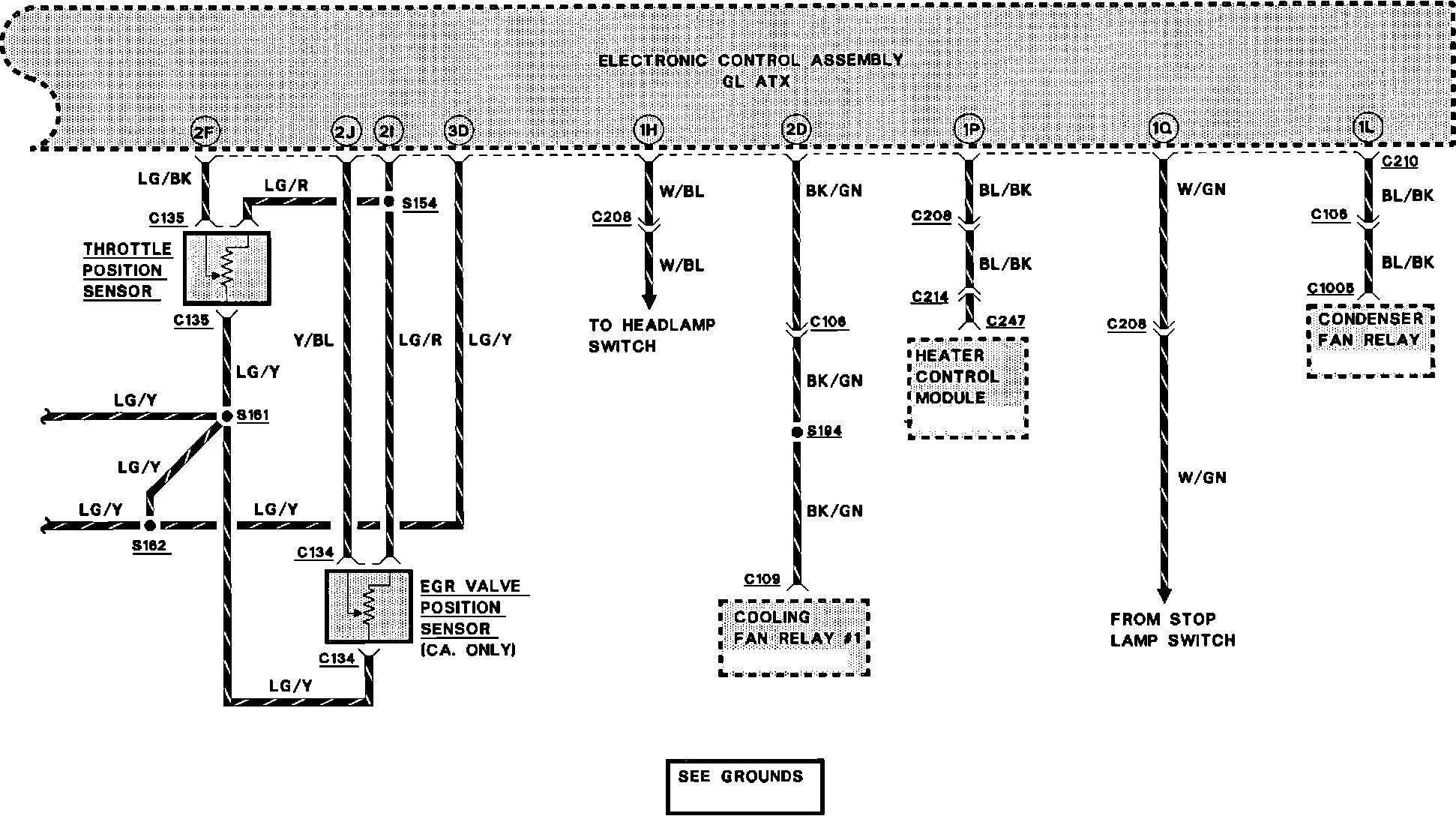

Engine Controls (GL, ATX):
