Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
LX
LX

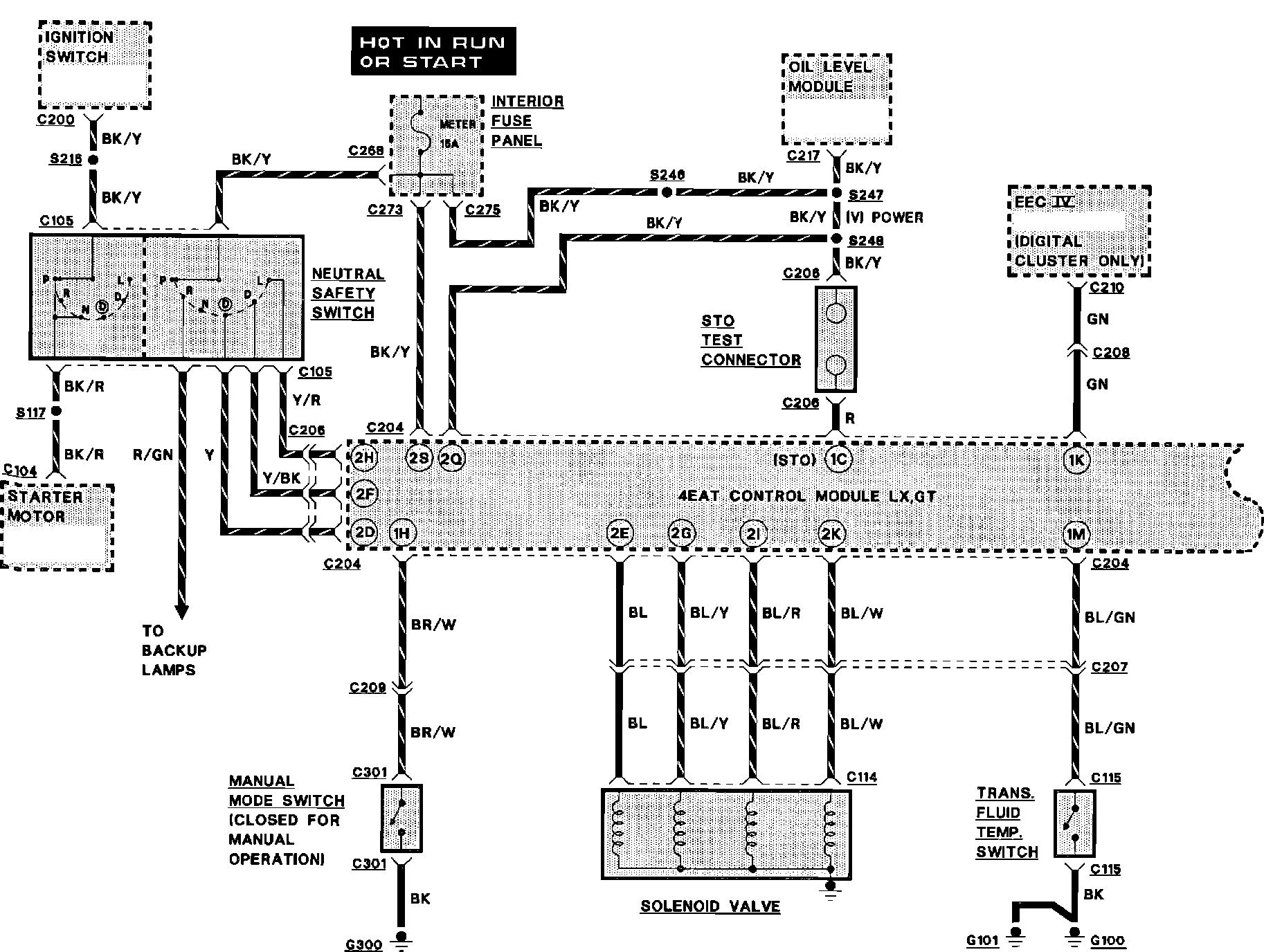

Transmission Controls (GT, LX):

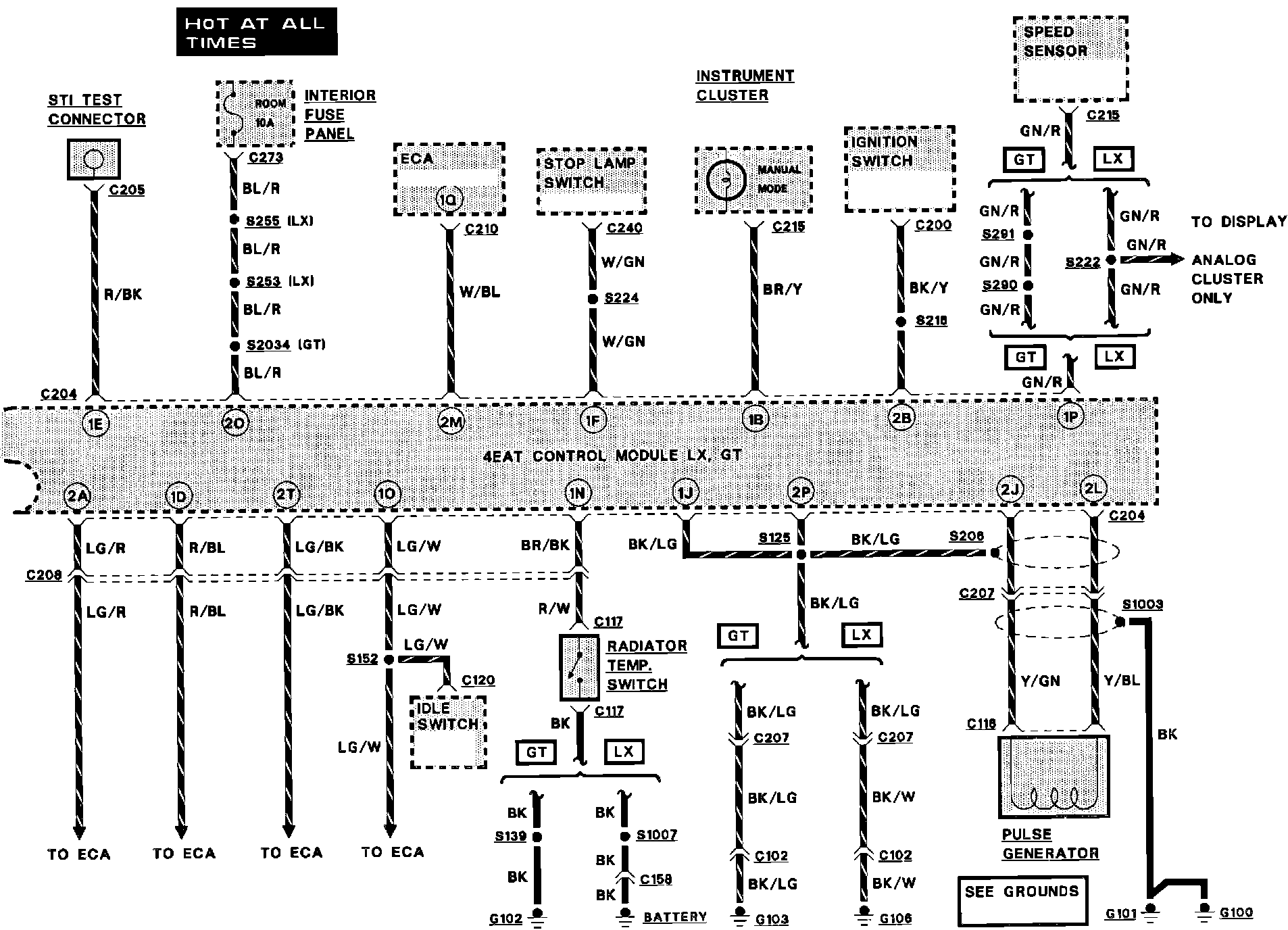

Transmission Controls (GT, LX):
