Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
Engine Controls

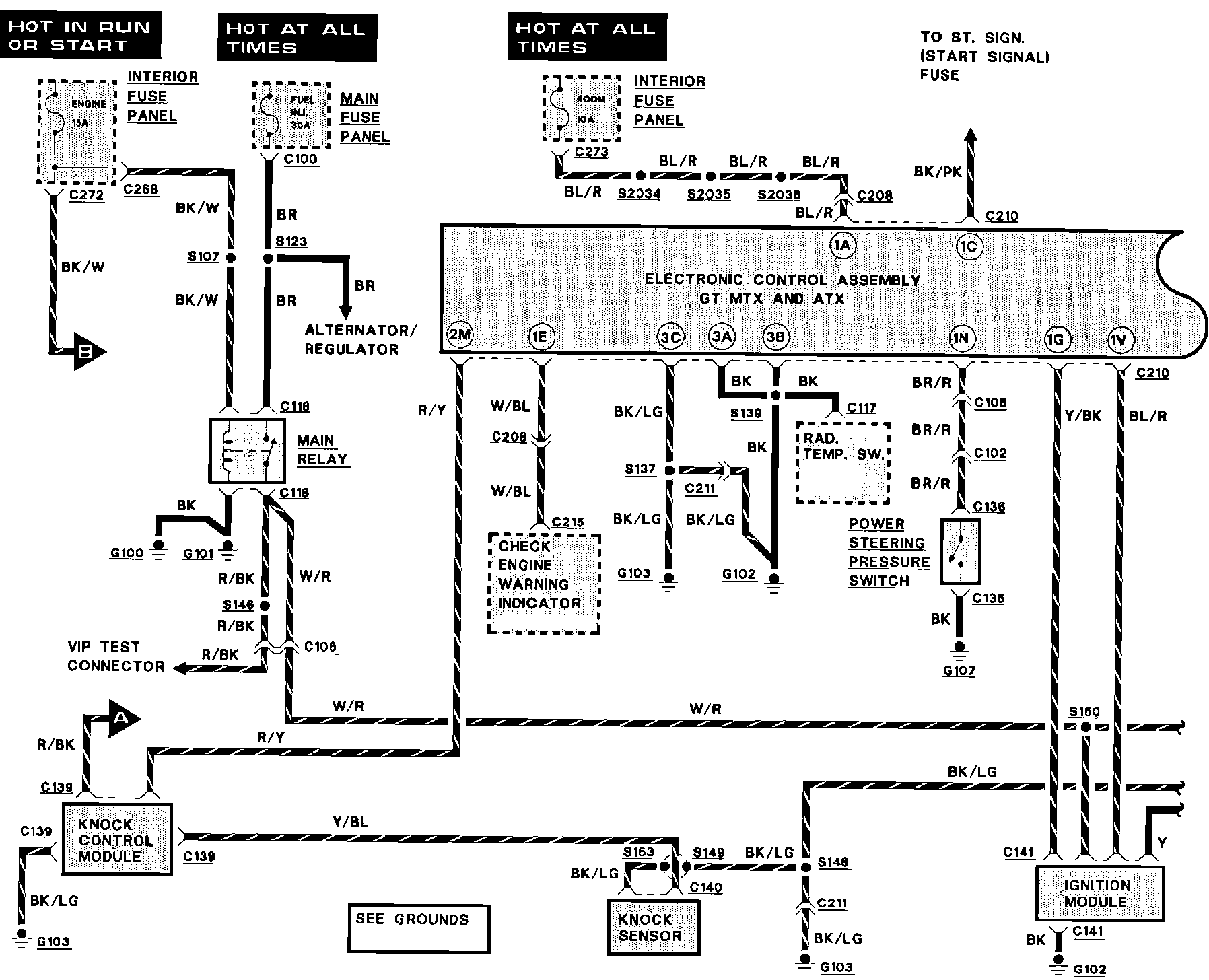

Engine Control (GT):

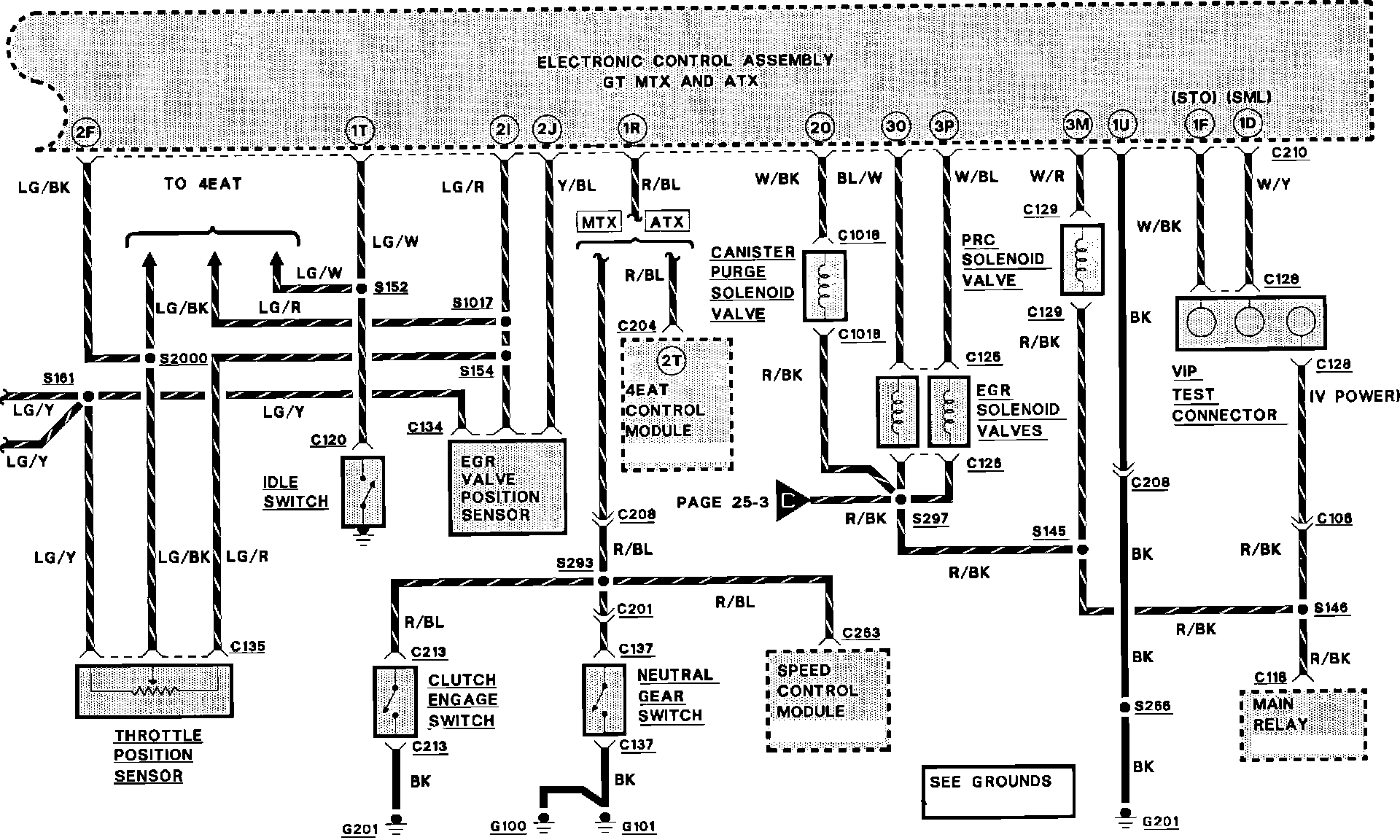

Engine Control (GT):

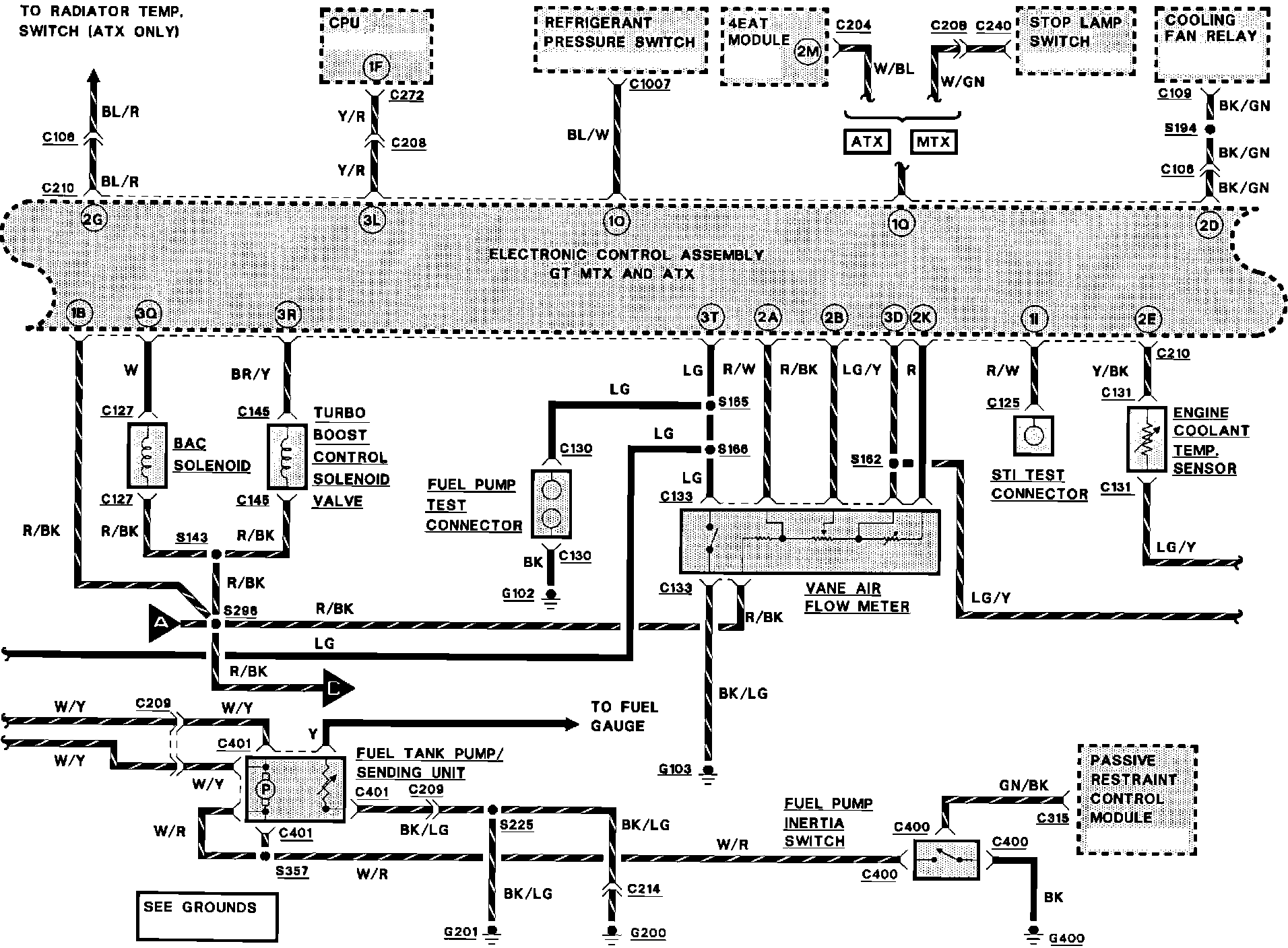

Engine Control (GT):

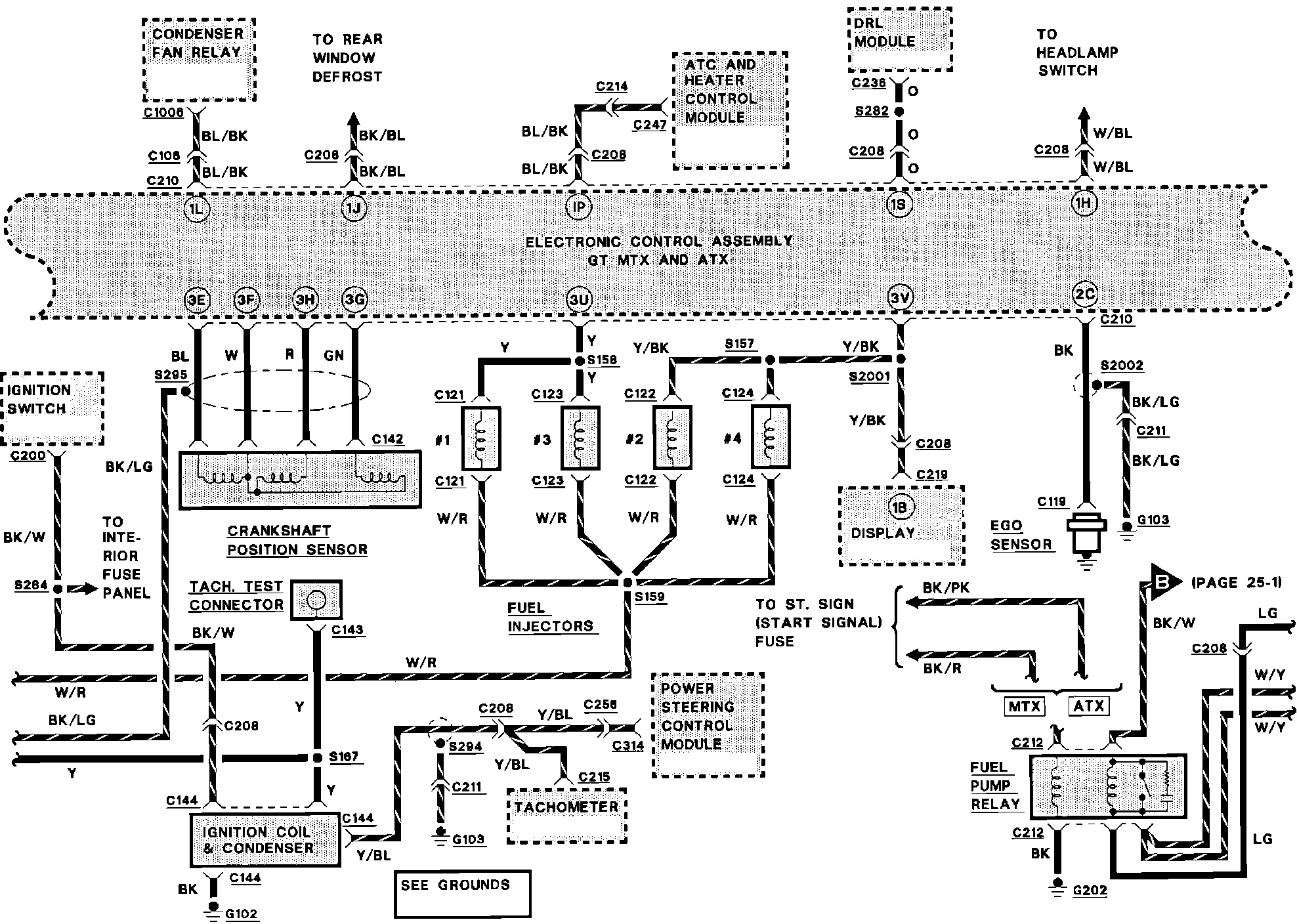

Engine Control (GT):
