Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Exterior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
>>
Less Diagnostic Warning
Less Diagnostic Warning

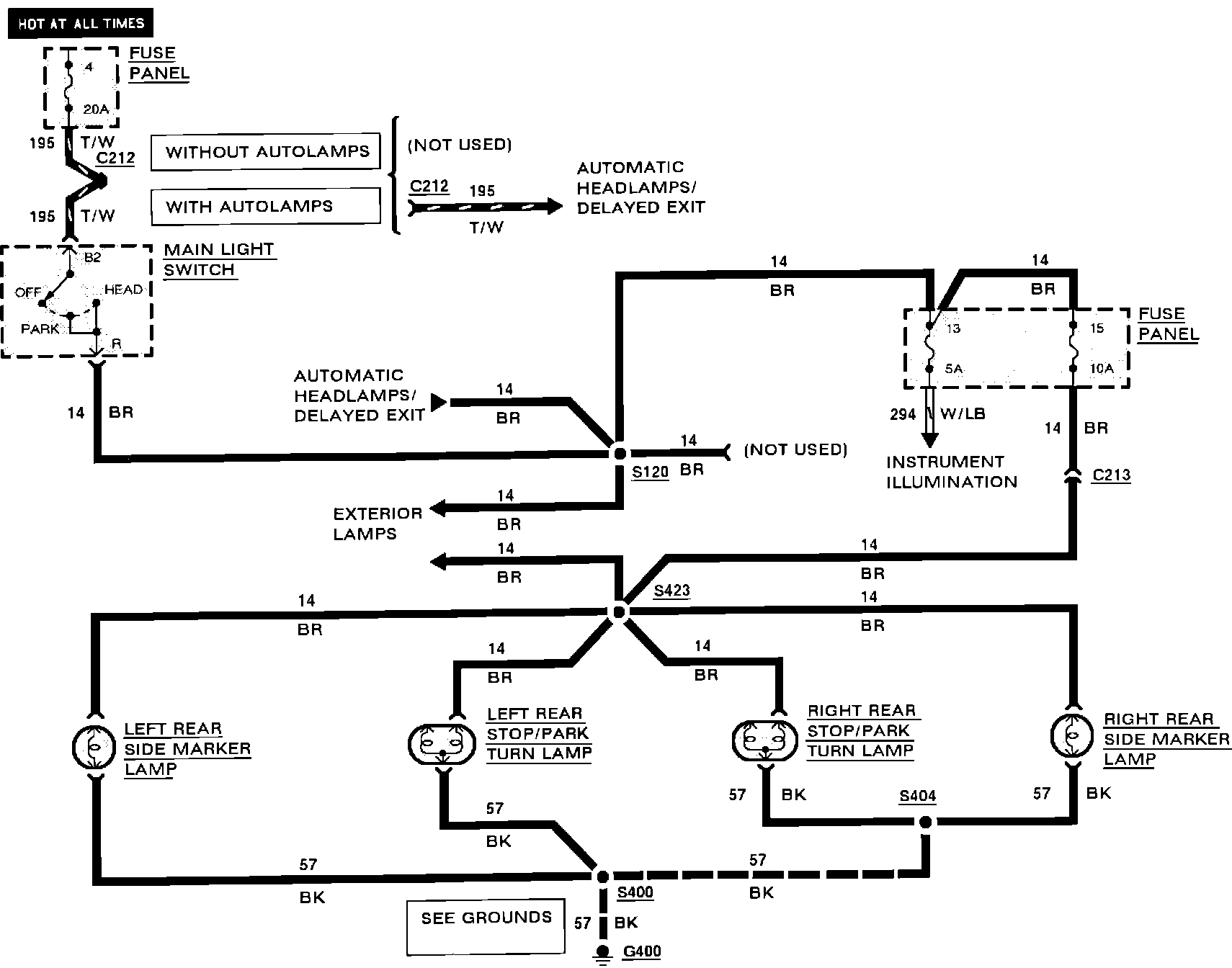

Exterior Lamps Less Diagnostic Warning:

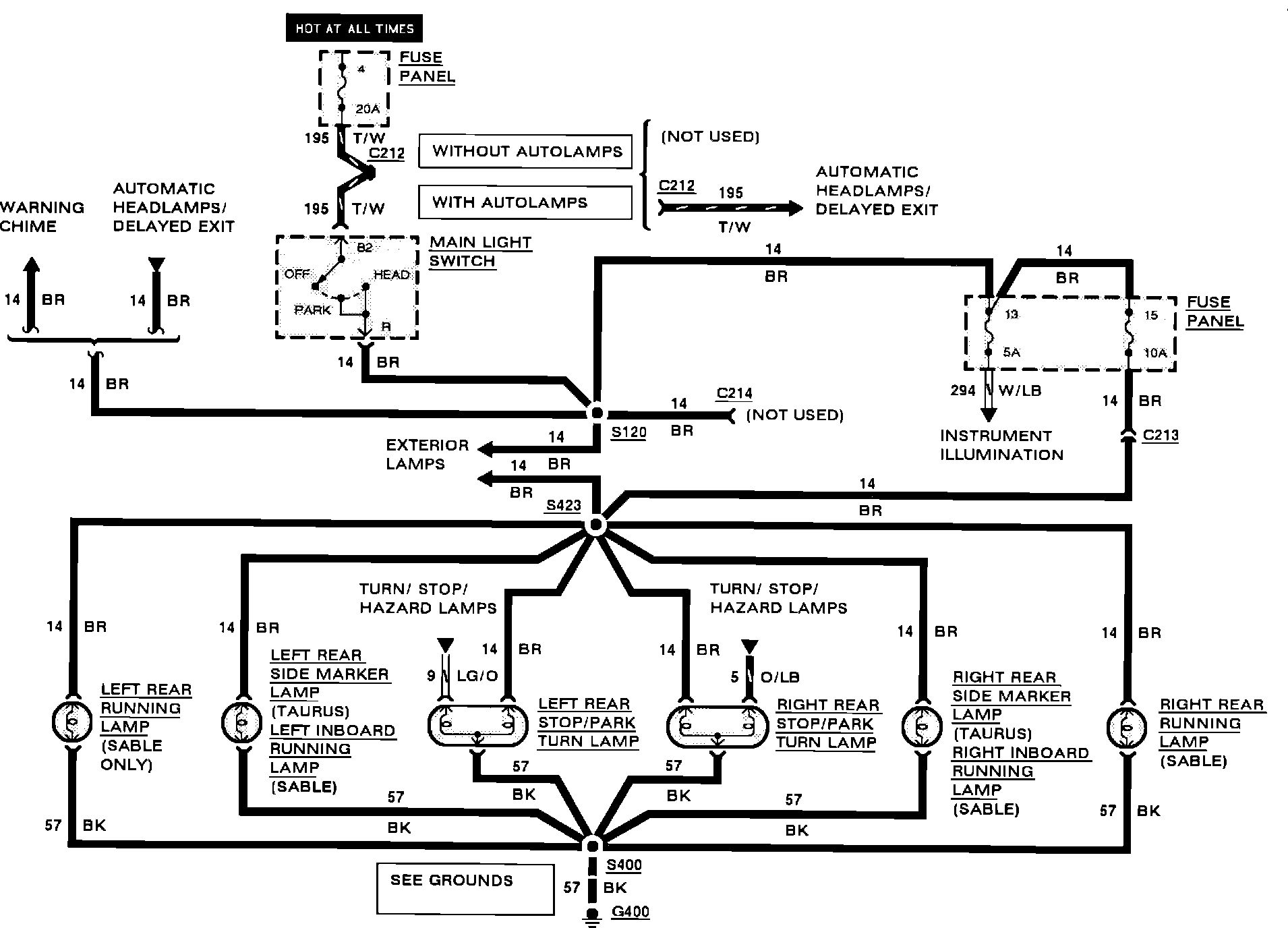

Exterior Lamps Less Diagnostic Warning:
