Home
>>
Ford
>>
1990
>>
Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Shift-Lock Control
Shift-Lock Control

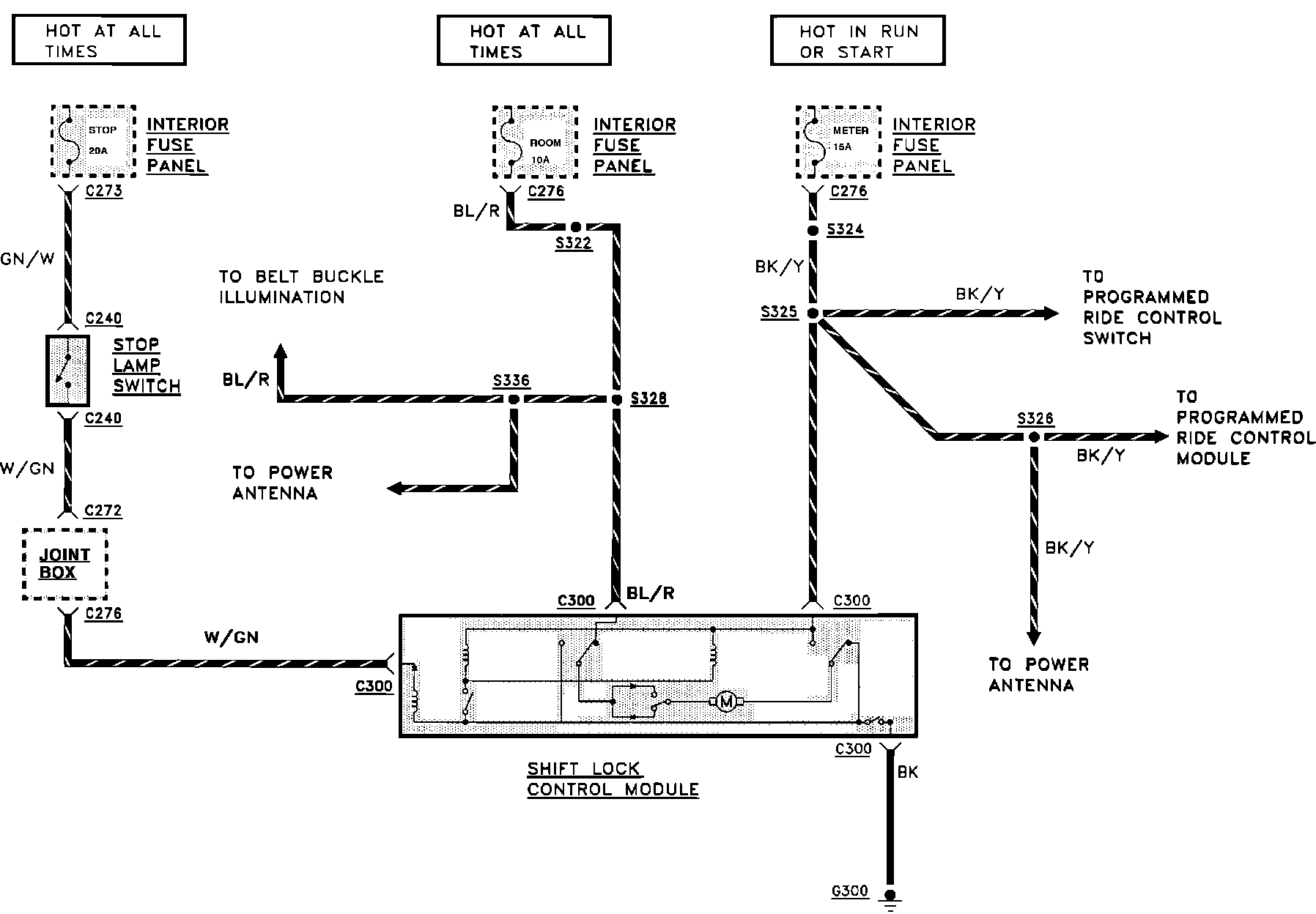

Shift-Lock Control:
