DC - Mass Air Flow (MAF) Sensor
>>

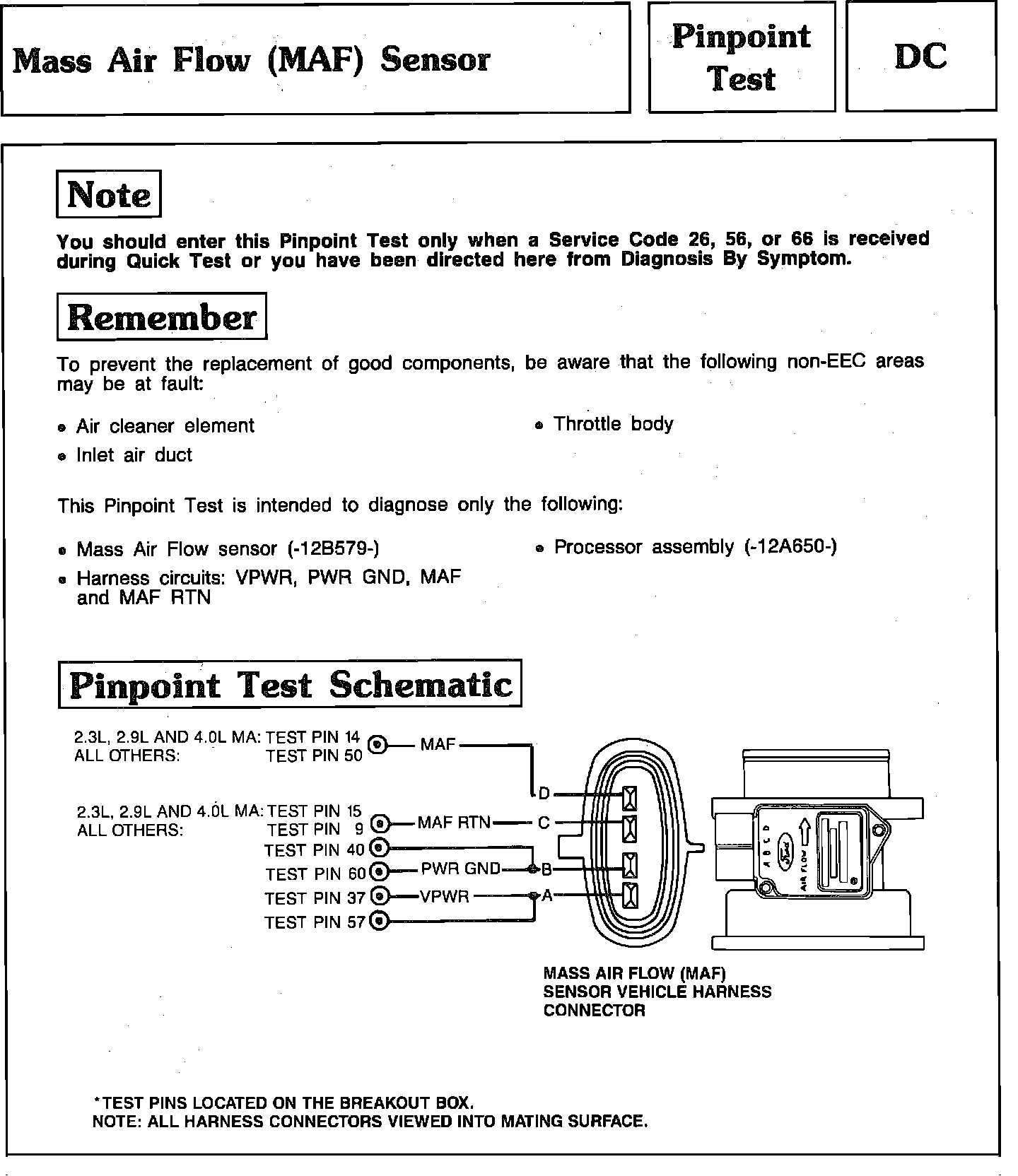

DC - Testing Schematic
DC - Testing Schematic
Pinpoint Test DC - Mass Airflow Sensor (MAF):
