Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Ground Distribution >> G202 >> LX Models >> Analog

Analog

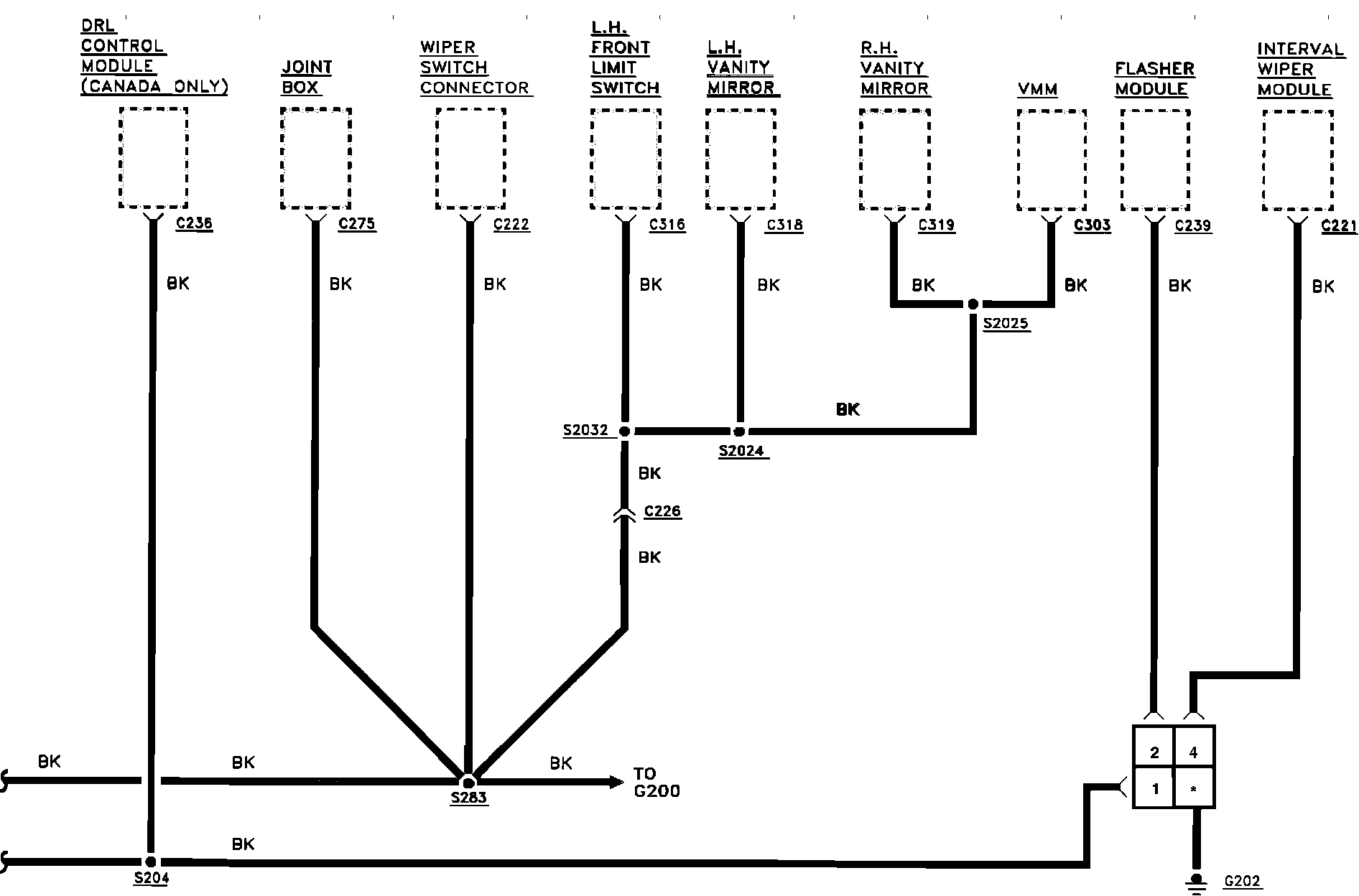

G202 - LX Models, Analog:
