Manual

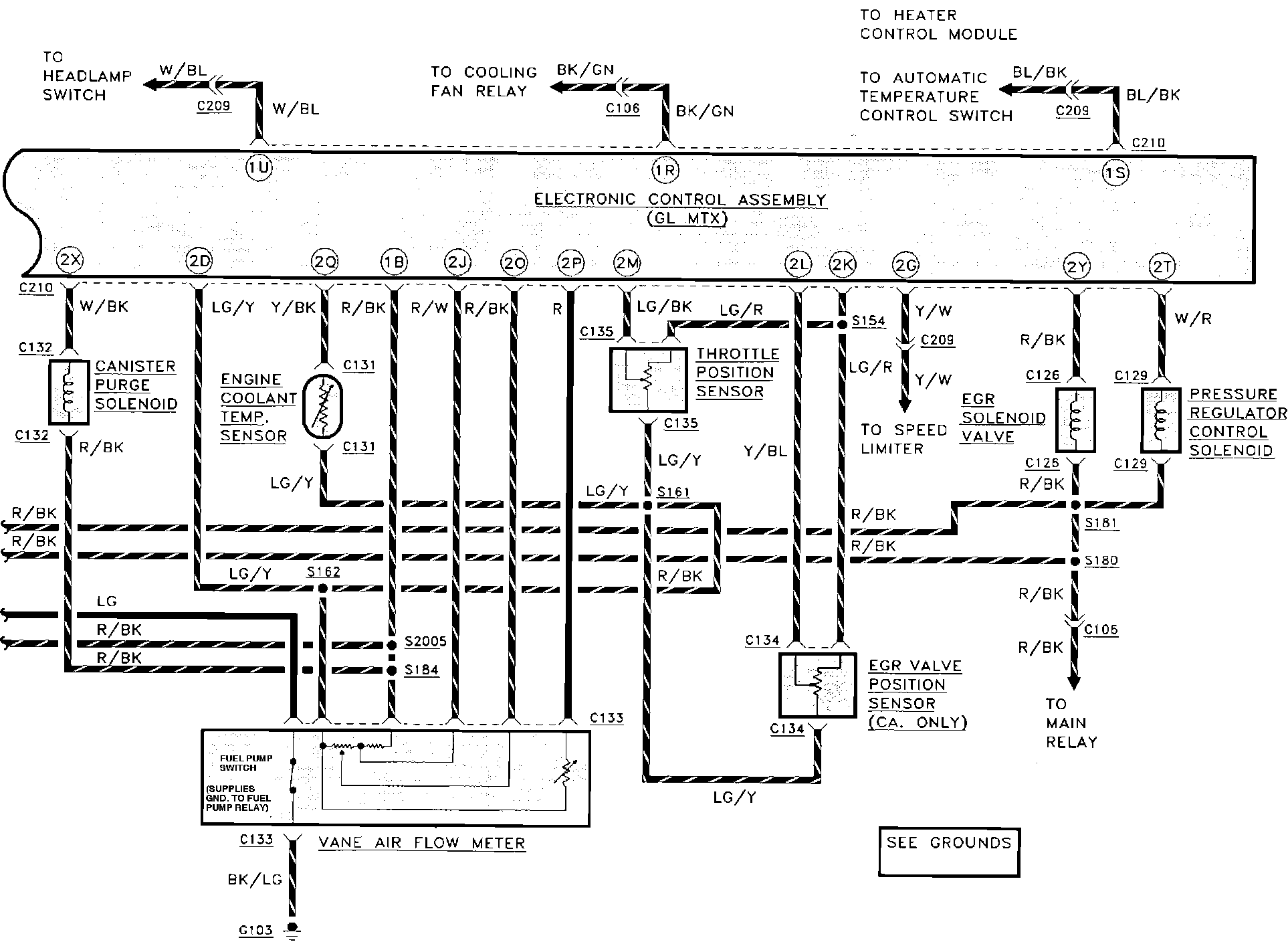

Engine Controls - GL W/Manual Transmission:

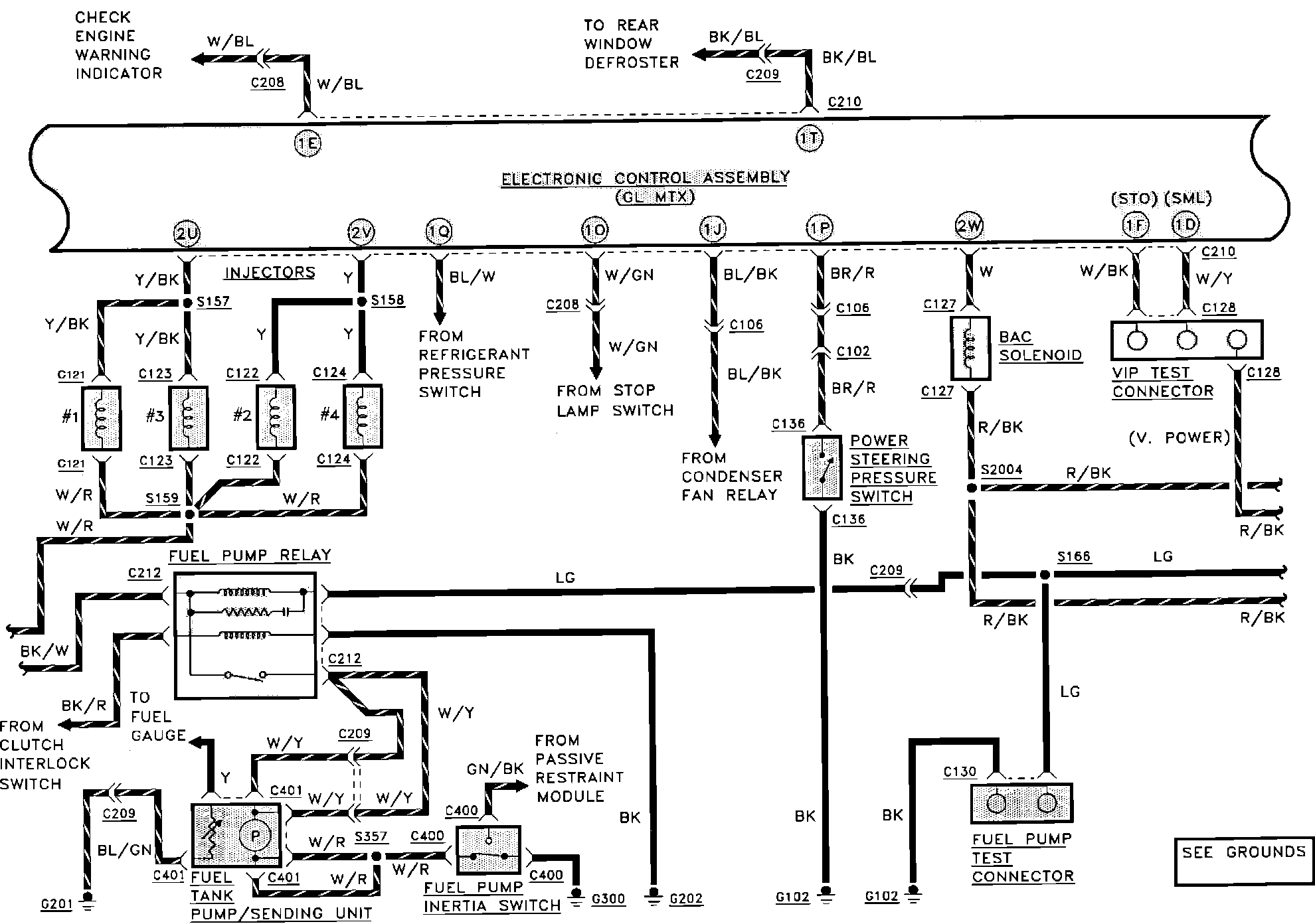

Engine Controls - GL W/Manual Transmission:

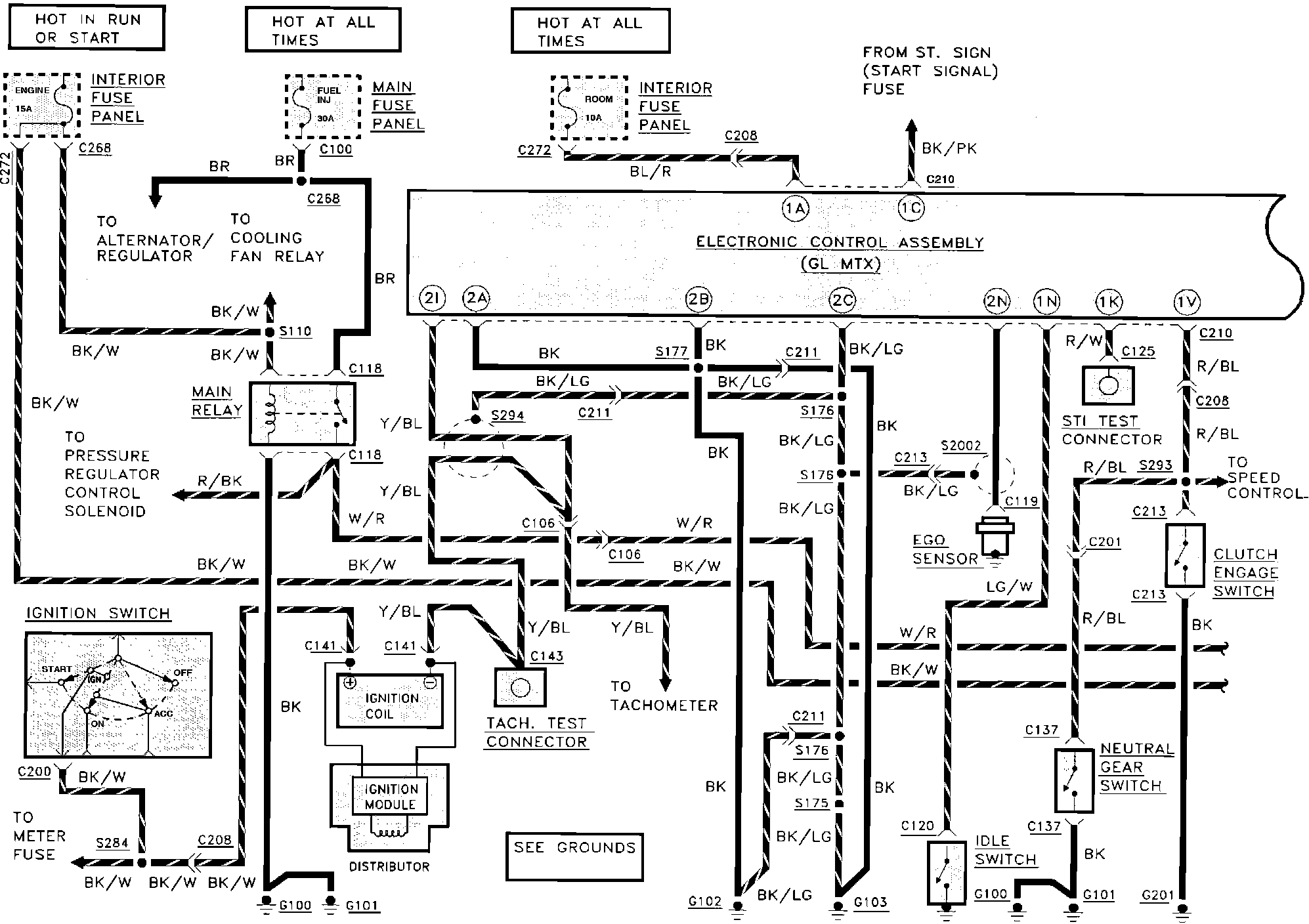

Engine Controls - GL W/Manual Transmission:
