Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Automatic
Automatic

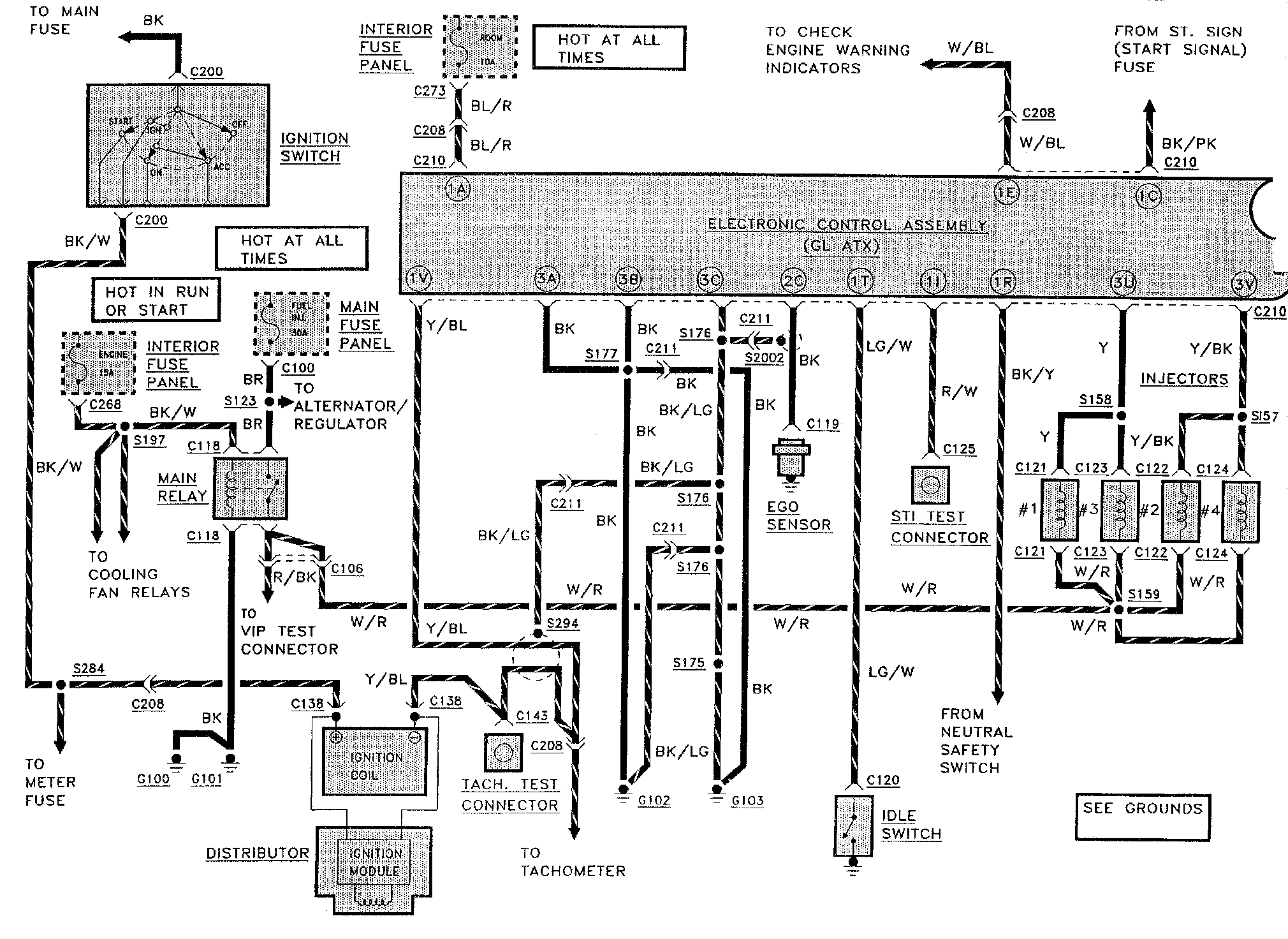

Engine Controls - GL W/Automatic Transmission:

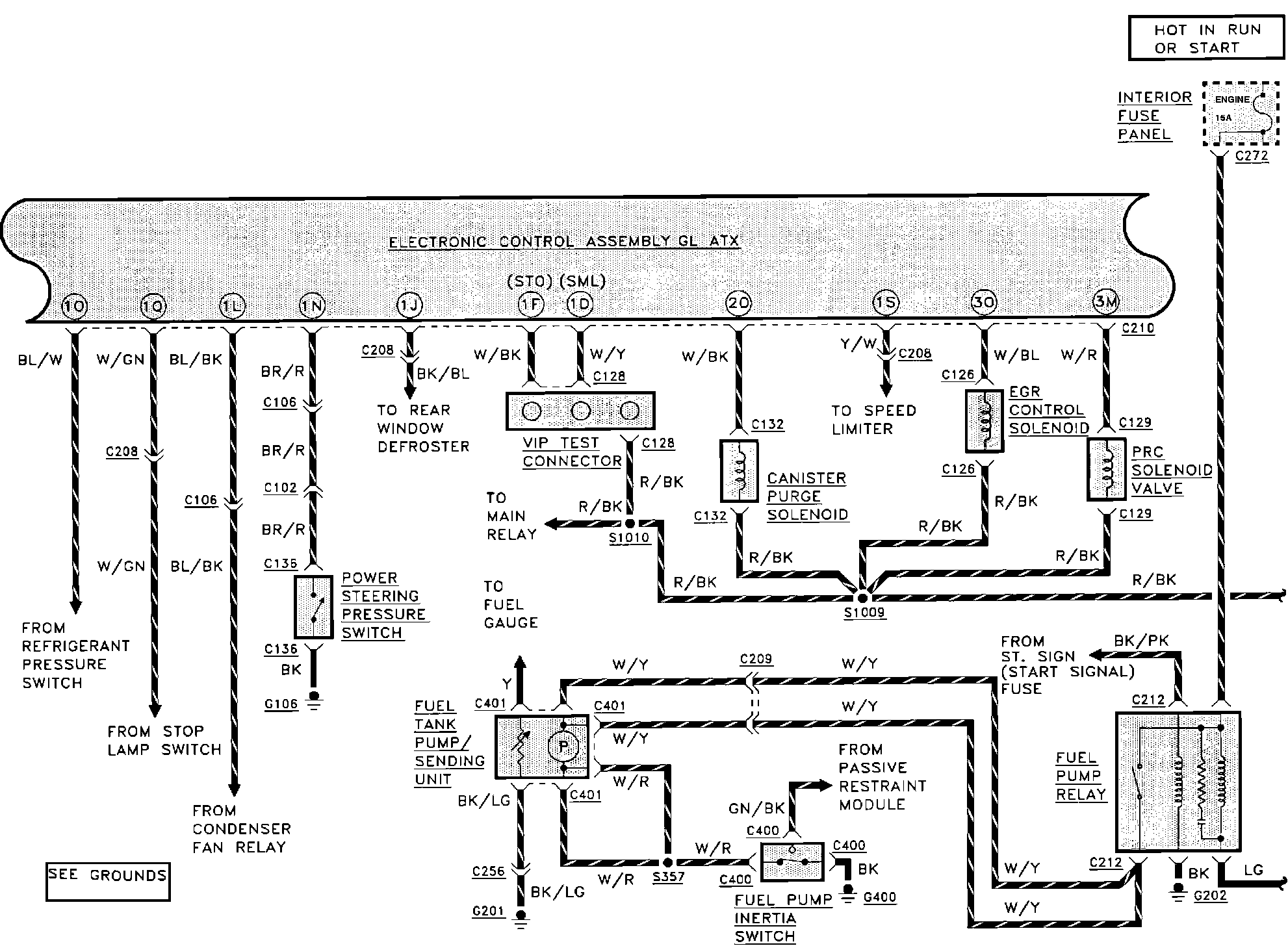

Engine Controls - GL W/Automatic Transmission:

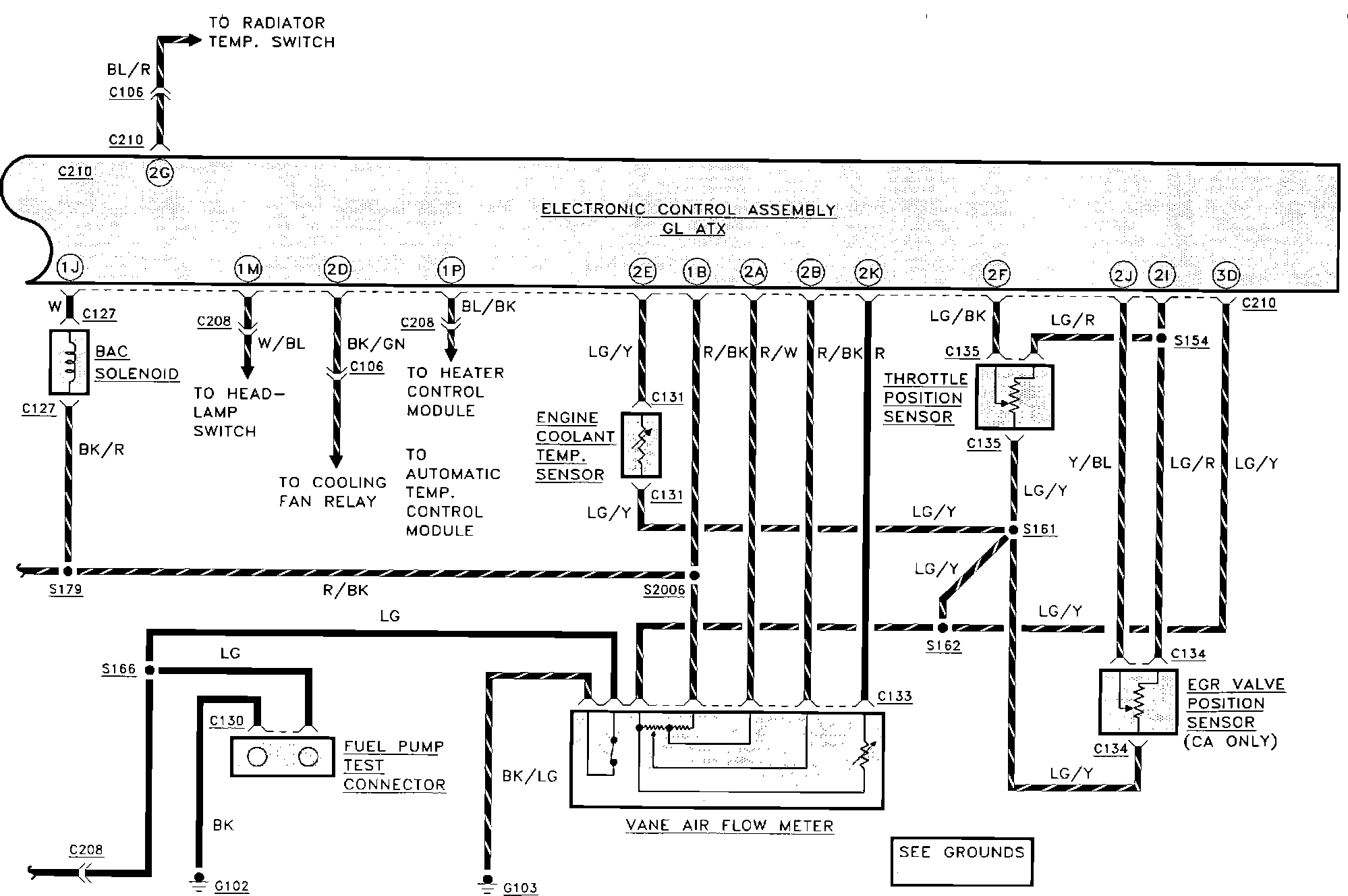

Engine Controls - GL W/Automatic Transmission:
