Engine Controls

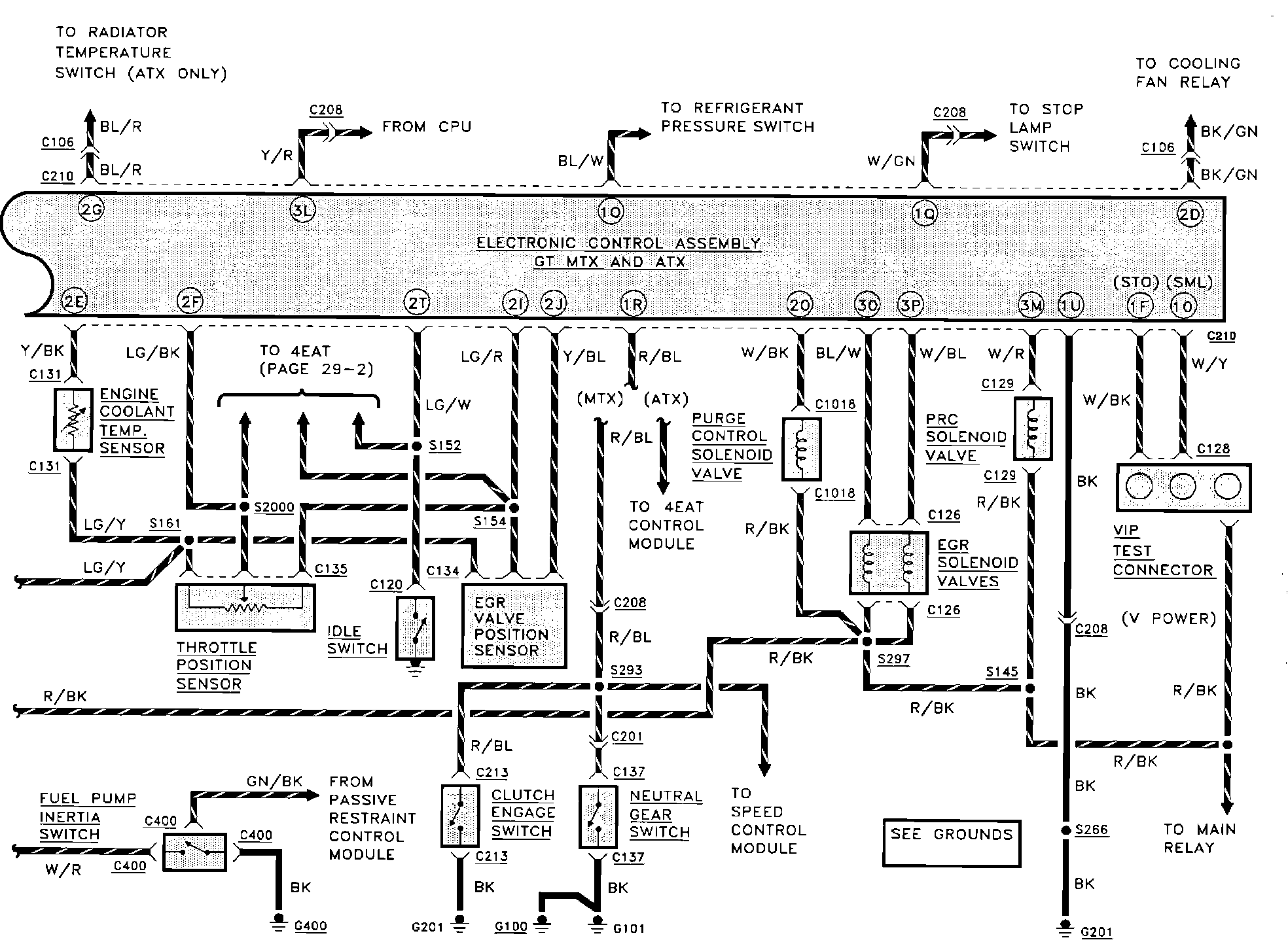

Engine Controls - GT Models:

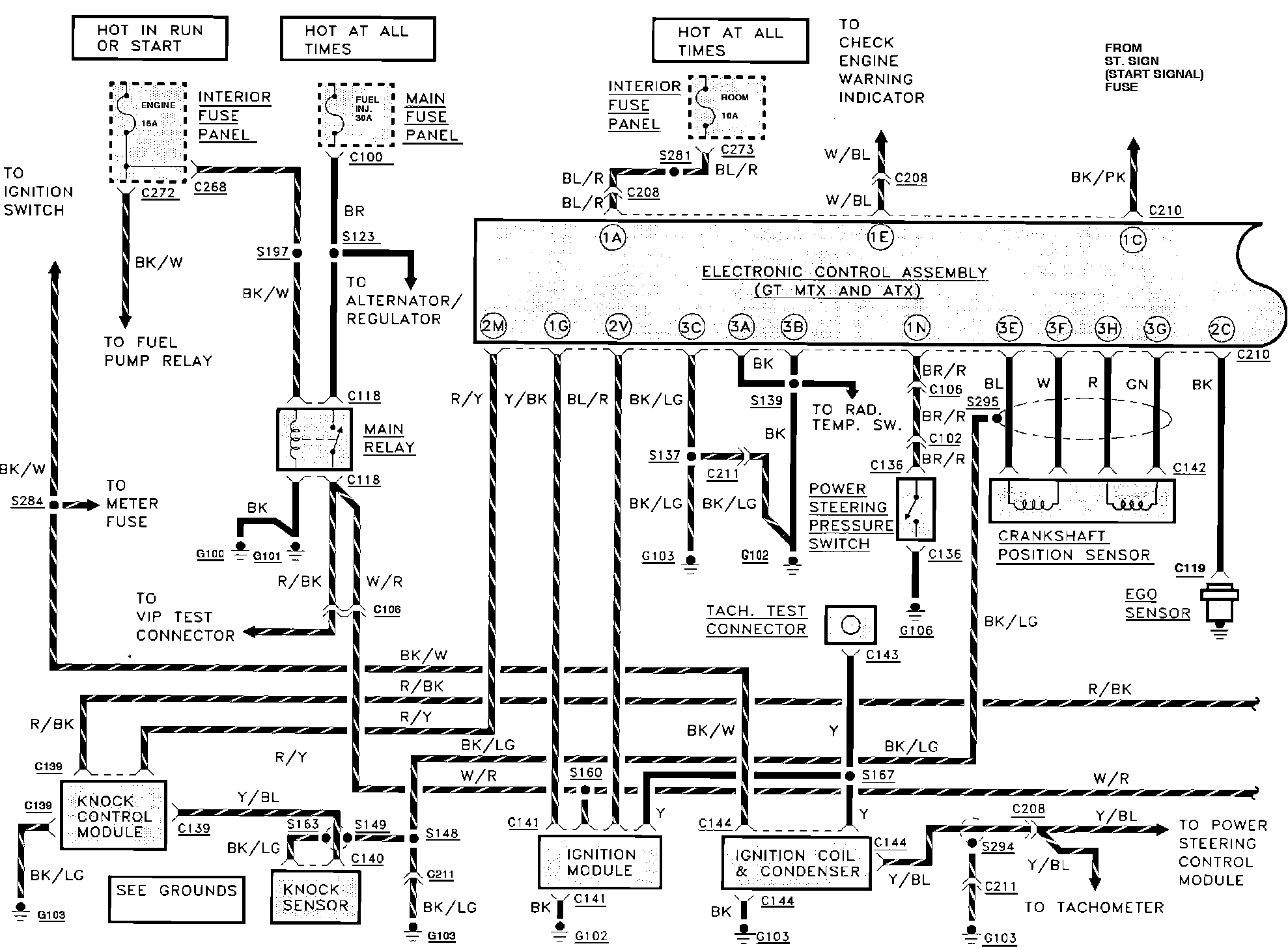

Engine Controls - GT Models:

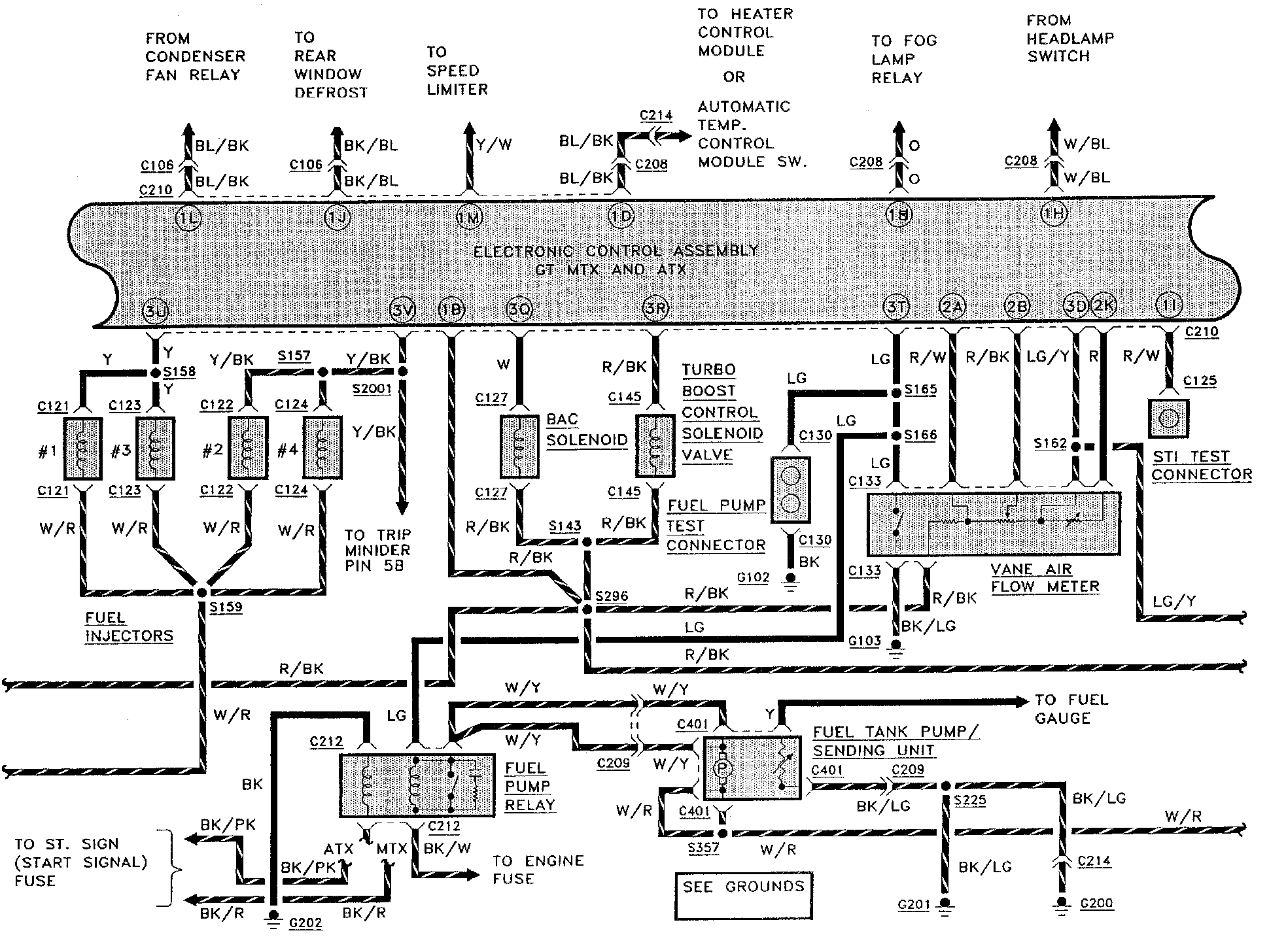

Engine Controls - GT Models:
