TP - Throttle Position Sensor
>>

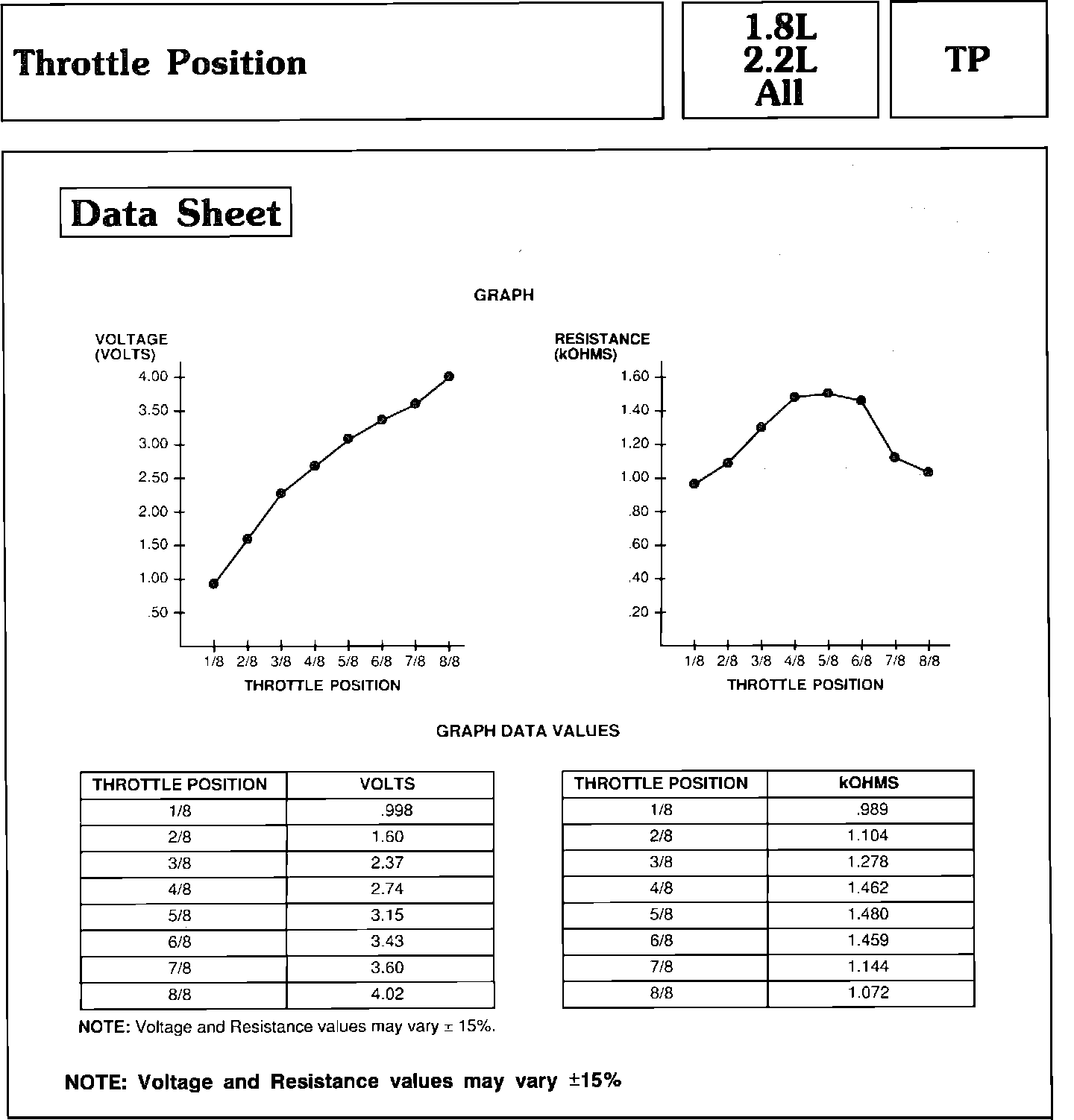

TP - Data Sheet
TP - Data Sheet
Pinpoint Test TP - Throttle Position:
