Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> DH - Throttle Position (TP) Sensor >> DH1

DH1

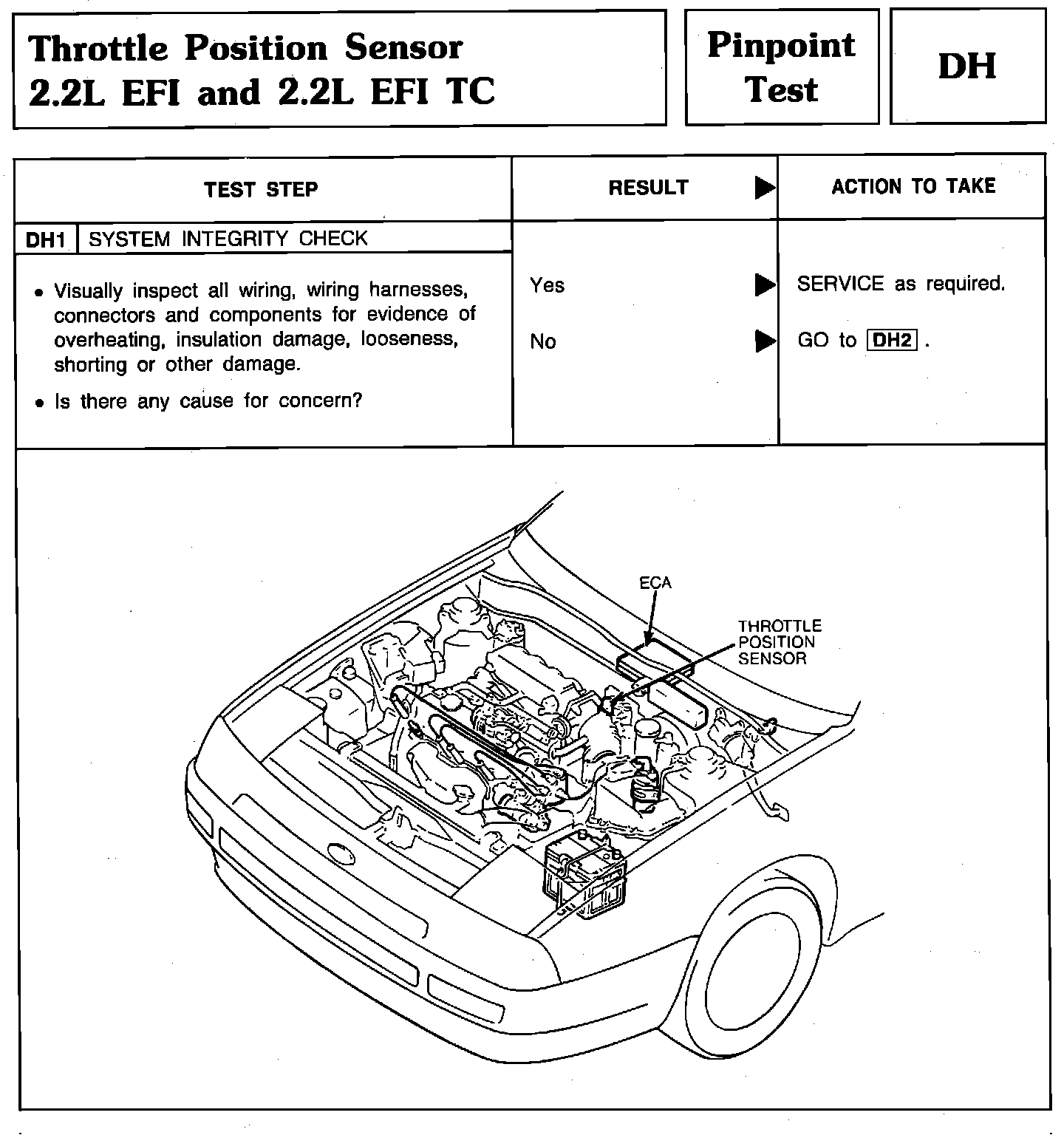

Pinpoint Test DH1 - Throttle Position Sensor:
