Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Electronic Climate Control
Electronic Climate Control

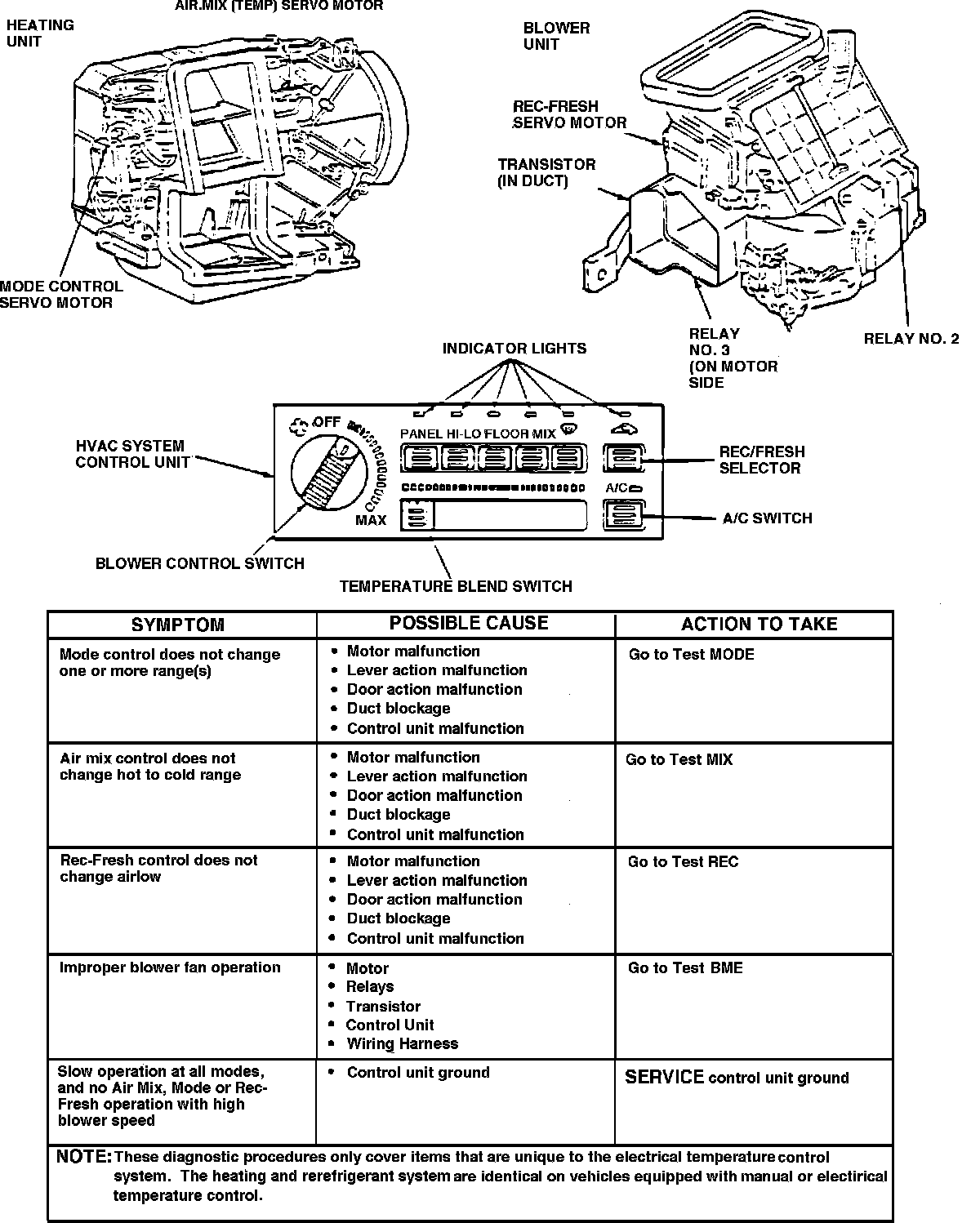

Fig. 38 System Symptom Menu:
