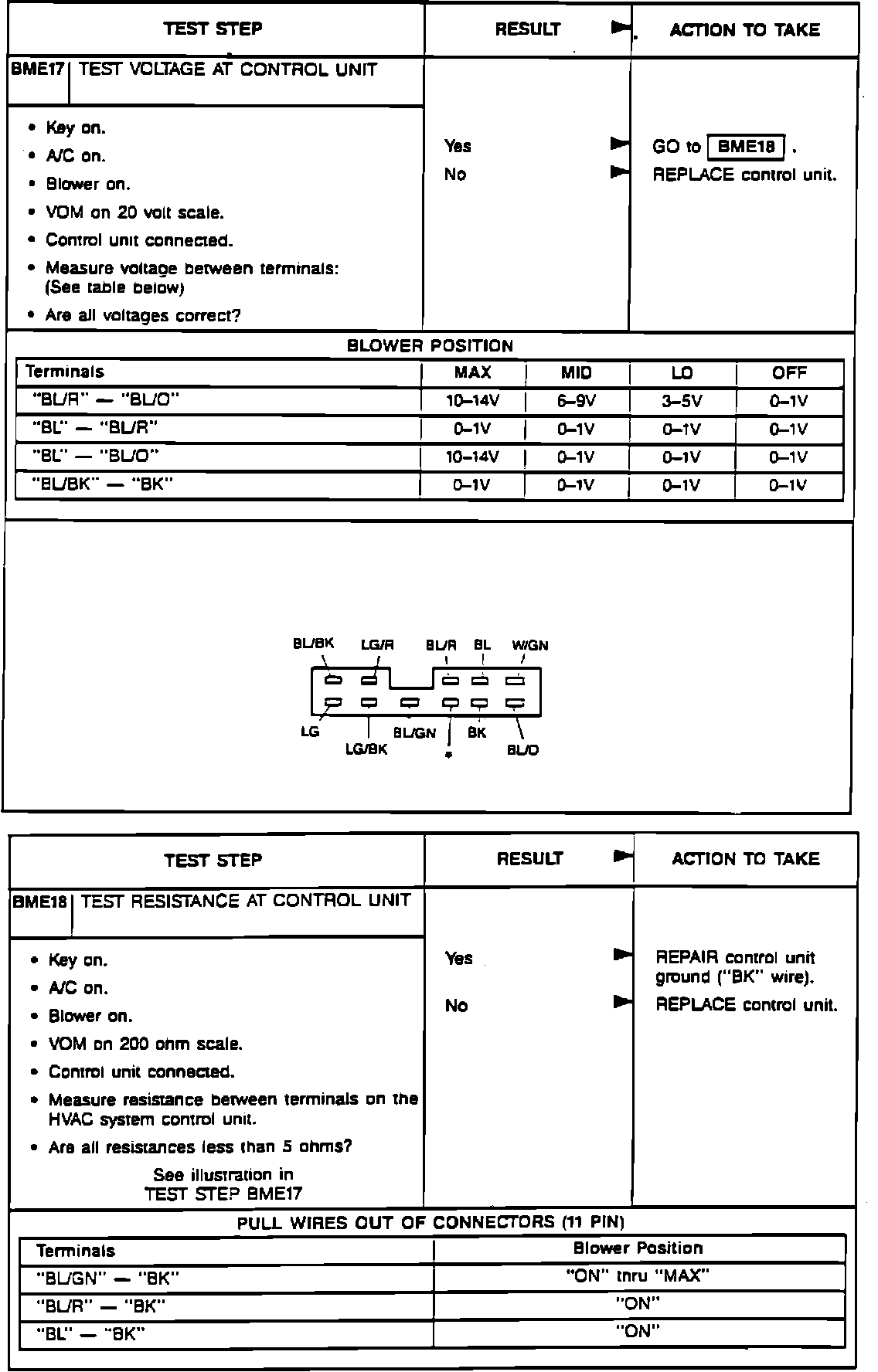

BME18 - Test Resistance At Control Unite, W/ ATC
BME18 - Test Resistance At Control Unite, W/ ATC
Fig. 39j Blower Motor Diagnosis:
