Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

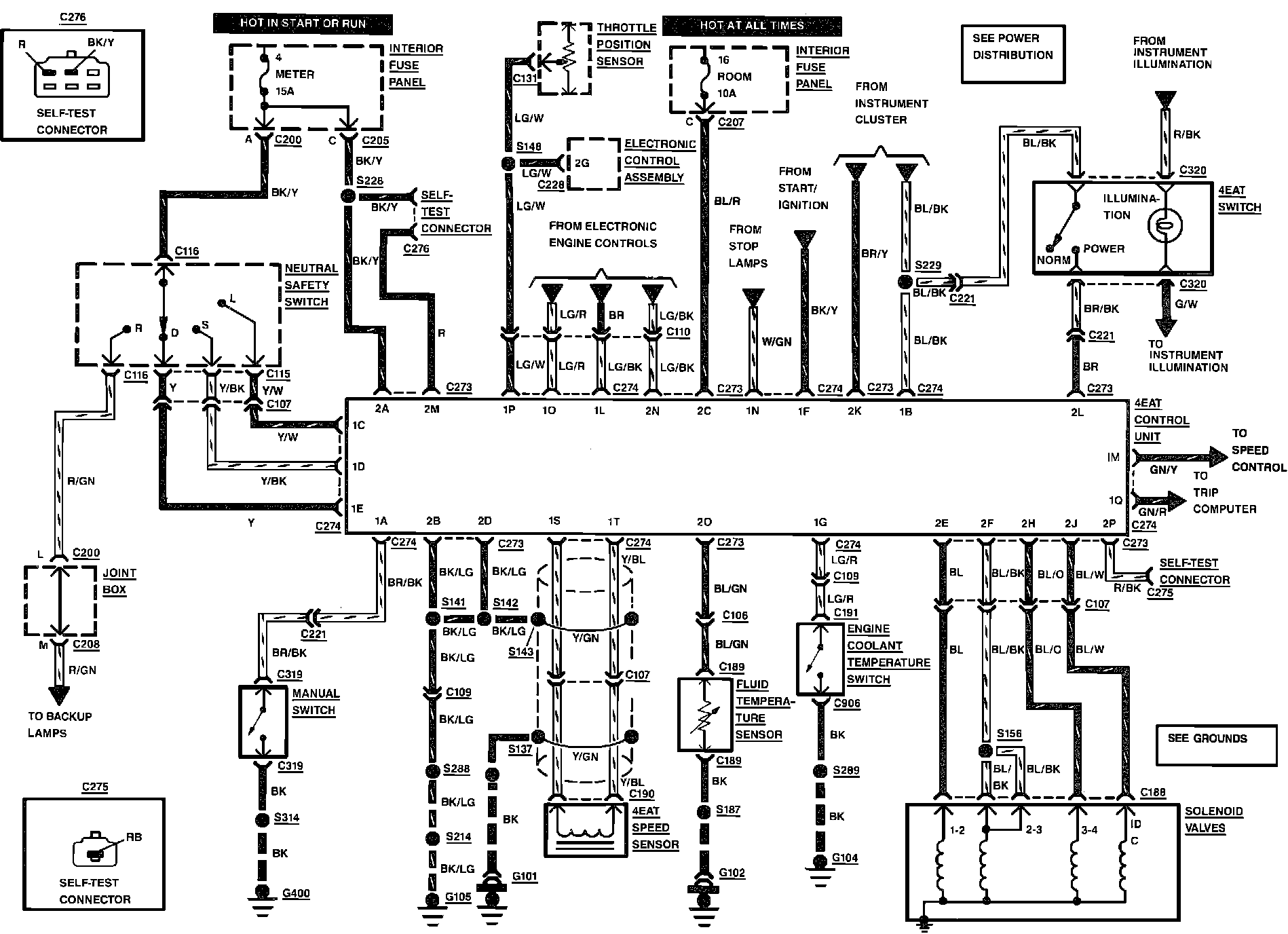

4EAT Automatic Transaxle Control Wiring Circuit:
