Headlamp Control Module

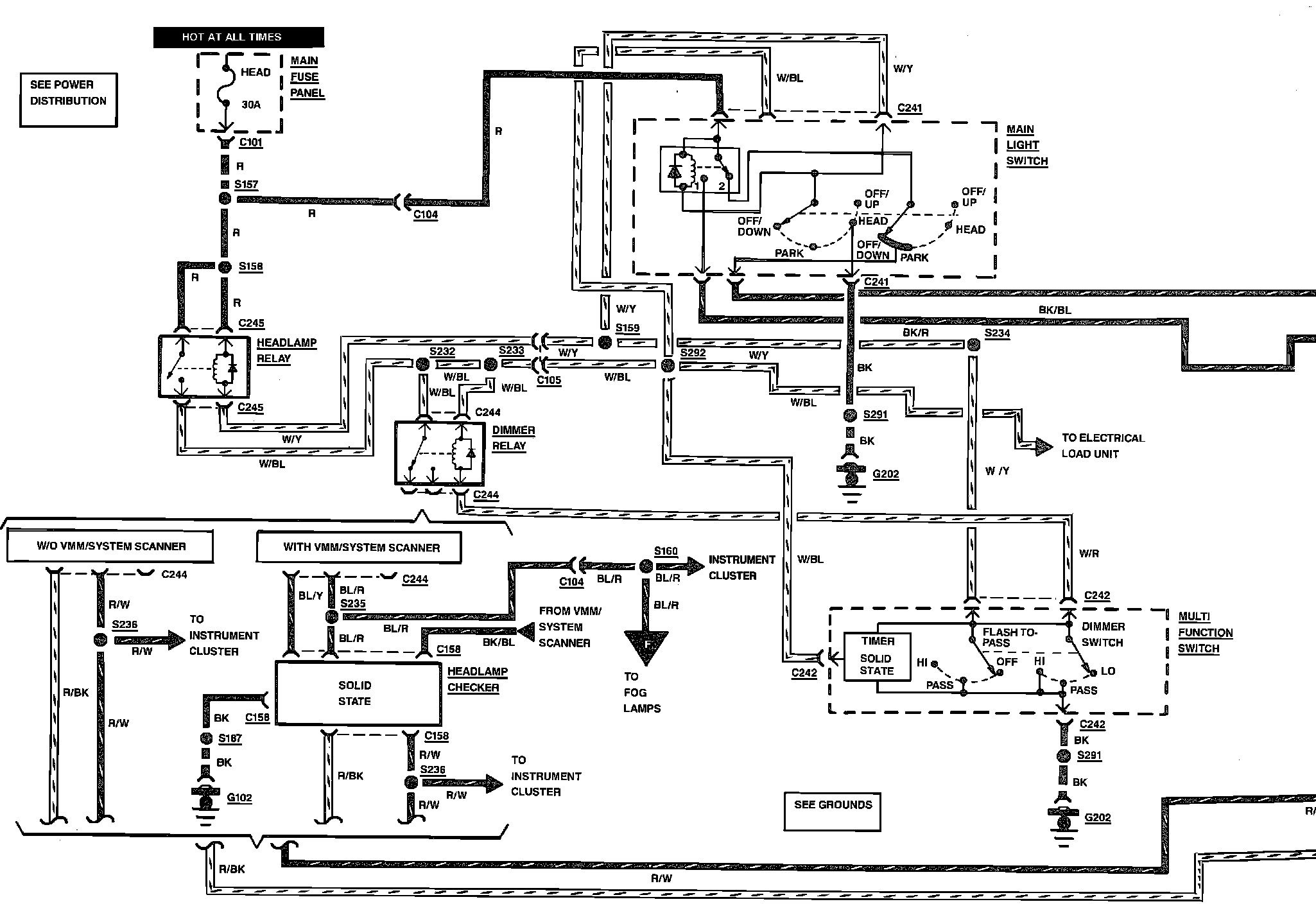

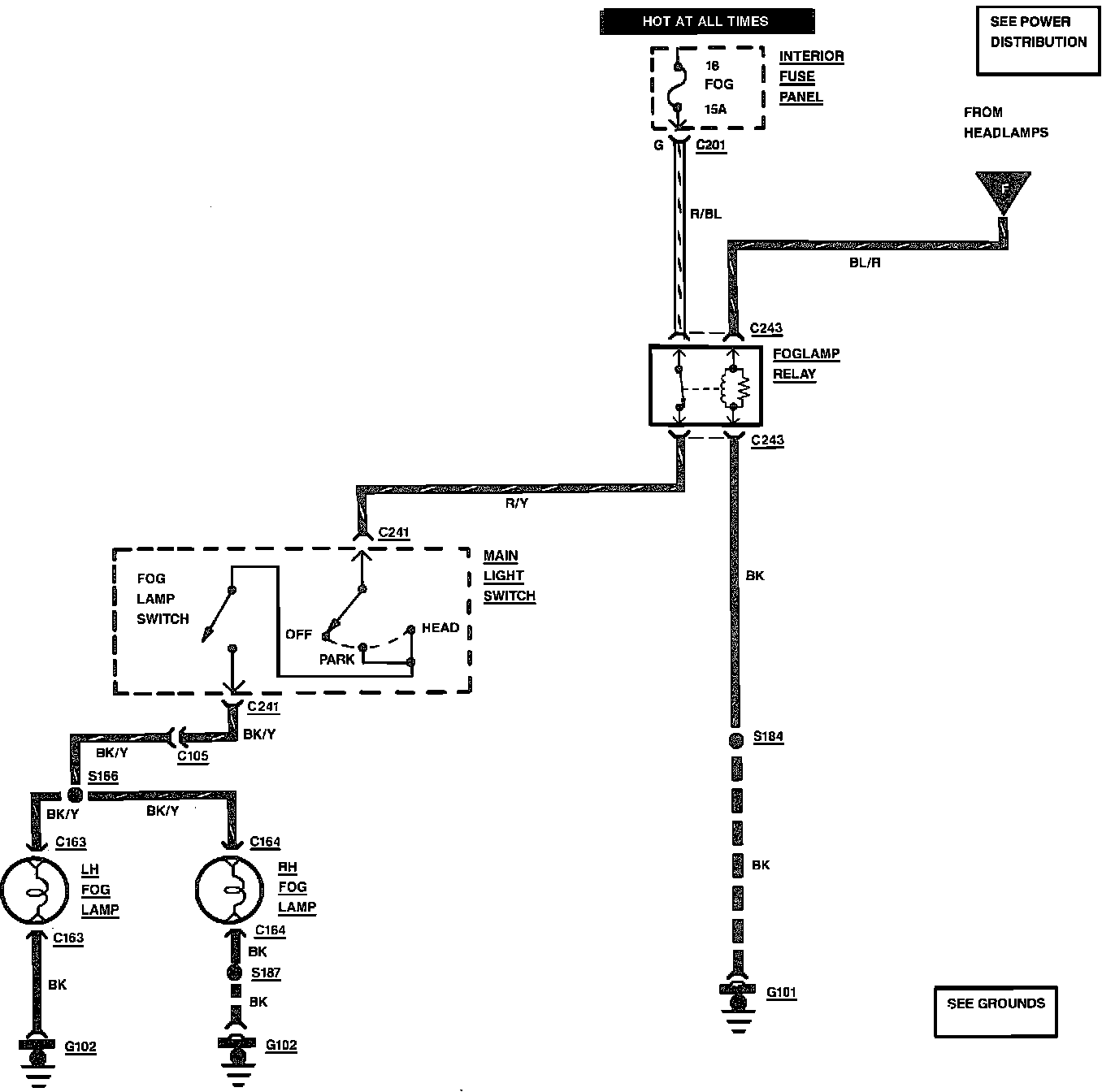

Fog Lamps & Headlamps Wiring Circuit:



���Fog Lamps & Headlamps Wiring Circuit:
