Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Testing and Inspection >> SP7 - Actuator Check (Non-Turbo)

SP7 - Actuator Check (Non-Turbo)

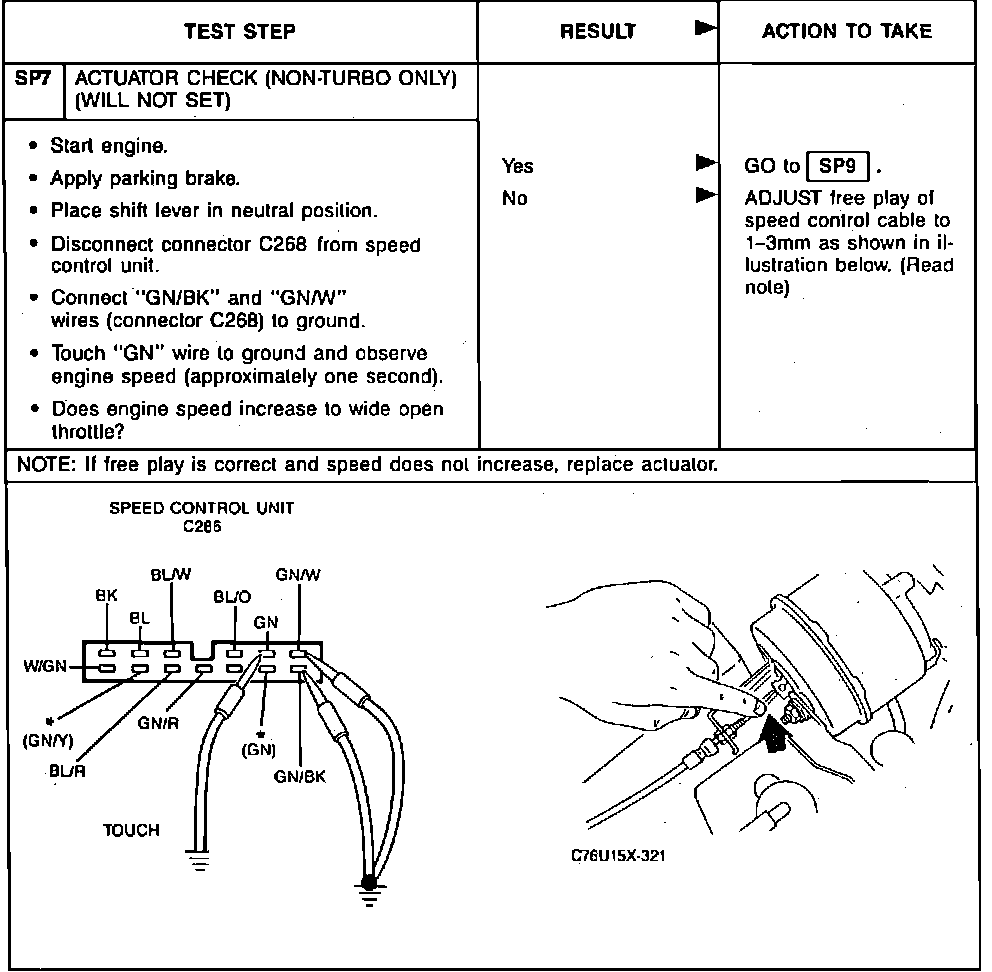

Fig. 77 Diagnosis and Testing (Part 7 Of 30):
