Ford
>>
1985
>>
Tempo L4-122 2.0L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Control Module
>>
With A/C
With A/C

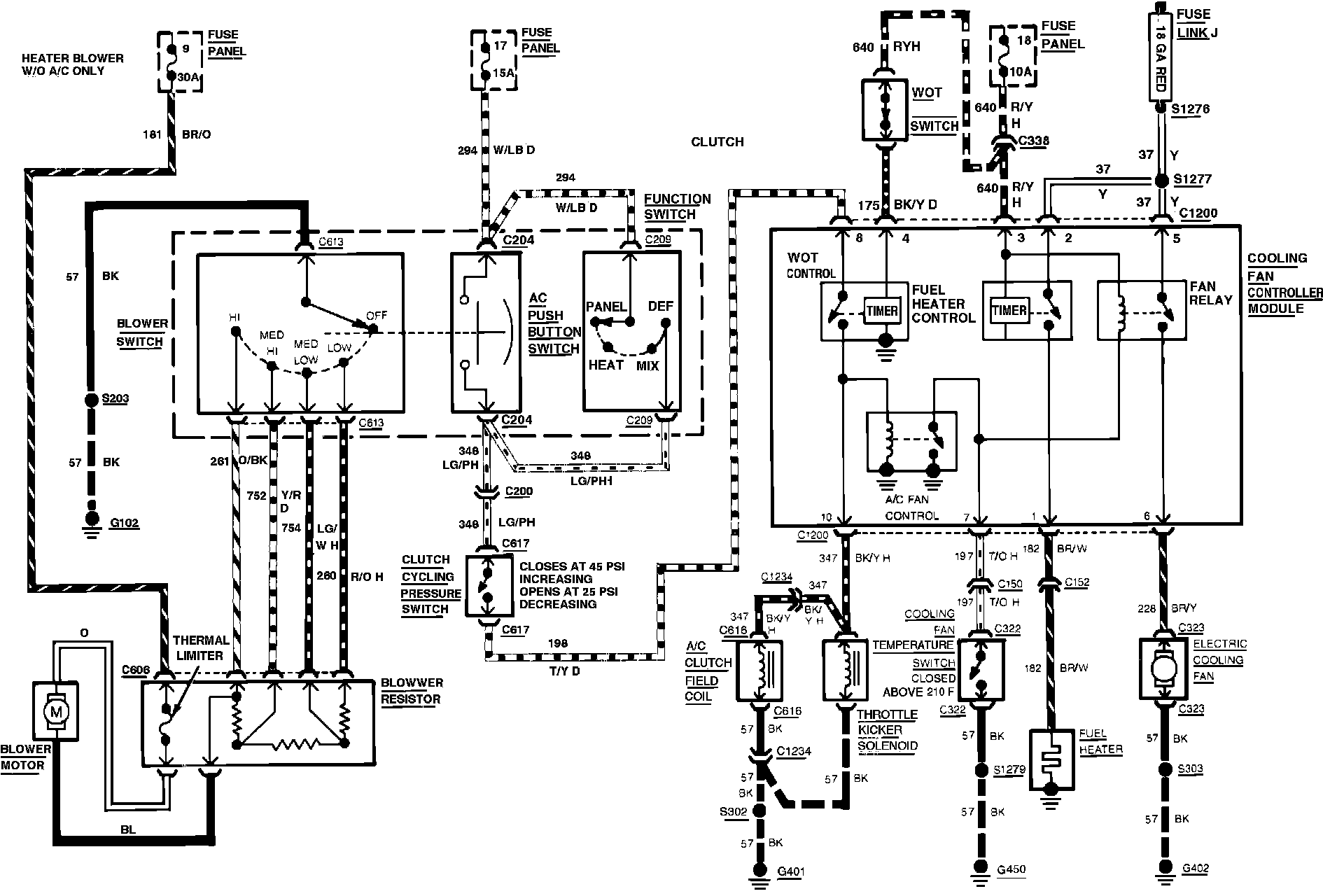

Air Conditioning Cooling Fan Wiring Circuit:
