Rear Suspension

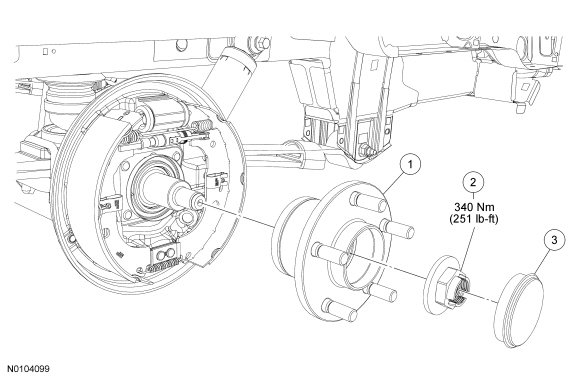

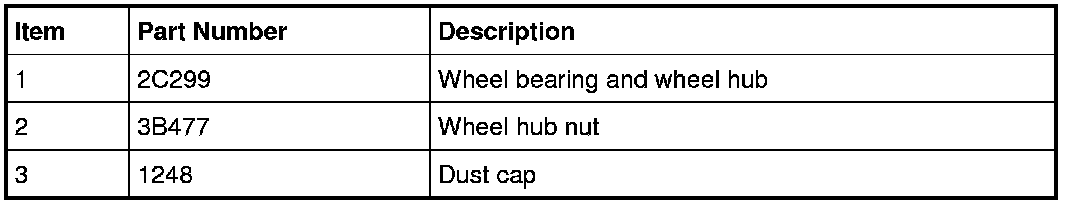

Wheel Bearing and Wheel Hub









Removal and Installation

1. Remove the brake drum.

2. Remove the dust cap.

3. Remove and discard the wheel hub nut.
- To install, tighten the new nut to 340 Nm (251 lb-ft).


4. Remove the wheel bearing and wheel hub.

5. To install, reverse the removal procedure.
