Ford Truck
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

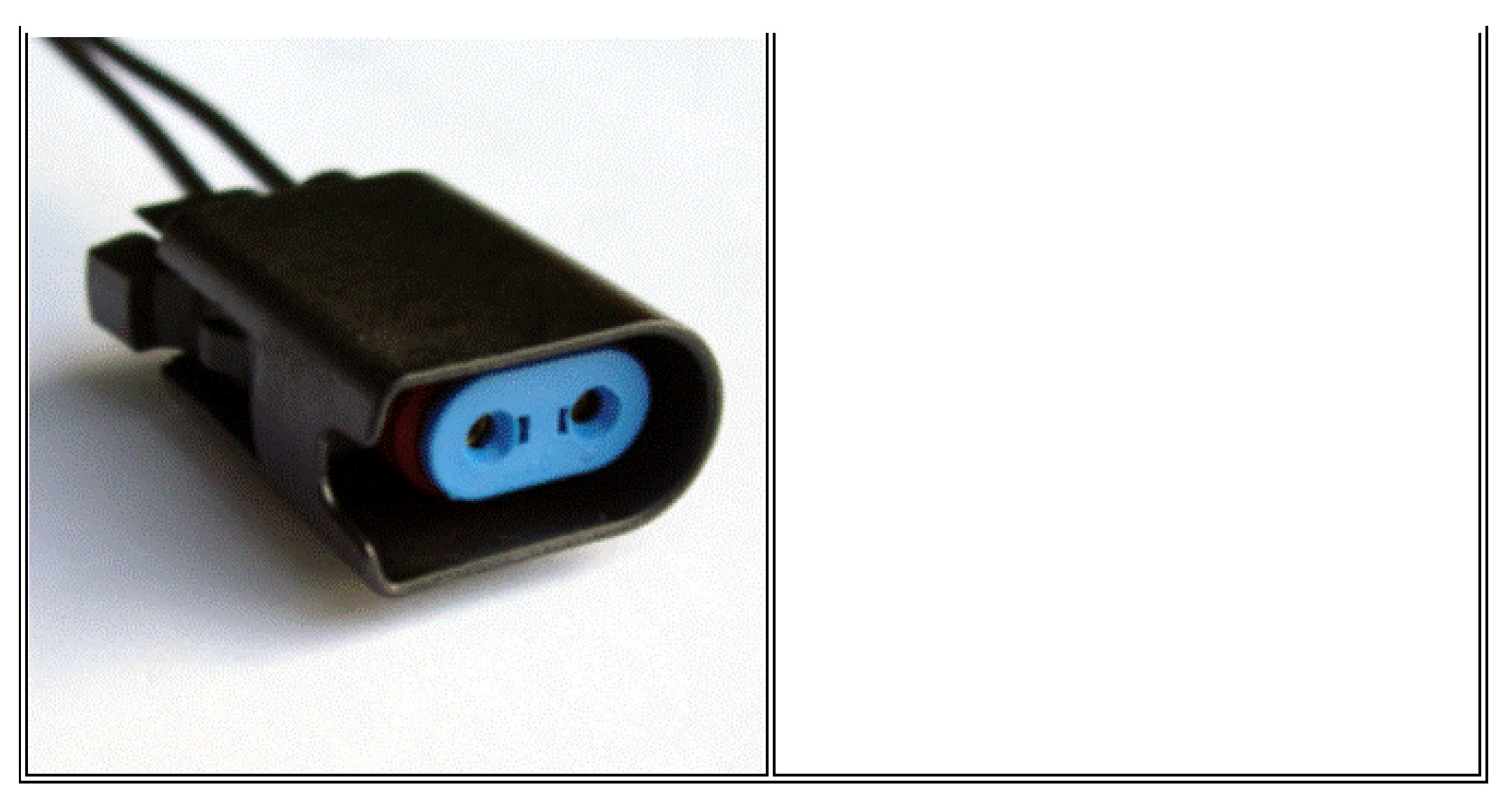

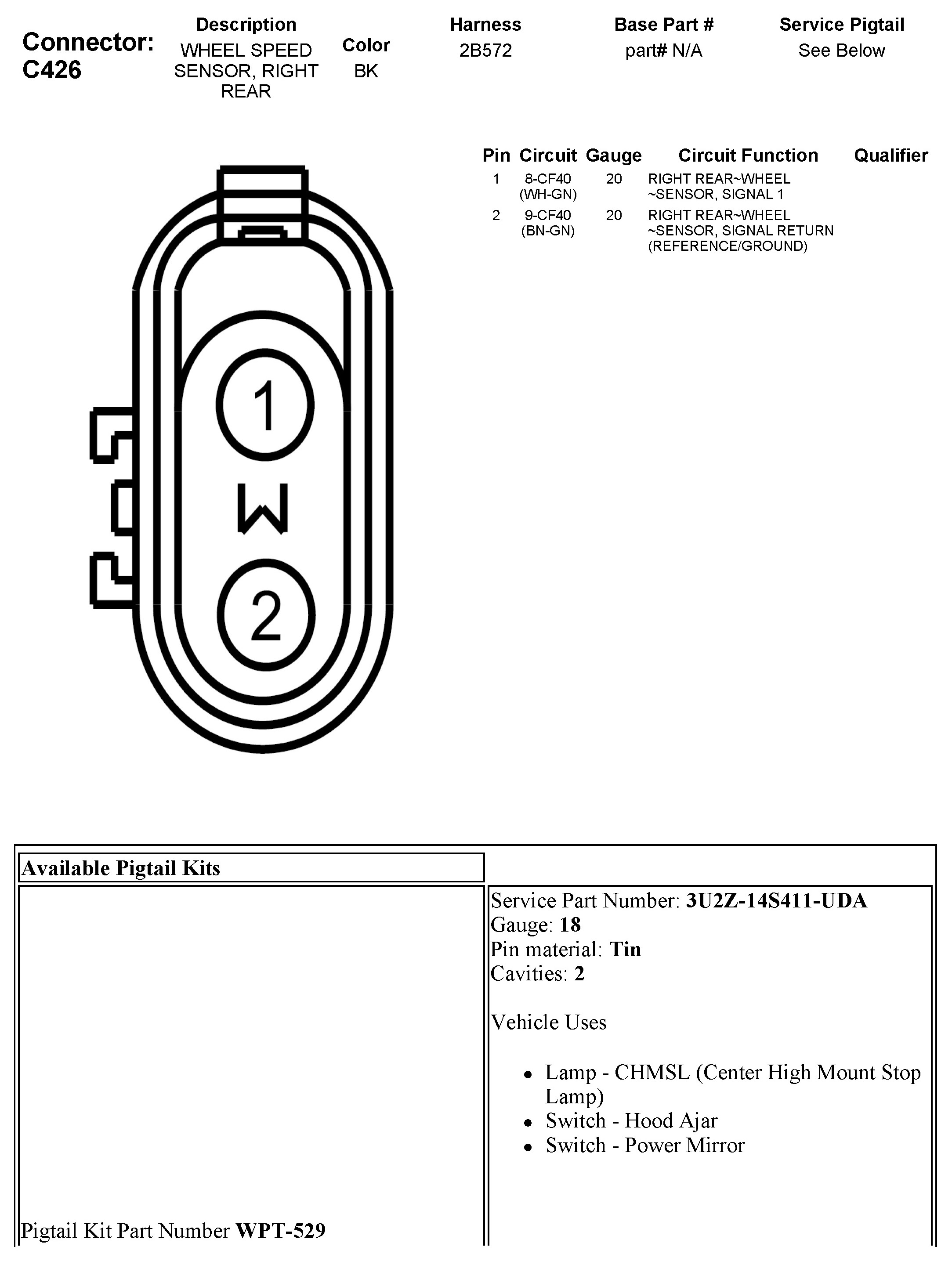

C426 Wheel Speed Sensor, Right Rear
C426 Wheel Speed Sensor, Right Rear
