Heated Glass Element
>>
System Diagram
>>

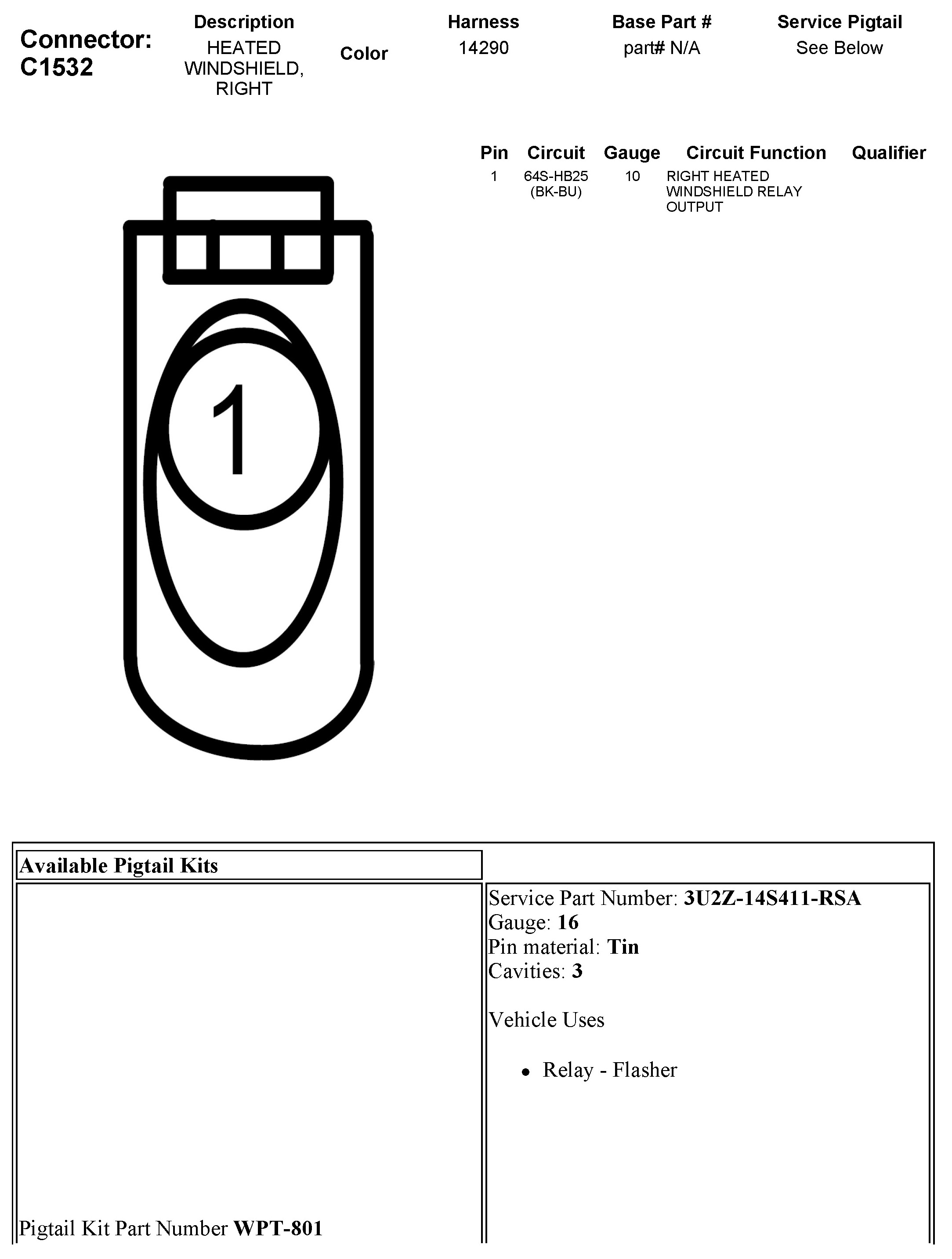

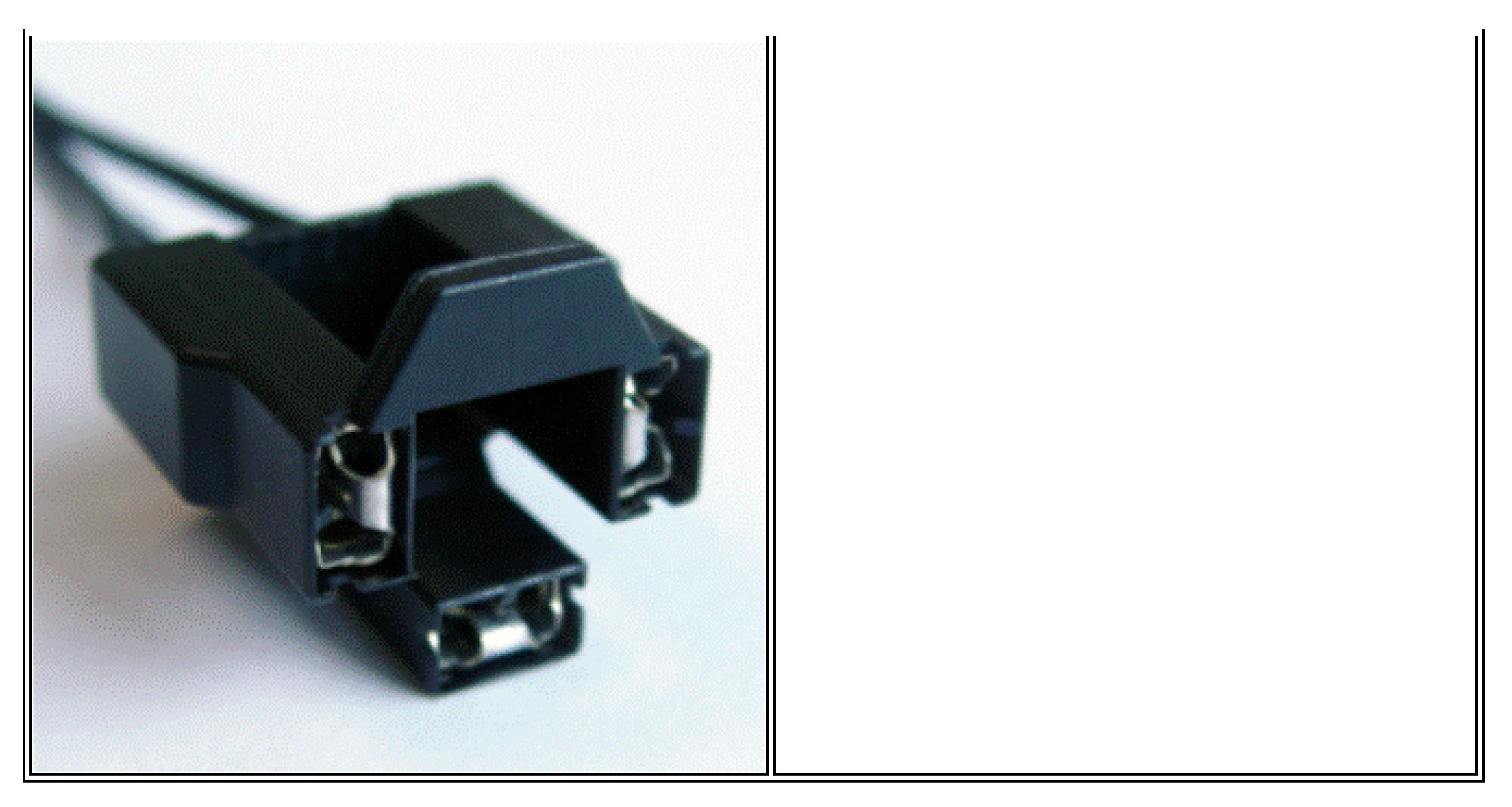

C1532 Heated Windshield, Right
C1532 Heated Windshield, Right
